10hp 7.5kw All In One Screw Air Compressor With Air Tank

The combined screw air compressor is convenient for users to install, use and move. After the air passes through the integrated system, the air quality will be greatly improved to meet the technological requirements of various enterprises.

Item No.:
SGAT 08

Product Details

Integrated Type Screw Air Compressor

7.5kw All In One Screw Air Compressor

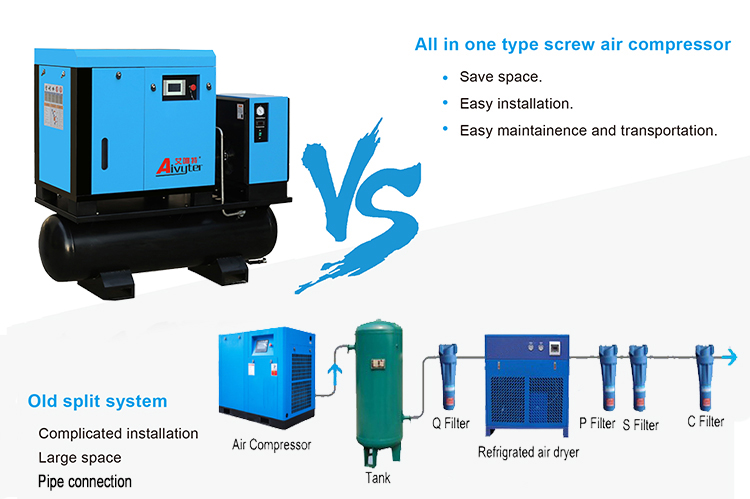

1. Integrated design products
(1) Fewer parts and connectors, reducing the possibility of unit failure and leakage;
(2) The integrated piping system greatly reduces pressure loss;
(3) Directly eliminate dry compressed air to fully guarantee the air quality of the user terminal;

(4) Save installation space，Integrate the compressor, dryer and filter into an energy-saving, optimized system;

2. High performance cold dryer

Adopting high-performance refrigeration and drying machines, R134A, R410A environmentally friendly refrigerants (commonly known as non-fluorine refrigerants) have beautiful appearance, compact structure and high-cooling capacity configuration scheme of rotary refrigeration compressors to ensure reliable operation under high temperature conditions.

Product Specifications:

Model	Motor Power	Working Pressure		Capacity		Air tank (L)	Air Outlet	Net Weight	Dimension (mm)	Start Method	Noise dB(A)
	kW/hp	psi	bar	cfm	m3/min			KGS	LWH
SGAT08	7.5/10	116	8	38.84	1.1	350	G1/2''	350	18507001460	Y-△	66±2
		145	10	32.00	0.90
SGAT11	11/15	116	8	52.97	1.5	350	G3/4’’	450	18507501640		68±2
		145	10	45.90	1.3
		174	12	38.84	1.1
SGAT15	15/20	116	8	81.00	2.3	350	G3/4"	450	18507501640		68±2
		145	10	74.00	2.1
		174	12	67.10	1.9
SGAT22	22/30	116	8	127.10	3.6	350	G1"	660	20508501780		68±2
		145	10	113.00	3.2
		174	12	95.30	2.7
SGAT08PM	7.5/10	116	8	39.00	1.1	350	G1/2''	350	18507001460	Frequency Conversion	66±2
		145	10	32.00	0.90
SGAT11PM	11/15	116	8	52.97	1.5	350	G3/4’’	450	18507501640		68±2
		145	10	45.90	1.3
		174	12	38.84	1.1
SGAT15PM	15/20	116	8	81.00	2.3	350	G3/4"	450	18507501640		68±2
		145	10	74.00	2.1
		174	12	67.10	1.9
SGAT22PM	22/30	116	8	127.10	3.6	350	G1"	660	20508501780		68±2
		145	10	113.00	3.2
		174	12	95.30	2.7

Company Information:

If you want to know our company information, please click Thank you.

FAQ

Q1: What's your lead time?
A1: usually, 5-7 days. (OEM orders: 15days)
Q2: What's the payment term?
A2: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q3: Do you accept customized voltage?
A3: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q4: What is your warranty for air compressor?
A4: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q5: Can you accept OEM orders?
A5: Yes, OEM orders are warmly welcome.
Q6: How about your customer service and after-sales service?
A6: 24hrs on-line support, 48hrs problem solved promise.
Q7: Do you have spare parts in stock?
A7: Yes, we do.
