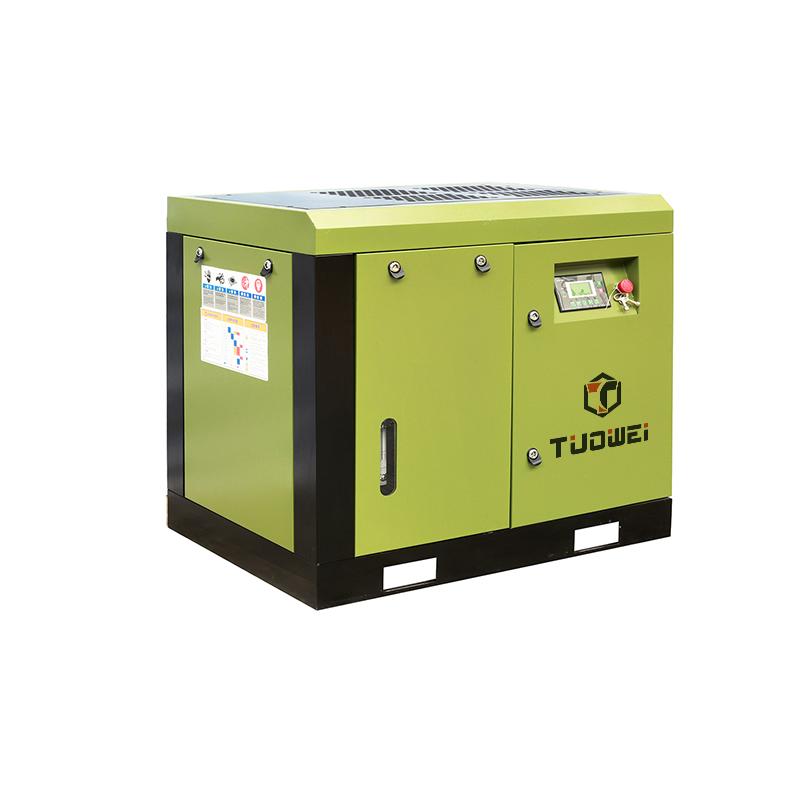

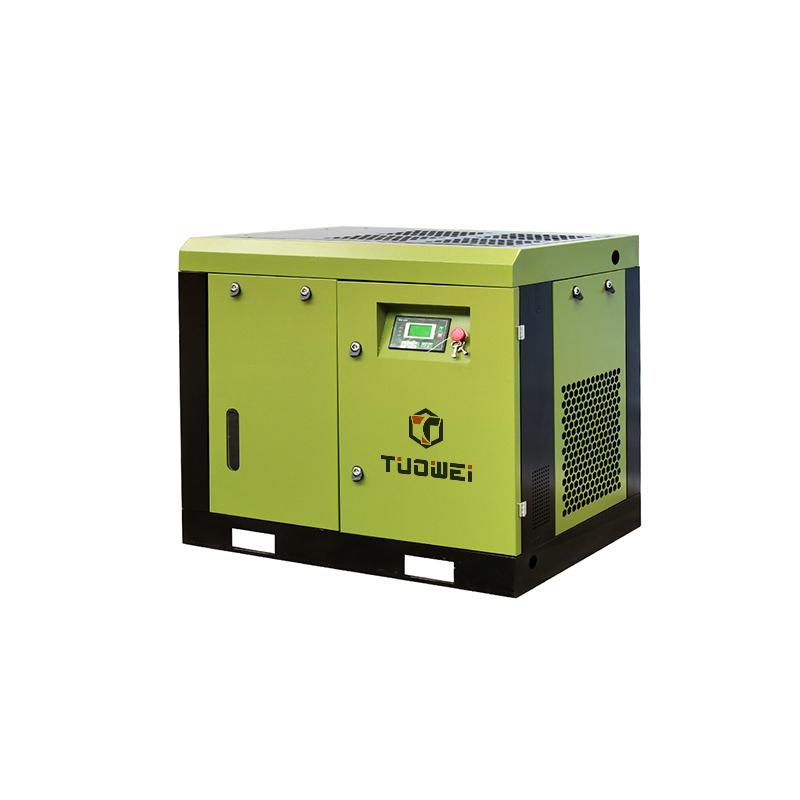

Aircompsupplier brand of SGD serial direct drive screw air compressor, with CE certificate, using BAOSI brand of air end (OEM orders of GHH and Hanbell brand of air end are also acceptable), with large rotor and SKF bearing, the simple and mature structure of air compressor makes failure rate lower, and also easily assembled and regularly maintain.
Item No.:
SGD 08Payment:
L/C , T/T , D/P , FOB,CIFProduct origin:
chinaColor:
according to your needsGoods_stock:
1000Shipping port:
guangzhouLead Time:

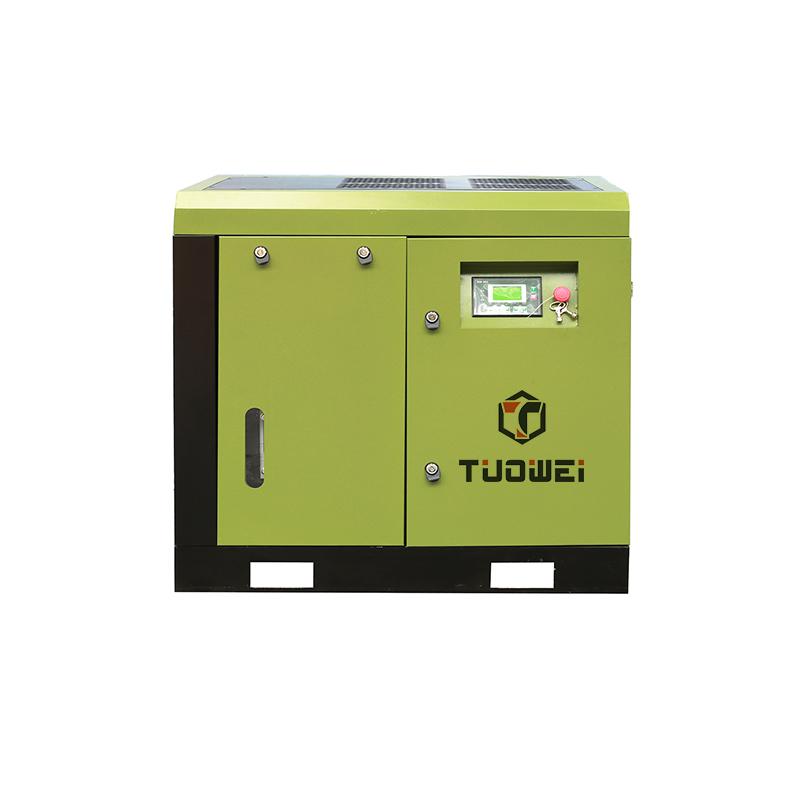

7~15 Day7.5Kw To 250 Kw Electric Direct Drive Rotary Screw Air Compressor

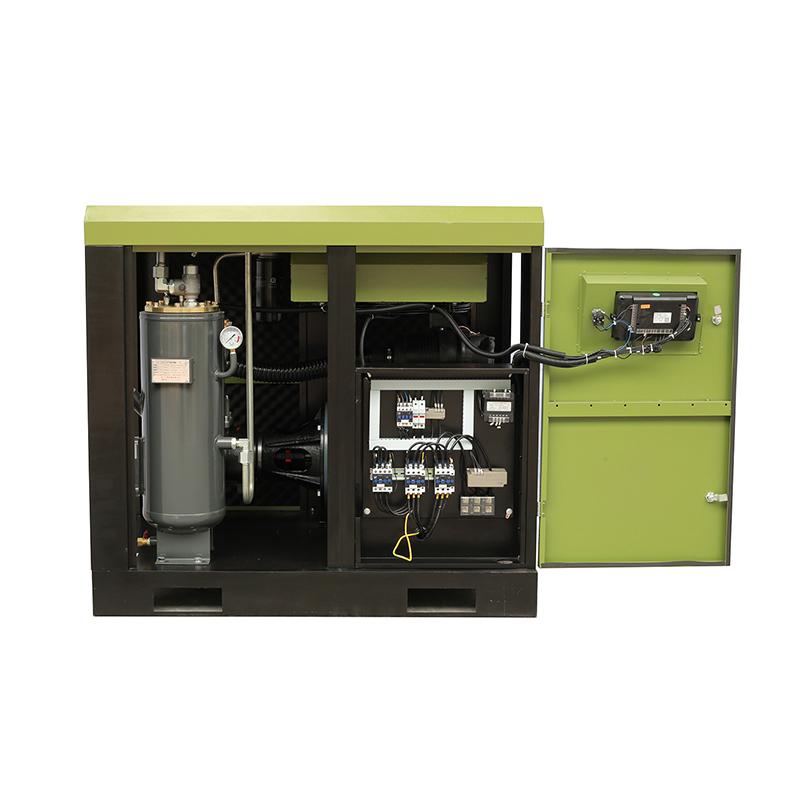

Product Details：
-Low Need for Maintenance:With fewer parts suffering little wear, single-stage rotary units offer cleaner and more reliable operation, significantly reducing maintenance needs.

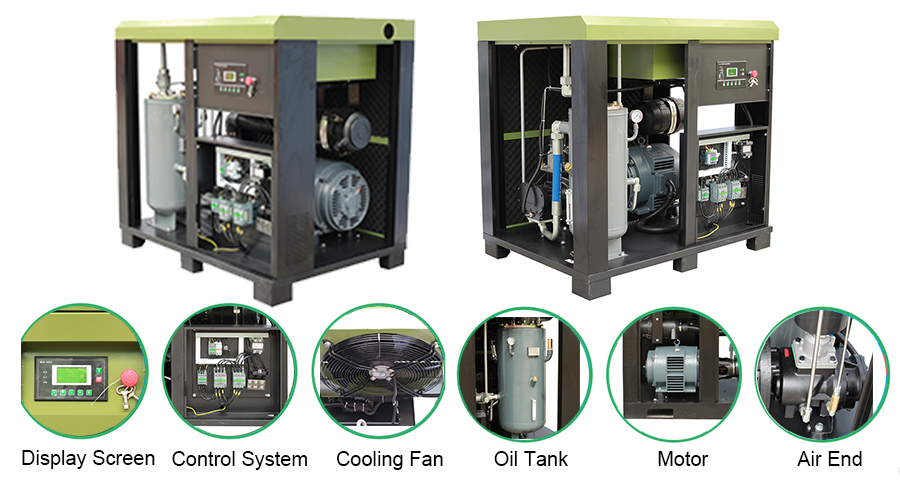

Display Screen
easy to operate and continuously working for 24 hours unattended, English and Russian languages for choosing, accept OEM.
Control System
using famous brands, like SIEMENS, Schneider, greatly improve the service life.
Oil filter
Adopting the superior materials, the oil filter shows better filtering function, to compare with others, and which extends the service life time of air end effectively.

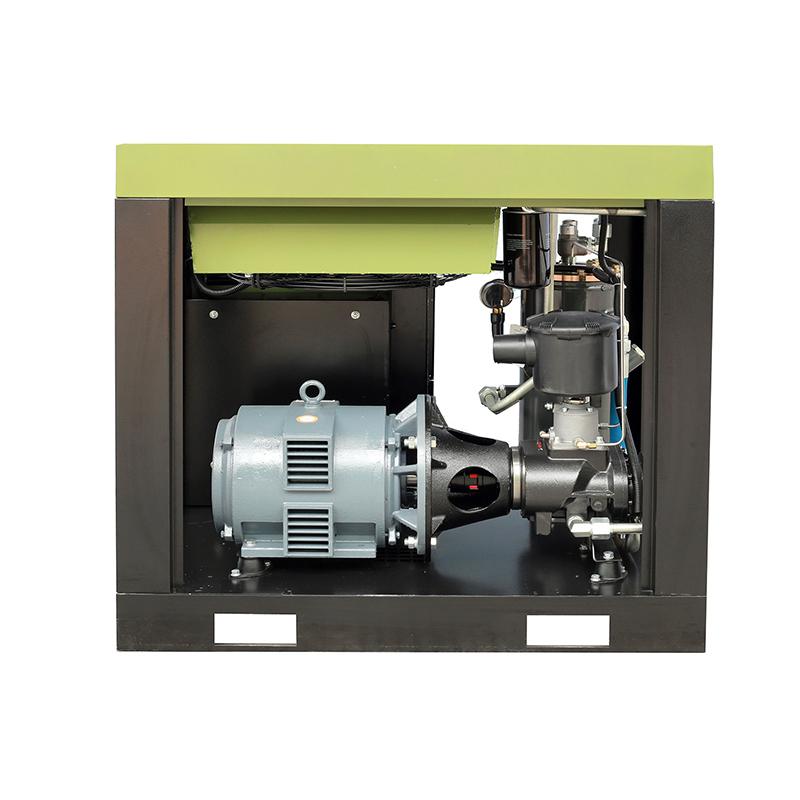

Motor
Well-known brand of high-performance electric motor, SKF bearing, high-class insulation, IP23 standard, IP54 for option.
Air End
The technology of air end is original from Europe, and made in China with superior technique, the powerful heart ensures good performance of the whole air compressor.
Product Parameter:
| Model | Working Pressure | Capacity | Motor Power |
Dimension
(mm)
|
Net Weight
(KGS)
|
Air Outlet Pipe Diameter | ||
| Psi | bar | Cfm | m3/min | kw/hp | ||||
| SGD08 | 102 | 7 | 42.4 | 1.2 | 7.5/10 | 900*670*850 | 200 | 1/2’’ |
| 116 | 8 | 38.8 | 1.1 | |||||
| 145 | 10 | 33.5 | 0.95 | |||||
| 174 | 10 | 28.3 | 0.8 | |||||
| SGD11 | 102 | 7 | 58.3 | 1.65 | 11/15 | 1080*750*1020 | 280 | 3/4’’ |
| 116 | 8 | 53 | 1.5 | |||||
| 145 | 10 | 45.9 | 1.3 | |||||
| 174 | 12 | 38.8 | 1.1 | |||||
| SGD15 | 102 | 7 | 88.3 | 2.5 | 15/20 | 1080*750*1020 | 300 | 3/4’’ |
| 116 | 8 | 81.2 | 2.3 | |||||
| 145 | 10 | 74.2 | 2.1 | |||||
| 174 | 12 | 67.1 | 1.9 | |||||
| SGD18 | 102 | 7 | 113 | 3.2 | 18.5/25 | 1380*850*1185 | 430 | 1’’ |
| 116 | 8 | 105.9 | 3 | |||||
| 145 | 10 | 95.3 | 2.7 | |||||
| 174 | 12 | 84.7 | 2.4 | |||||
| SGD22 | 100 | 7 | 134.2 | 3.8 | 22/30 | 1380*850*1185 | 450 | 1’’ |
| 116 | 8 | 127.1 | 3.6 | |||||
| 145 | 10 | 113 | 3.2 | |||||
| 174 | 12 | 95.3 | 2.7 | |||||
| SGD30 | 102 | 7 | 187.1 | 5.3 | 30/40 | 1380*850*1185 | 500 | 1’’ |
| 116 | 8 | 176.6 | 5 | |||||
| 145 | 10 | 158.9 | 4.5 | |||||
| 174 | 12 | 141.2 | 4 | |||||
| SGD37 | 102 | 7 | 240.1 | 6.8 | 37/50 | 1500*1000*1345 | 650 | 11/2" |
| 116 | 8 | 218.9 | 6.2 | |||||
| 145 | 10 | 197.7 | 5.6 | |||||
| 174 | 12 | 176.6 | 5 | |||||
| SGD45 | 102 | 7 | 261.3 | 7.4 | 45/60 | 1500*1000*1345 | 680 | 11/2" |
| 116 | 8 | 247.2 | 7 | |||||
| 145 | 10 | 218.9 | 6.2 | |||||
| 174 | 12 | 197.7 | 5.6 | |||||
| SGD55 | 102 | 7 | 353.1 | 10 | 55/75 | 1800*1250*1670 | 1150 | 2" |
| 116 | 8 | 339 | 9.6 | |||||
| 145 | 10 | 300.1 | 8.5 | |||||
| 174 | 12 | 268.4 | 7.6 | |||||
| SGD75 | 102 | 7 | 473.2 | 13.4 | 75/100 | 1800*1250*1670 | 1200 | 2" |
| 116 | 8 | 444.9 | 12.6 | |||||
| 145 | 10 | 395.5 | 11.2 | |||||
| 174 | 12 | 353.1 | 10 | |||||
| Motor Protection Class: IP23/IP54/IP55 or as per your required | ||||||||
| Voltage: 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests. | ||||||||
Company Information：
FAQ
Q1: What is the rotor speed for the air end?
A1: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
