11kW 15HP 16bar Combined Rotary Screw Air Compressor with Dryer, Air Tank for Laser Cutting Machines Use

11kW 15HP 16bar Combined Rotary Screw Air Compressor with Dryer, Air Tank for Laser Cutting Machines Use

11kW-22kW 16bar 4 in 1 series of combined screw air compressor, it includes screw air compressor, air tank, air dryer and 4pcs precision filters.

  • Brand:

    Tuowei
  • Item No.:

    SGAT 11
  • Payment:

    L/C , T/T , D/P , FOB,CIF
  • Product origin:

    china
  • Color:

    green or according to your needs
  • Product weight:

    300kg
  • Shipping port:

    Shenzhen
  • Lead Time:

    7~15 Day
  • Product Details

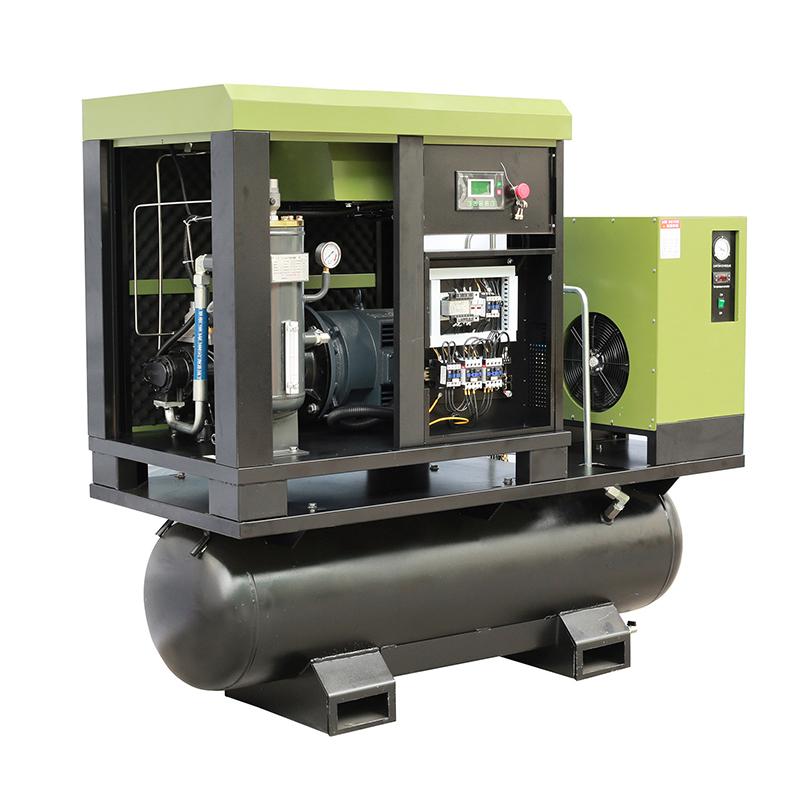

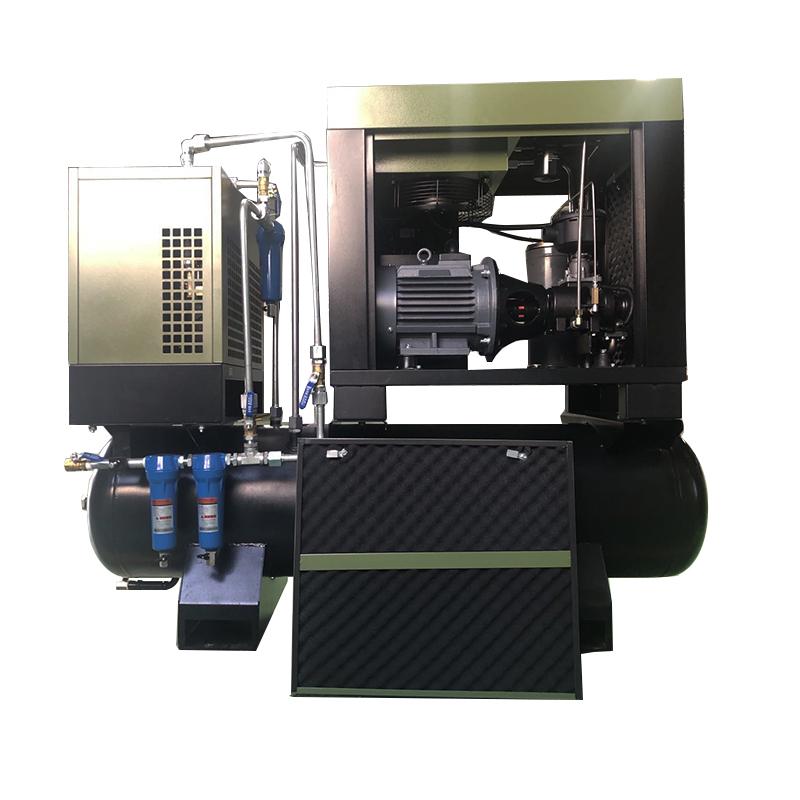

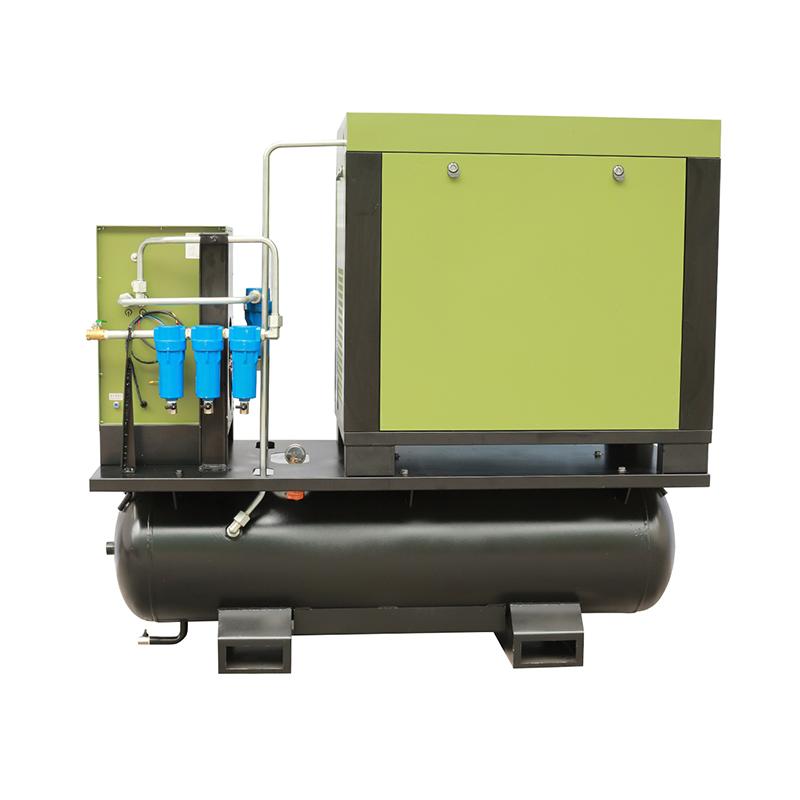

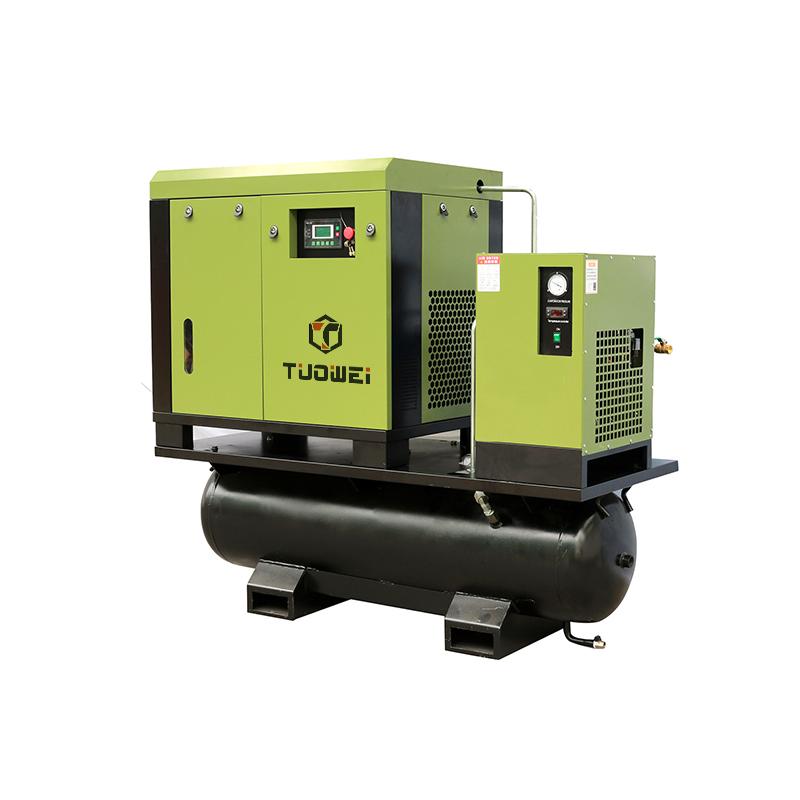

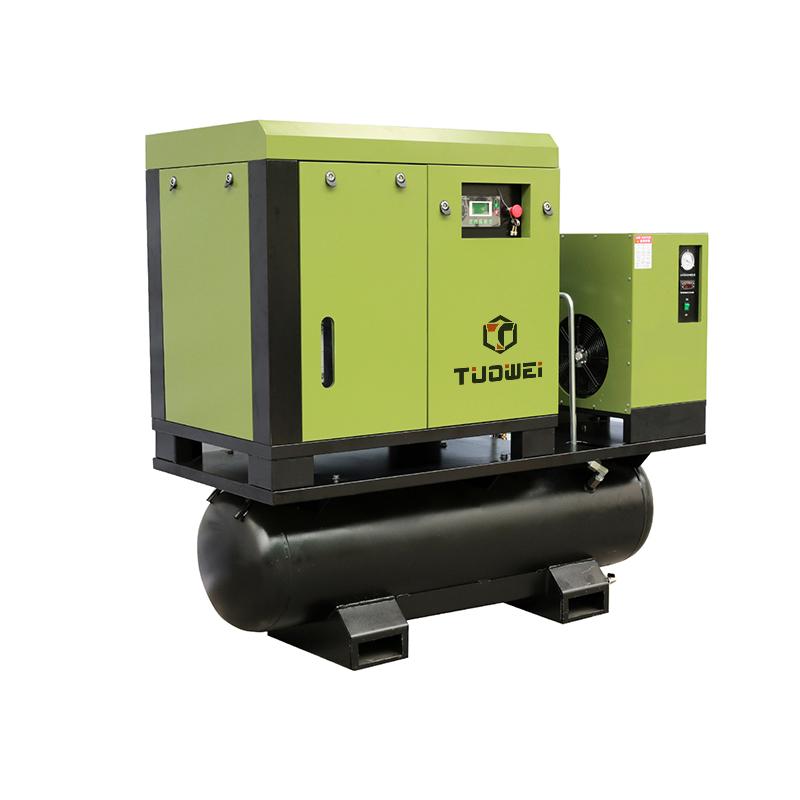

All in One Combined Rotary Screw Air Compressor


Combined screw air compressor is with integrated air dryer, air tank and filters, which provides clear compressed air to meet different industrial use.


1.Easy to operate with intelligent control panel.
2.No need of installation, just connect to power supply and then start the machine.
3.Very compact structure, save transportation cost.
4.Energy saving with frequency conversion start-up model for option.
5.Optimized piping system without compressed air leaking and pressure drop.
6.Pressure range from 8-16bar, power range from 7.5kW-22kW
7.OEM orders are acceptable.
8.Color: green, blue or customized.

Model Motor Power Air flow Pressure Lubrication oil Tank Volume Weight Dimension Noise Level Power supply
(KW) (HP) (m3/min) (CFM) (Mpa) (L) (L) (KG) (mm) dB(A) (V/PH/HZ)
SGAT08 7.5 10 1.1 39 0.8 9.5 300 300 1850*700*1460 68±2 380/3/50
SGAT11 11 15 1.5 53 0.8 9.5 300 300 1850*750*1640 68±2 380/3/50
0.9 32 1.6
SGAT15 15 20 2.3 81 0.8 9.5 300 300 1850*750*1640 68±2 380/3/50
1.5 53 1.6
SGAT22 22 30 3.6 127 0.8 13.5 300 600 2050*850*1780 68±2 380/3/50
2.1 74 1.6

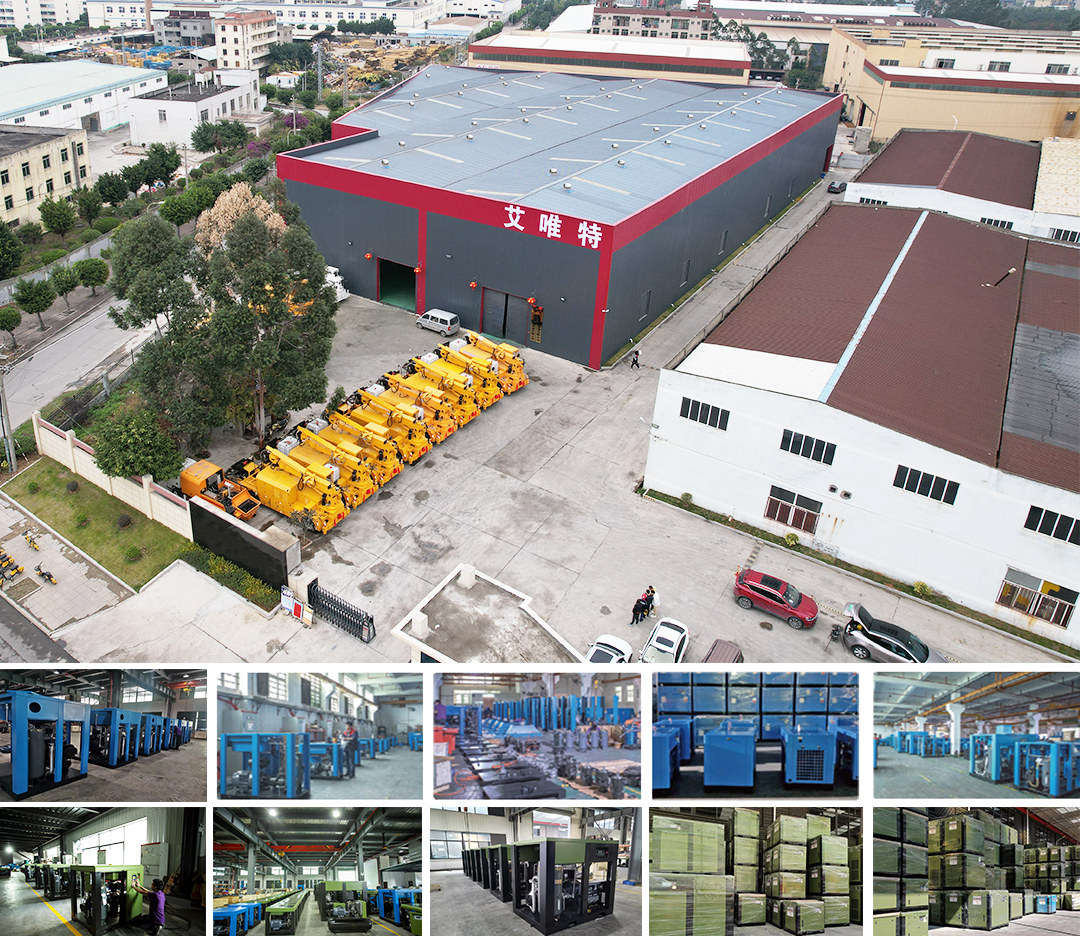

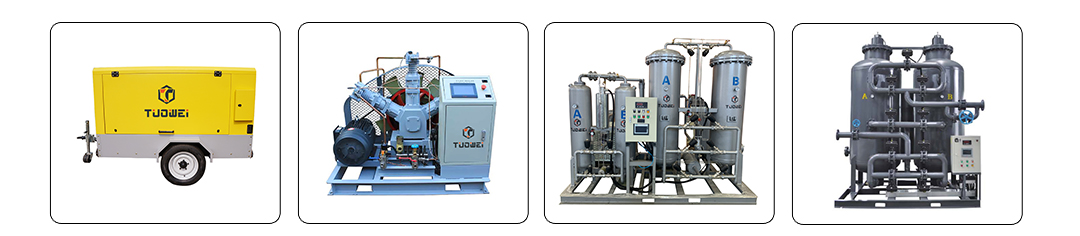

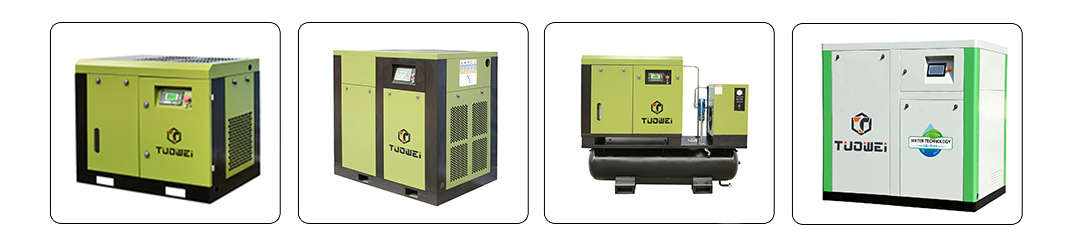

Company established in 2010, is a professional enterprise engaged in the research, development, sale and service of screw air compressor, oil free screw air compressor, air dryer, air tank, filters, air compressor spare parts, PSA oxygen generator, PSA nitrogen generator, booster compressor and construction machinery. Located in Fuzhou, China.





Q1: What is the rotor speed for the air end?
A1: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.








Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

related products
25 hp rotary screw air compressor
18.5KW 25 HP Industrial Air Compressor for Sale

The 18.5KW 25 HP Industrial screw air compressor adopts Bowes, hanbell, GU and other brands airend more safe, more efficient, more energy saving. Screw type air compressor adopts high wind volume heat dissipation structure, which greatly prolongs the service life of the machine.

oxygen booster pump
in Stock High Pressure Oil Free 150 200 Bar Oxygen Compressor Oxygen Booster Pump

The oil-free oxygen compressor is especially suitable for medical oxygen compression and oxygen cylinder filling. The biggest advantage of this series is safety and reliability. 100% oil-free, that is, the whole machine is completely oil-free. No pollution to the compressed medium, simple control, automatic working system, no leakage, and convenient maintenance are the reasons why customers choose.

93% Purity Oxygen Generator
93% Purity Industrial PSA Oxygen Generator Oxygen Gas Production Plant with Low Cost

Our company specializes in designing and selling PSA oxygen generators. PSA oxygen generators can be widely used in steel cutting, oxygen-enriched combustion, hospital oxygen, glass production, papermaking and other industries and fields. Different users in different industries use different oxygen. Requirements, provide personalized and professional oxygen production equipment to fully meet the gas requirements of different users. Pressure swing adsorption oxygen production equipment (it has the advantages of low equipment cost, small size, light weight, simple operation, convenient maintenance, low operating cost, fast on-site oxygen production, convenient switching, and pollution-free). It can be suitable for steel cutting, rich Oxygen-assisted combustion, hospital oxygen, etc.) and cryogenic oxygen equipment (high purity of oxygen, long service life of the equipment, can produce nitrogen, oxygen, argon at the same time, suitable for oxygen station construction, hospital oxygen, smooth cutting of steel).

elgi screw compressor
90kw 120hp VSD Rotary Screw Air Compressor

90kw 120hp Permanent Magnet Variable Frequency  VSD Rotary Screw Air Compressor Widely used in industrial fields,instrument control,printing,paper,petrochemical,electronics,automobile manufacturing,furniture manufacturing,garment processing,nitrogen production,and air separation oxygen etc.

Mobile Screw Air Compressor
185CFM Diesel Portable Mining Screw Air Compressor

Diesel portable screw air compressor easy to move in complex terrain. There are hoisting rings on the top of each compressor for safe hoisting and transportation.

electric air compressor
Oil Free Electric Screw Air Compressor

Water-lubricated oil-free screw air compressors are widely used in industries with high-quality, high-quality air sources, and are the first choice for oil-free compressed air. For example: pharmaceutical, food, electronics, chemical, packaging and other industries. 100% pure oil-free compressed air is a necessary step to ensure satisfactory process and product quality, thereby ensuring the safe and risk-free production of high-end products.

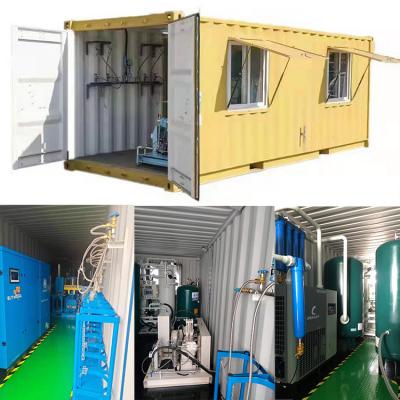

Container PSA Oxygen Generator
