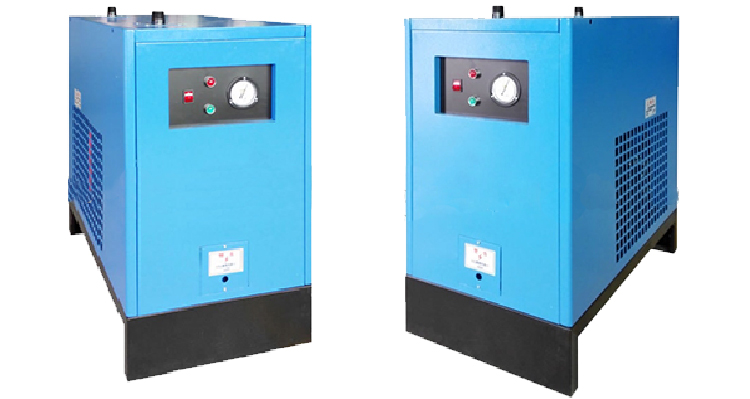

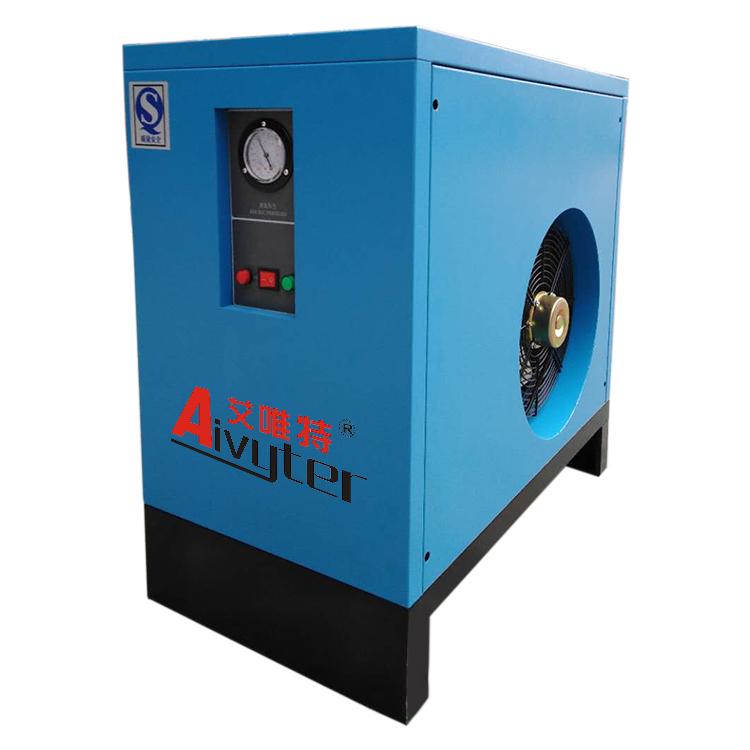

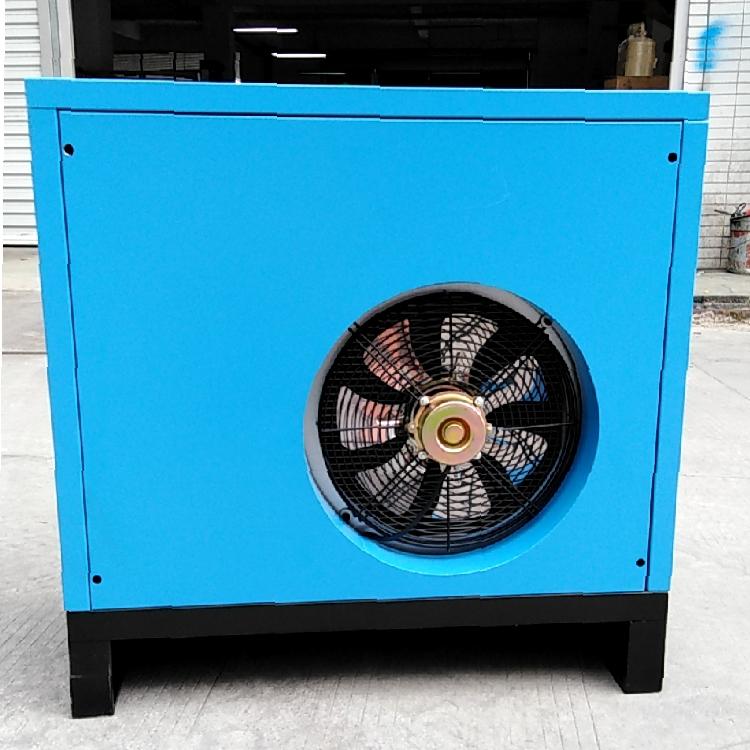

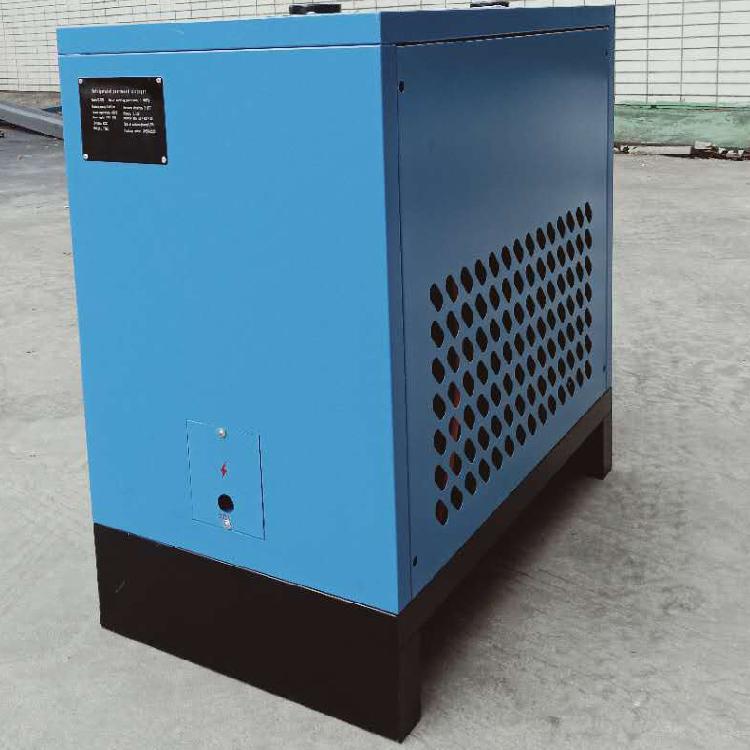

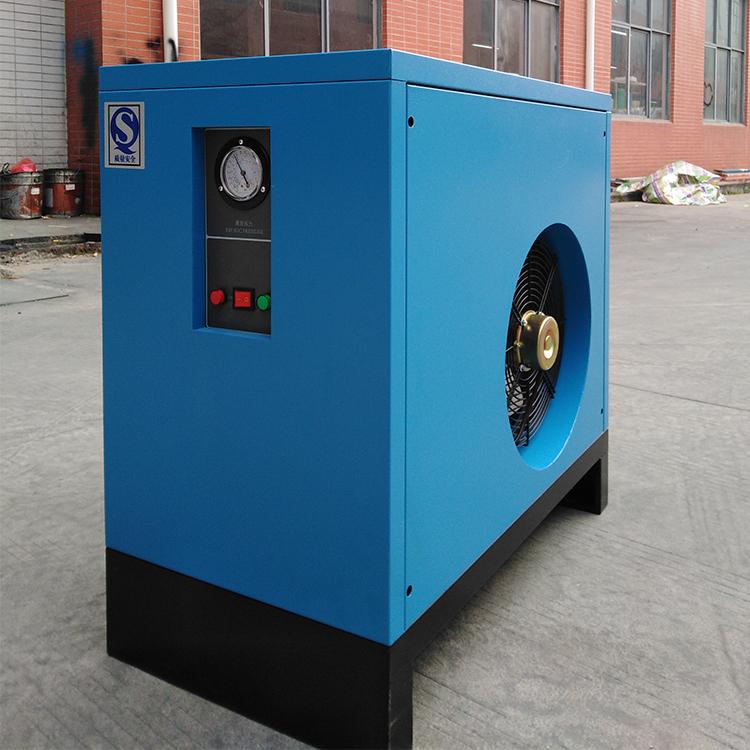

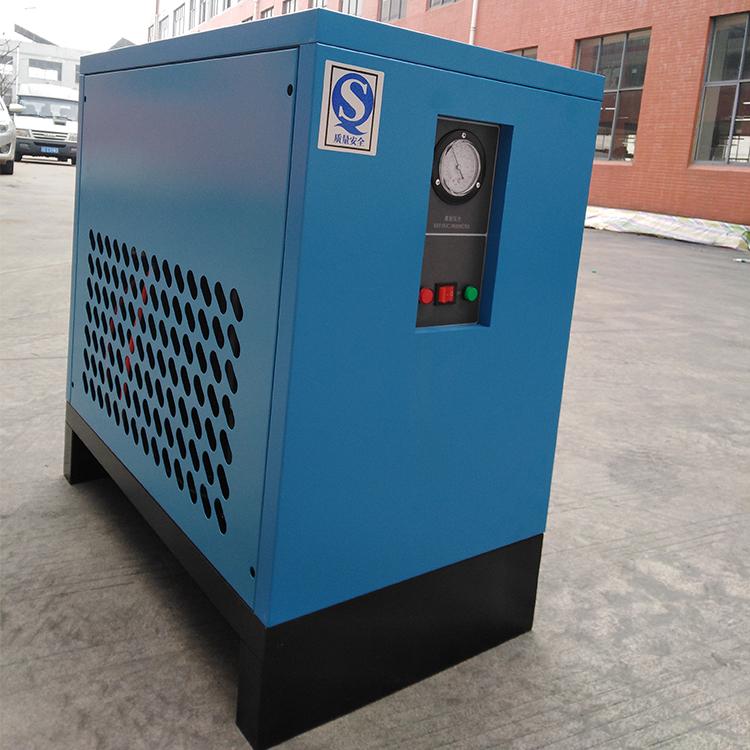

Air cooling models
1.Inlet temperature: ≤80℃
2.Cooling method: Air-cooling
3.Ambient temperature:≤38℃
4.Dew point:2-10℃
5.Inlet pressure:0.6-1.0Mpa
6.Pressure drop:≤2% of working pressure
7.Refrigerant: R22/R134a/R407c
1. Reliable and economical performance
Threaded pipelines of the heat exchanger increase the using rate of cooling air
Evaporator is made from laminose copper pipeline with aluminum flake, high efficiency and low energy consumption
Condenser made from fin copper, good heat exchanging rate without freeze and jam
2. Environmental friendly
Aluminum-alloy-made heat exchangers never get rusted, strong anti-corrosion properly,pollution reoccurrence free. Environmental cooling medium adopted across the series, keeping up with the international trends of environment protection
3. Top configuration
Whole series of refrigerated compressors are of first class brands,such as KERRY, COPELAND and MANEUROP
Whole series of refrigeration control elements are of first class brands,such as DANFOSS and ALCO
Whole series of air coolers adopt nanometer anti-corrosion coating on the surfaces
4. Total Control
Easy to use controller automatically manages dryer operation while monitoring critical parameters for optimum air treatment and efficiency
5. Flexible Design
Air-cooled and water-cooled options and compact size to fit any application Easy for installation and free maintenance
Product parameter：
|
Model |
Air flow |
Compressor
(HP)
|
Power supply
(v/50hz)
|
Pipe diameter
inch
|
Dimension
(mm)
|
Weight
(kg)
|
|
| m3/min | cfm | ||||||
| P-7.5A | 1.0 | 35 | 0.3 | 220 | 3/4" | 610*400*640 | 38 |
| P-10A | 1.5 | 53 | 0.35 | 220 | 1" | 750*420*800 | 52 |
| P-15A | 2.0 | 71 | 0.5 | 220 | 1" | 750*420*800 | 65 |
| P-20A | 2.5 | 88 | 0.5 | 220 | 1 1/4" | 750*420*800 | 73 |
| P-25A | 3.0 | 106 | 0.75 | 220 | 1 1/4" | 750*420*800 | 80 |
| P-30A | 3.8 | 124 | 0.75 | 220 | 1 1/2" | 930*510*950 | 92 |
| P-40A | 5.0 | 176 | 1 | 220 | 1 1/2" | 930*510*950 | 100 |
| P-50A | 6.5 | 230 | 1.5 | 220 | 2" | 930*510*950 | 115 |
| P-60A | 8.0 | 282 | 1.5 | 220 | 2" | 930*510*950 | 136 |
| P-75A | 10.5 | 371 | 2 | 220 | 2 1/2" | 1080*600*1150 | 160 |
| P-100A | 13.5 | 477 | 2.75 | 220 | 2 1/2" | 1080*600*1150 | 210 |
| P-120A | 15.0 | 530 | 4 | 220 | 3" | 1280*700*1400 | 235 |
| P-150A | 20.0 | 706 | 4 | 220 | 3" | 1280*700*1400 | 265 |
| P-180A | 25.0 | 883 | 5 | 220 | 3" | 1380*750*1400 | 293 |
| P-200A | 28.5 | 1006 | 5 | 220 | 3" | 1380*750*1400 | 325 |
| P-250A | 30.0 | 1059 | 7.5 | 220 | 4" | 1500*900*1450 | 386 |
| P-300A | 35.0 | 1236 | 7.5 | 220 | 4" | 1500*900*1450 |
430 |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
