18.5kw 25hp Air Cooling Energy Saving Inverter Air Screw Compressor

18.5kw 25hp Air Cooling Energy Saving Inverter Air Screw Compressor is suitable for construction, cleaning, sandblasting, stamping and other industries.

Item No.:
SGPM 18
Payment:
L/C , T/T , D/P , FOB,CIF
Product origin:
china
Product weight:
380kg
Lead Time:
7~15 Day

Product Details

18.5kw 25hp Air Cooling Energy Saving Inverter Air Screw Compressor

Product Features:

1. Simple and clear control system, customized Russian, Spanish, French, etc.
2. It can work automatically for 24 hours unattended
3. Airend produced with international advanced technology determines the excellent performance of the whole machine
4. Adopt the red star air inlet valve, which can automatically adjust the air volume according to the requirements of the system air volume
5. Adopt high-performance motor, insulation class F, SKF heavy-duty bearings.

Product Parameter:

Model	SGPM 18	Discharge Pressure(Mpa)	0.7 / 0.8 /1.0 /1.2
Air Delivery(m³/min)	3.2/3.0/2.7/2.4	Power(kW)	18
Lubricant(L)	18	Drive Method	Variable frequency starting
Cooling	Air	Discharge Temperature(℃)	≤Ambient temperature±15℃
Electricity(V/Hz)	380V/50Hz(customizable)	Weight(kg)	380
Dimension(mm)	11308501185mm	Air Outlet Pipe Diameter(inch/mm)	G1''

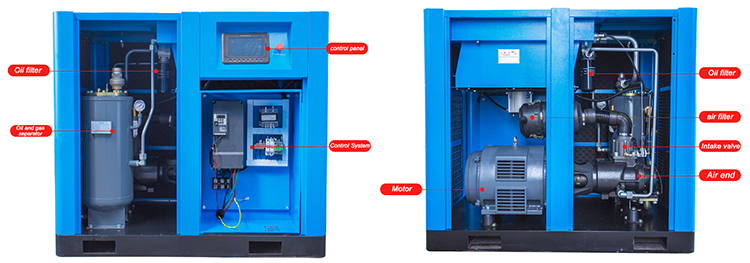

Easy to operate and continuously Easy to operate and continuously working for 24 hours unattended, English and Russian languagesEnglish and Russian languages for choosing, accept OEM.
Using famous brands, likeUsing famous brands, like SIEMENS, Schneider, greatlyimprove the service life.
Well-known brand ofWell-known brand of high-performance electric motor, SKF bearing, high-classSKF bearing, high-class insulation, IP23 standard, IP54for option.
World-renowned brands, air inputWorld-renowned brands, air input can be automatically adjustedcan be automatically adjusted from 0% to 100%, reducingfrom 0% to 100%, reducing operation cost.
The technology of air end isThe technology of air end is original from Europe, and madeoriginal from Europe, and made in China with superior technique, the powerful heart ensures goodthe powerful heart ensures good performance of the wholeperformance of the whole air compressor.

Company Information:

FAQ:

Q1: What is the rotor speed of the main engine?
A1: 2980rmp.
Q2: What is your delivery time?
A2: Usually, 5-7 days. (OEM order: 15 days)
Q3: Can you provide water-cooled air compressors?
A3: Yes, we can (usually air-cooled).
Q4: What is the payment deadline?
A4: T/T, L/C, Western Union, etc. We can also accept USD, RMB and other currencies.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or according to your requirements.
Q6: What is your air compressor warranty?
A6: One year for the whole machine (excluding consumable spare parts), technical support can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24-hour online support, 48-hour problem solving commitment.
Q9: Do you have spare parts?
A9: Yes, we have.
Q10: What is the initial lubricant you use on the air compressor?
A10: A total of 46# mineral oil.
