The Unique New Design of Permanent Magnet Motor and Speed-regulating Frequency Converter Is Directly Connected to the Durable High-quality Host, Showing Extremely Advanced Compressor Technology, Providing Unparalleled Energy-saving Effects and Super Reliability.
Item No.:
SGPM 22Payment:
L/C , T/T , D/P , FOB,CIFGoods_stock:
1000Product weight:
380kgShipping port:
guangzhouLead Time:

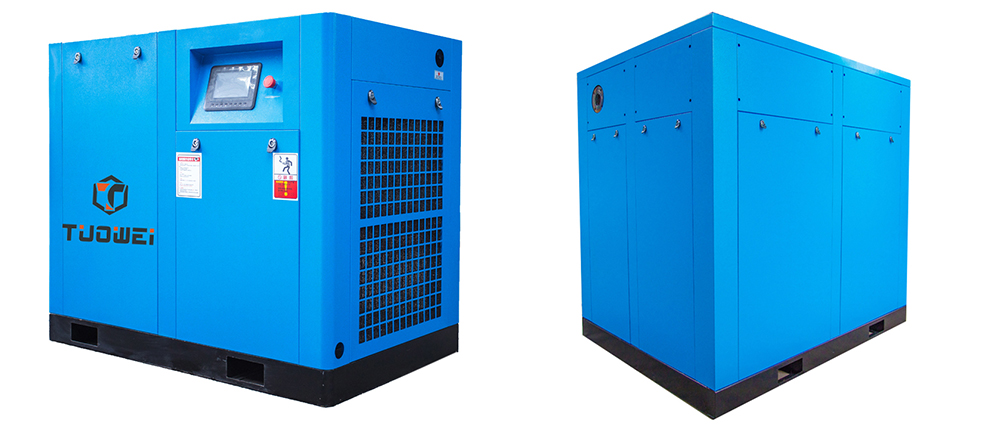

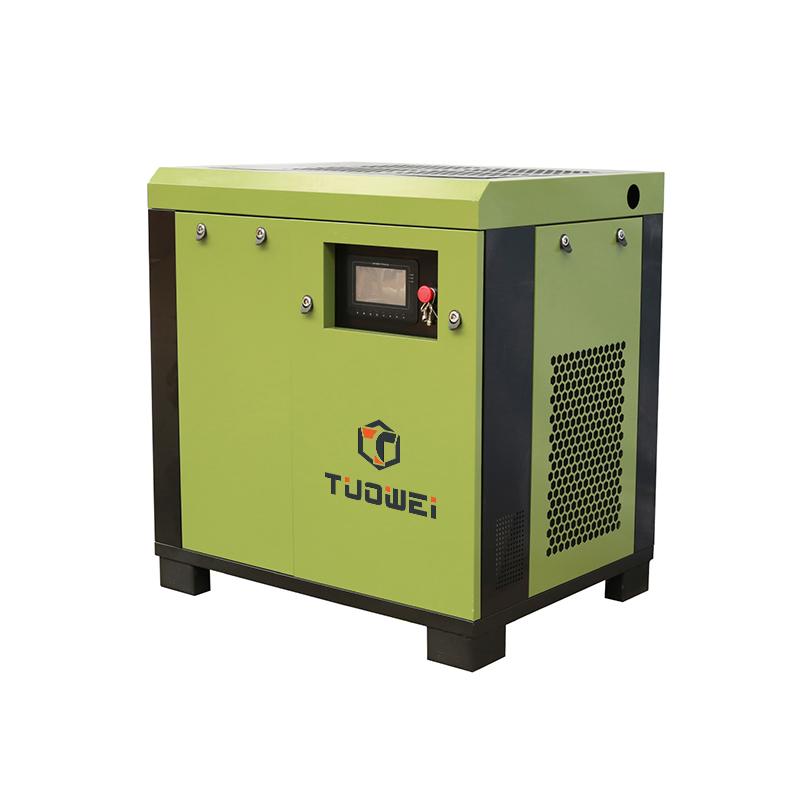

7~15 Day22Kw 30HP Variable Frequency Driven Rotary Screw Air Compressor

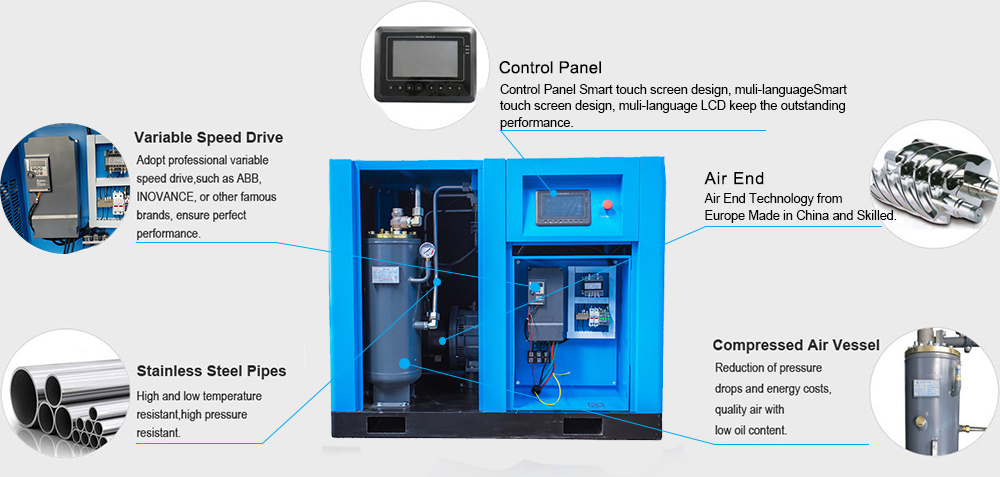

Product features:
1. Large rotor, low speed, high efficiency, high reliability host
2. Utilizing the characteristics of the stepless speed regulation of the inverter, through the controller or the PID regulator inside the inverter, it can quickly respond to pressure fluctuations and stabilize the air pressure. Compared with the upper and lower limit switch control of power frequency operation, the air pressure is stable.
3. Acceleration and deceleration control soft start and stop without starting peak current.
4. When the whole machine is running stably, the frequency is lower than the frequency of the industrial frequency machine, the noise and mechanical wear are greatly reduced, and the life of the whole machine is prolonged.
5. Pre-installed large-capacity pre-air filter to ensure that the inside of the machine runs in a cleaner environment, suitable for different environments.
Application areas:
Textile, spraying, medical treatment, chemical industry, building materials, food processing, electronics, light industry, etc.
| Model | Motor Power | Working Pressure | Capacity |
Lubricating oil quantity （L) |
Driven Method | Cooling Method |
Noise (dB） |
Dimension(mm) | Net Weight | Air Outlet Pipe Diameter | ||
| kw/hp | bar | m3/min | L*W*H | KGS | ||||||||
| SGPM08 | 7.5/10 | 7 | 1.2 | 10 | Direct Drive |
Air Cooling / Water Cooling |
66±2 | 900*670*850 | 220 | 1/2’’ | ||
| 8 | 1.1 | |||||||||||
| 10 | 0.95 | |||||||||||
| 12 | 0.8 | |||||||||||
| SGPM11 | 11/15 | 7 | 1.65 | 18 | 68±2 | 1000*750*1015 | 300 | 3/4’’ | ||||
| 8 | 1.5 | |||||||||||
| 10 | 1.3 | |||||||||||
| 12 | 1.1 | |||||||||||
| SGPM15 | 15/20 | 7 | 2.5 | 18 | 68±2 | 1000*750*1015 | 300 | 3/4’’ | ||||
| 8 | 2.3 | |||||||||||
| 10 | 2.1 | |||||||||||
| 12 | 1.9 | |||||||||||
| SGPM18 | 18.5/25 | 7 | 3.2 | 18 | 68±2 | 1130*850*1175 | 480 | 1’’ | ||||
| 8 | 3 | |||||||||||
| 10 | 2.7 | |||||||||||
| 12 | 2.4 | |||||||||||
| SGPM22 | 22/30 | 7 | 3.8 | 18 | 68±2 | 1130*850*1175 | 480 | 1’’ | ||||
| 8 | 3.6 | |||||||||||
| 10 | 3.2 | |||||||||||
| 12 | 2.7 | |||||||||||
| SGPM30 | 30/40 | 7 | 5.3 | 18 | 68±2 | 1130*850*1175 | 480 | 1’’ | ||||
| 8 | 5 | |||||||||||
| 10 | 4.5 | |||||||||||
| 12 | 4 | |||||||||||
| SGPM37 | 37/50 | 7 | 6.8 | 30 | 68±2 | 1250*1000*1335 | 500 | 11/2" | ||||
| 8 | 6.2 | |||||||||||
| 10 | 5.6 | |||||||||||
| 12 | 5 | |||||||||||
| SGPM45 | 45/60 | 7 | 7.4 | 30 | 72±2 | 1250*1000*1335 | 500 | 11/2" | ||||
| 8 | 7 | |||||||||||
| 10 | 6.2 | |||||||||||
| 12 | 5.6 | |||||||||||
| SGPM55 | 55/75 | 7 | 10 | 65 | 72±2 | 1800*1250*1670 | 1200 | 2" | ||||
| 8 | 9.6 | |||||||||||
| 10 | 8.5 | |||||||||||
| 12 | 7.6 | |||||||||||
| SGPM75 | 75/100 | 7 | 13.4 | 65 | 72±2 | 1800*1250*1670 | 1200 | 2" | ||||
| 8 | 12.6 | |||||||||||
| 10 | 11.2 | |||||||||||
| 12 | 10 | |||||||||||
| SGPM90 | 90/120 | 7 | 16.2 | 72 | 72±2 | 1800*1250*1670 | 1200 | 2" | ||||
| 8 | 15 | |||||||||||
| 10 | 13.8 | |||||||||||
| 12 | 12.3 | |||||||||||
| SGPM110 | 110/150 | 7 | 21 | 90 | 72±2 | 2300*1470*1840 | 2000 | DN85 | ||||
| 8 | 19.8 | |||||||||||
| 10 | 17.4 | |||||||||||
| 12 | 14.8 | |||||||||||
| SGPM132 | 132/175 | 7 | 24.5 | 90 | 75±2 | 2300*1470*1840 | 2000 | DN85 | ||||
| 8 | 23.2 | |||||||||||
| 10 | 20.5 | |||||||||||
| 12 | 17.4 | |||||||||||
| SGPM160 | 160/200 | 7 | 28.7 | 110 | 75±2 | 2500*1470*1840 | 3200 | DN85 | ||||
| 8 | 27.6 | |||||||||||
| 10 | 24.6 | |||||||||||
| 12 | 21.5 | |||||||||||
| SGPM185 | 185/250 | 7 | 32 | 110 | 75±2 | 2500*1470*1840 | 3200 | DN85 | ||||
| 8 | 30.4 | |||||||||||
| 10 | 27.4 | |||||||||||
| 12 | 24.8 | |||||||||||
FAQ:
Q1: What is the rotor speed for the air end?
A1: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
