Aircompsupplier brand of SGD serial direct drive screw air compressor, with CE certificate, using BAOSI brand of air end (OEM orders of GHH and Hanbell brand of air end are also acceptable), with large rotor and SKF bearing, and famous brand of motor in China, more stable and reliable, MAM serial of control panel, easy to operate, the simple and mature structure of air compressor makes failure rate lower, and also easily assembled and regularly maintain. Aircompsupplier screw air compressors can work 24hours automatically and continuously without attend.
Item No.:
SGPM 37Payment:
L/C , T/T , D/P , FOB,CIFProduct origin:
chinaColor:
according to your needsLead Time:

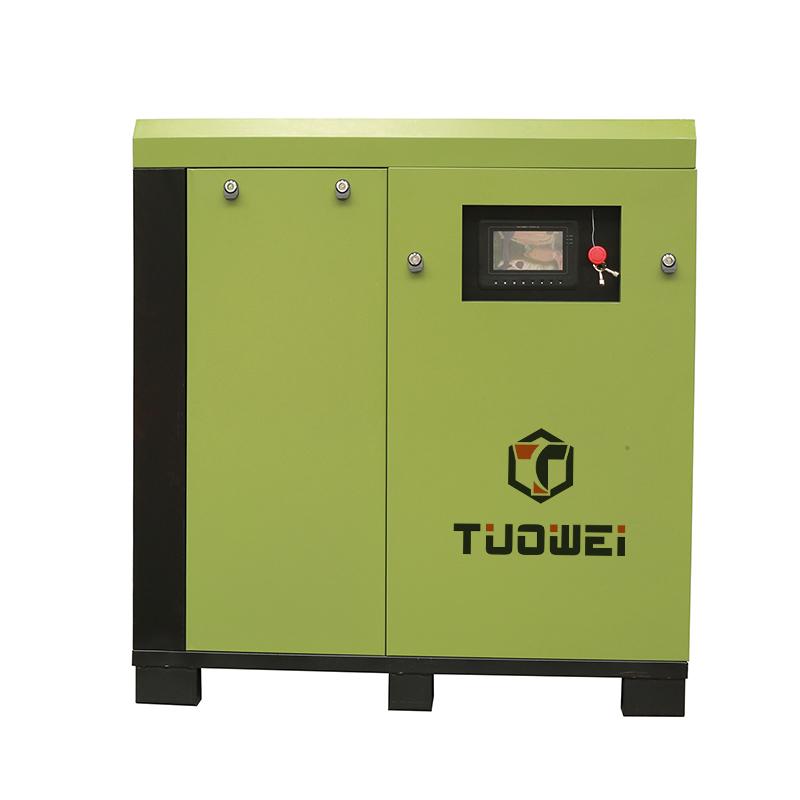

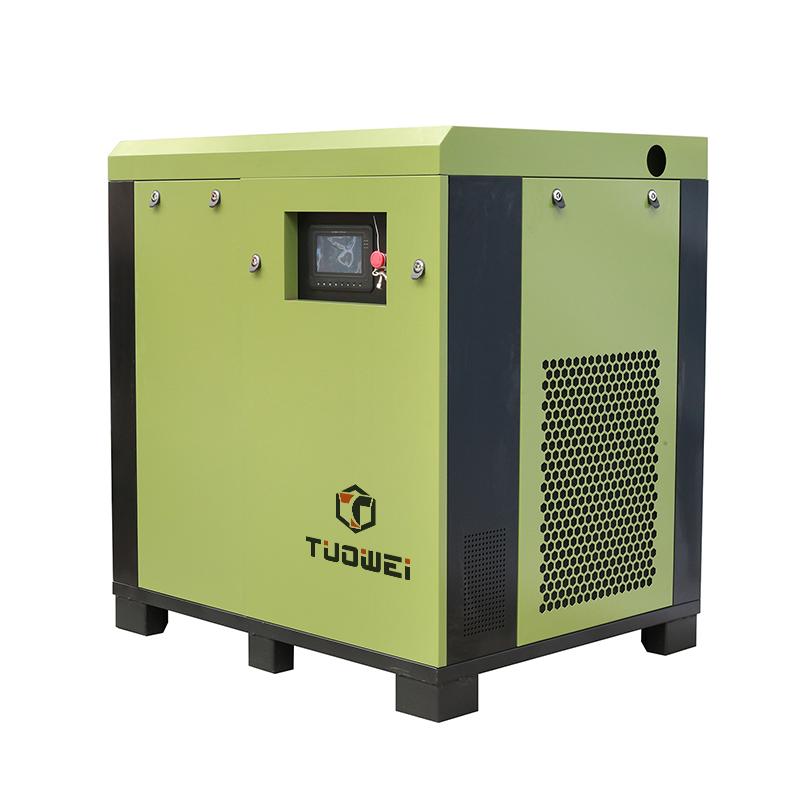

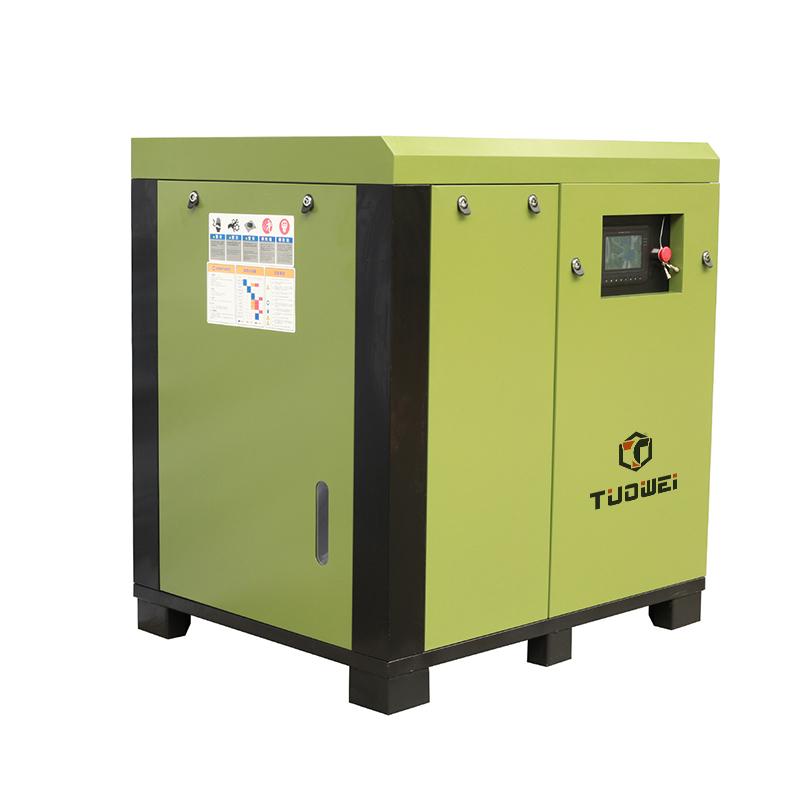

7~30 Day37kw 50hp PM Air Cooling Screw Air Compressor
Product Features:
| Model | SGPM 90 | Discharge Pressure(Mpa) | 0.7 / 0.8 /1.0 /1.2 |
| Air Delivery(m³/min) | 16.2/15.0/13.8/12.3 | Power(kW) | 55 |
| Lubricant(L) | 72 | Drive Method | Variable frequency starting |
| Cooling | Air | Discharge Temperature(℃) | ≤Ambient temperature±15℃ |
| Electricity(V/Hz) | 380V/50Hz(customizable) | Weight(kg) | 1950 |
| Dimension(mm) | 2500*1470*1840mm | Air Outlet Pipe Diameter(inch/mm) | G1 1/2'' |

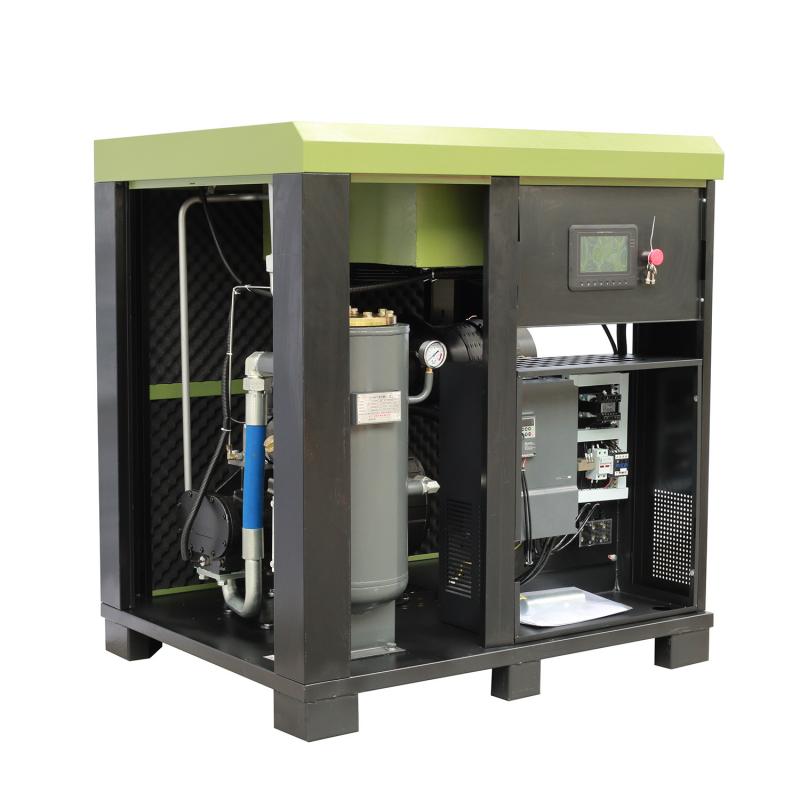

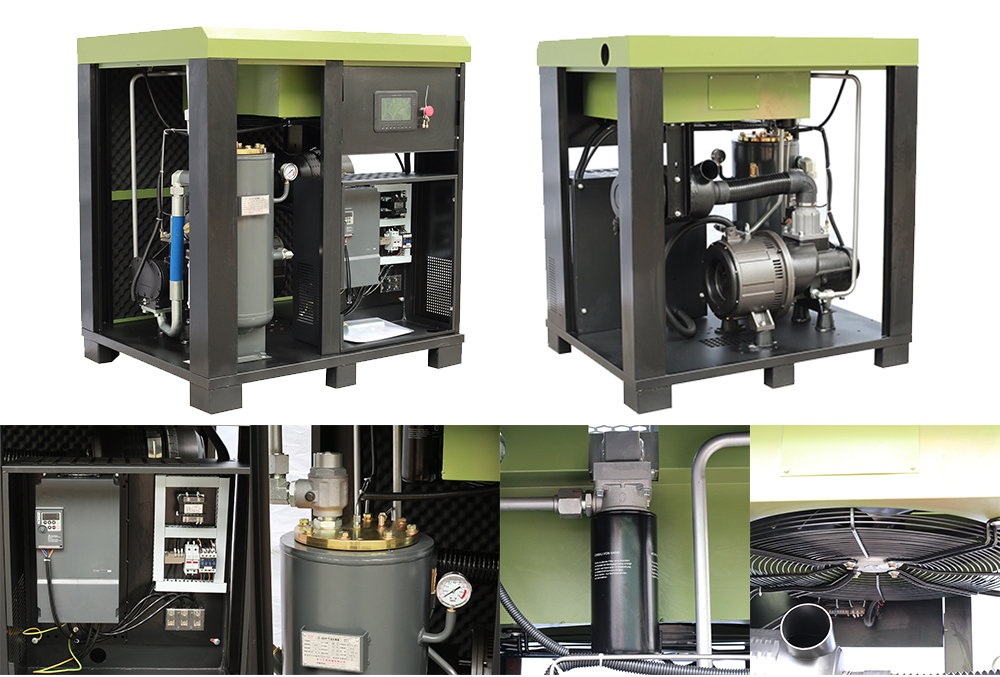

Air inlet valve
World-renowned brands, air input can be automatically adjusted from 0% to 100%, reducing operation cost.

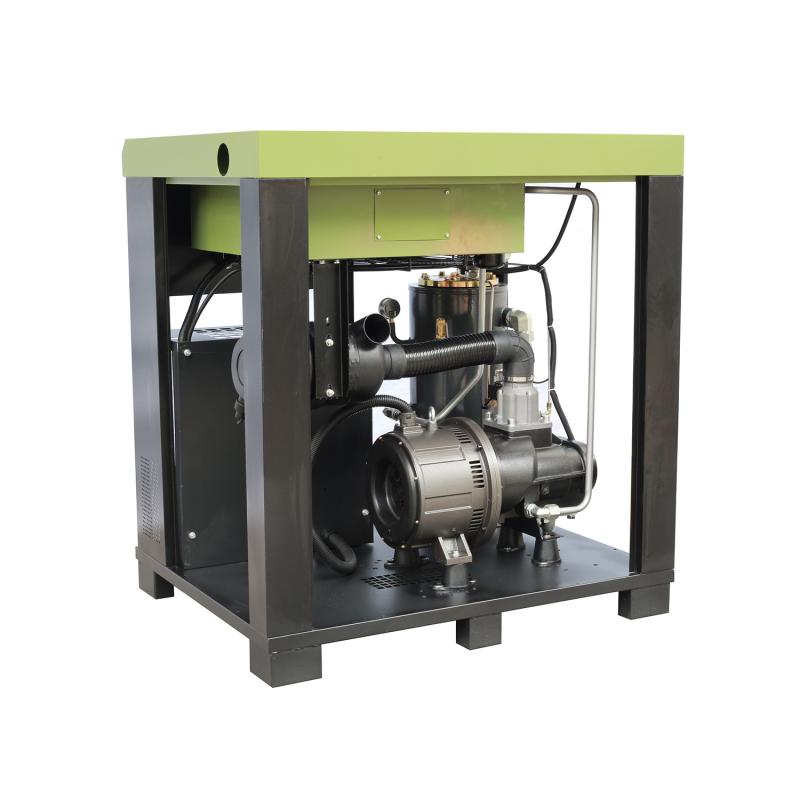

Air end
The technology of air end is original from Europe, and made in China with superior technique, the powerful heart ensures good performance of the whole air compressor.
Air filter
With low flow resistance design and large dust holding capacity to make sure the high purity of inlet air.
Control panel
Easy to operate and continuously working for 24 hours unattended, English and Russian languages for choosing, accept OEM.
Electric control system
Using famous brands, like SIEMENS, Schneider, greatly improve the service life.
Electric motor
Well-known brand of high-performance electric motor, SKF bearing, high-class insulation, IP23 standard, IP54 for option.
Oil separator
With high efficient core of oil/air separating element, ensures the lower oil content in the compressed air (less than 3ppm).
Oil filter
Adopting the superior materials, the oil filter shows better filtering function, to compare with others, and which extends the service life time of air end effectively.
Company Information:
FAQ:
Q1: What is the rotor speed of the main engine?
A1: 2980rmp.
Q2: What is your delivery time?
A2: Usually, 5-7 days. (OEM order: 15 days)
Q3: Can you provide water-cooled air compressors?
A3: Yes, we can (usually air-cooled).
Q4: What is the payment deadline?
A4: T/T, L/C, Western Union, etc. We can also accept USD, RMB and other currencies.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or according to your requirements.
Q6: What is your air compressor warranty?
A6: One year for the whole machine (excluding consumable spare parts), technical support can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24-hour online support, 48-hour problem solving commitment.
Q9: Do you have spare parts?
A9: Yes, we have.
Q10: What is the initial lubricant you use on the air compressor?
A10: A total of 46# mineral oil.
