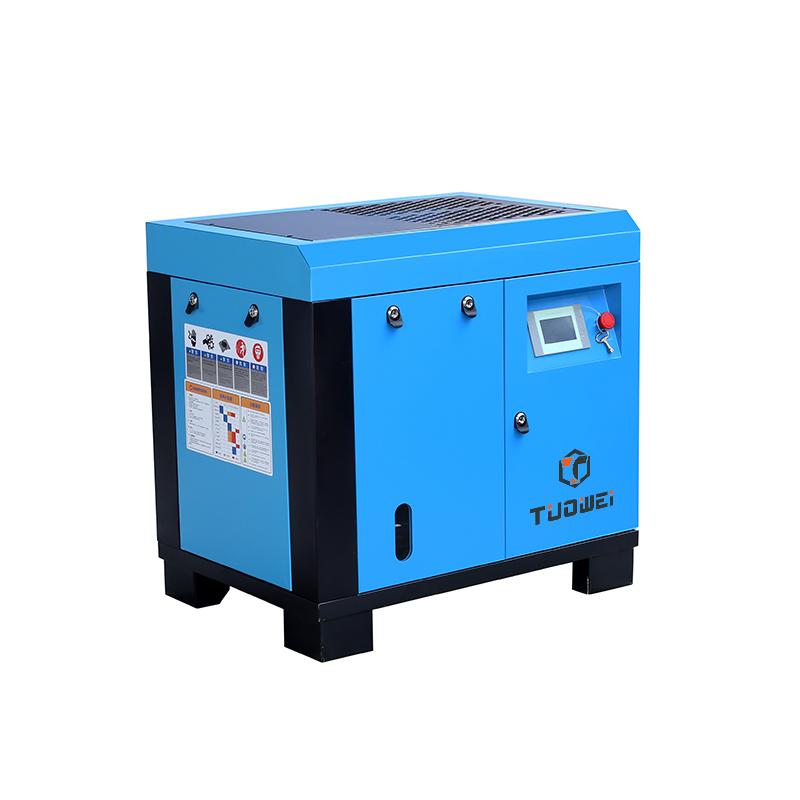

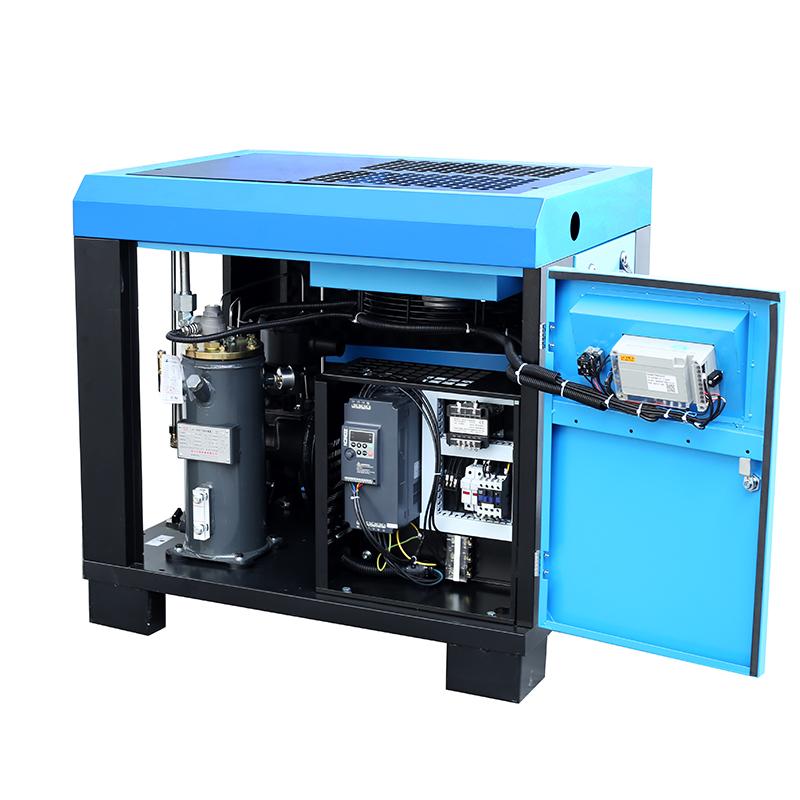

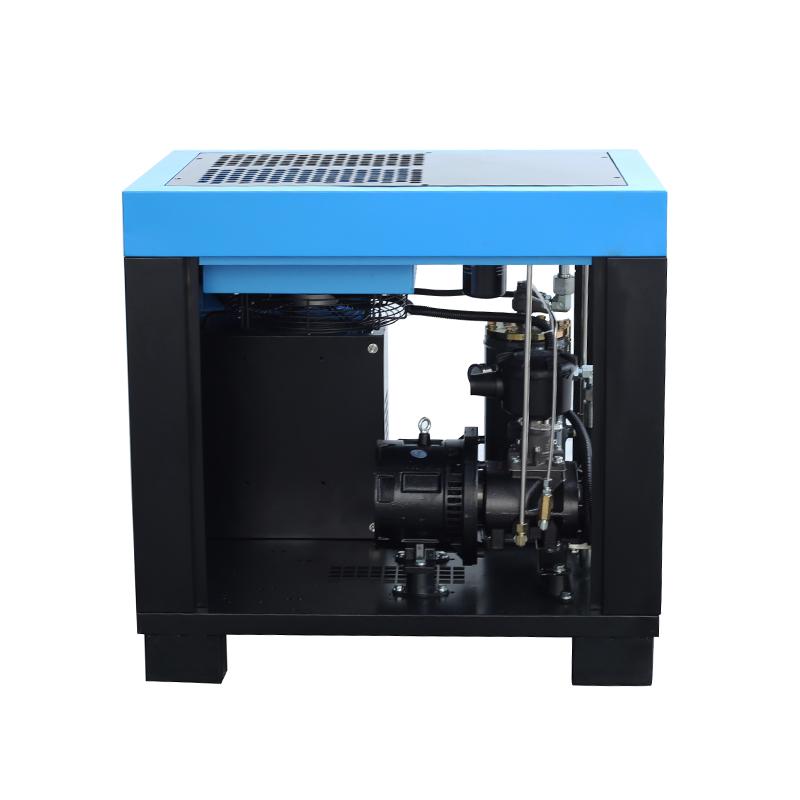

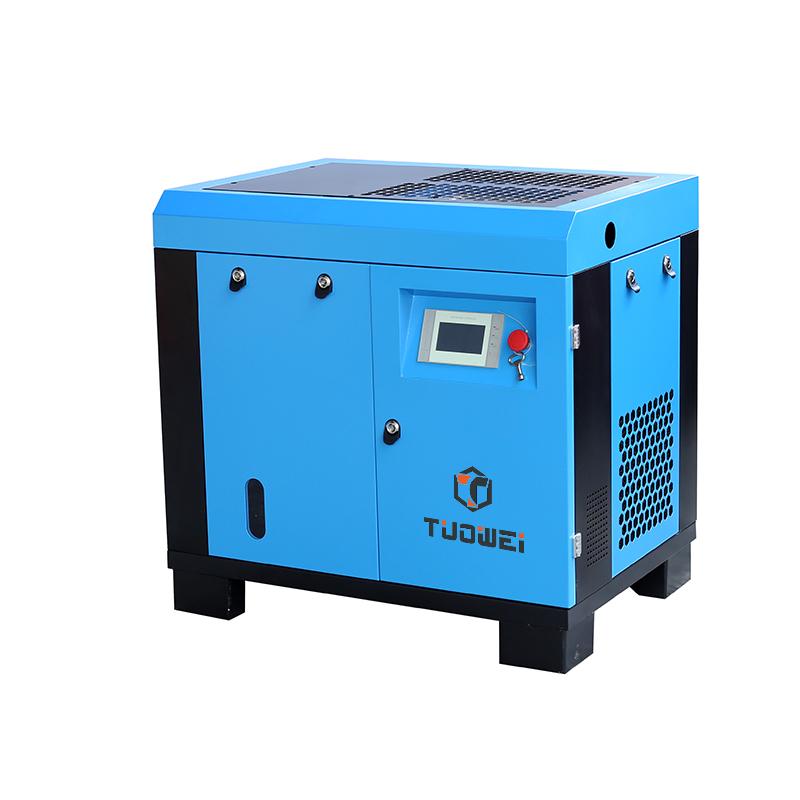

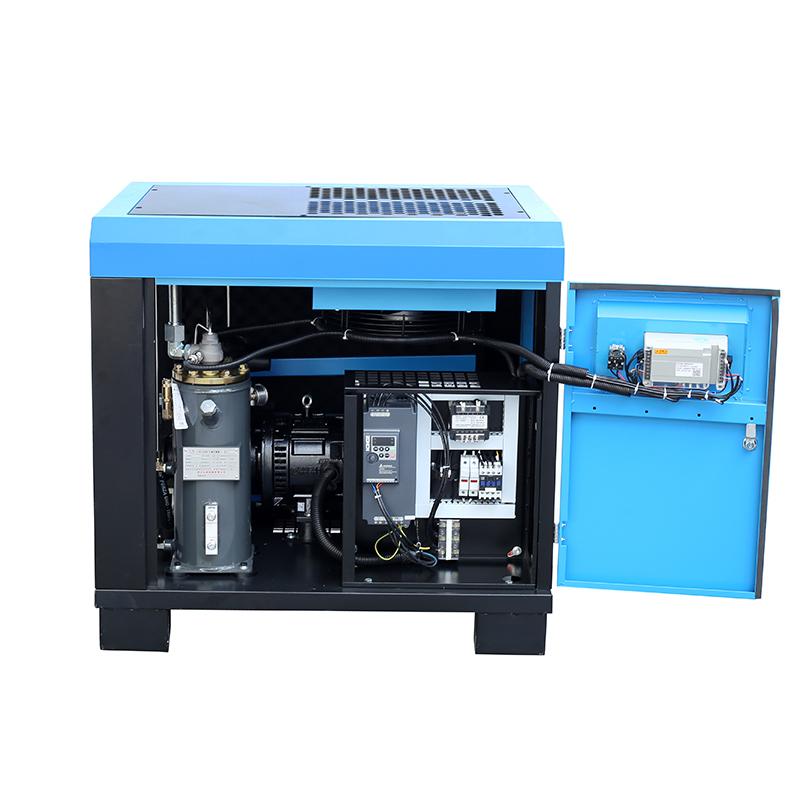

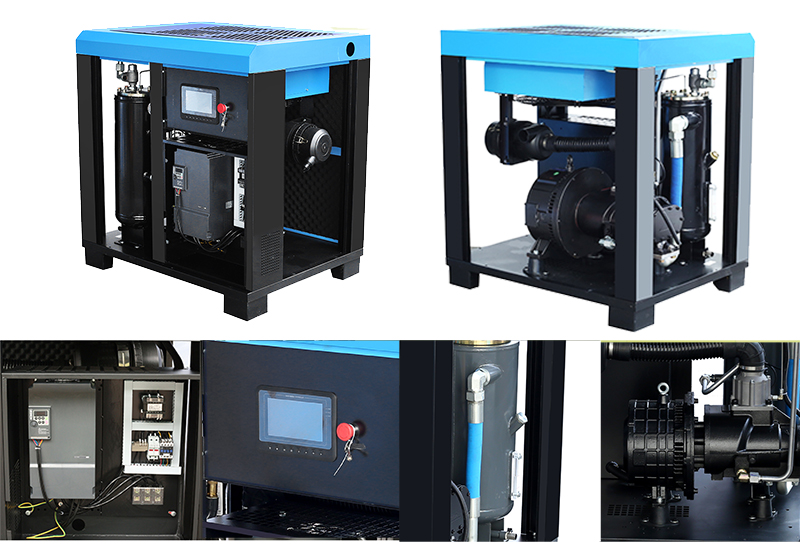

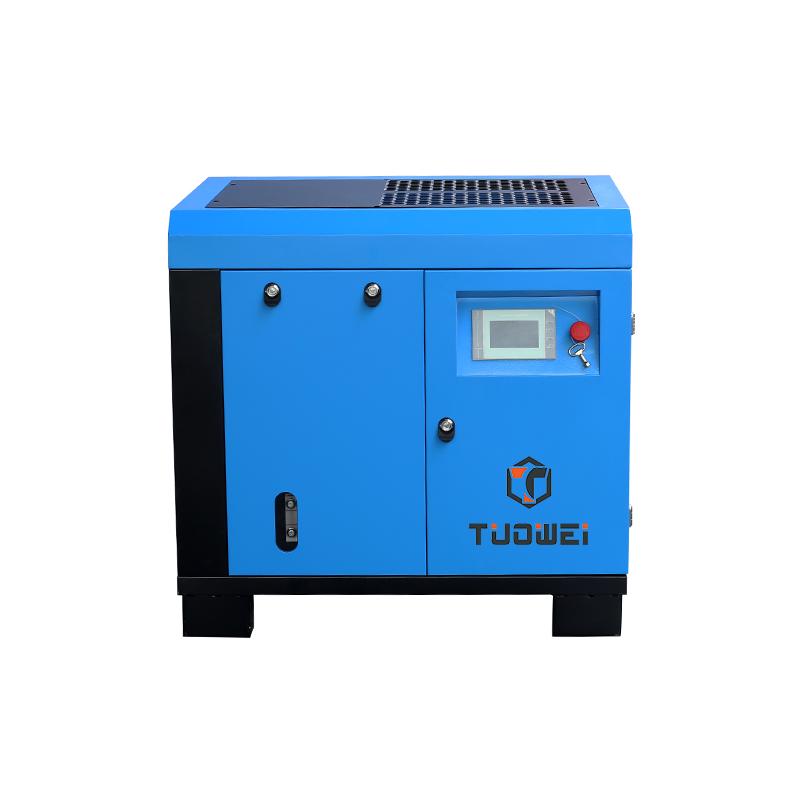

7.5kW 10Hp Permanent Magnet Inverter Rotary Screw Air Compressors Is Equipped with a Dedicated Frequency Converter, Which Has a Wider Frequency Conversion Range. With Permanent Magnet Synchronous Motor, the Maximum Energy Saving Effect Can Be Achieved.
Brand:
AivyterItem No.:
SGPM 08Payment:
L/C , T/T , D/P , FOB,CIFProduct origin:
chinaColor:
Blue or according to your needsGoods_stock:
1000Shipping port:
guangzhouLead Time:
7~15 DayPower::
Screw Air Compressor (SGD）Customization::
7.5KW ~ 250KWPayment Terms::
380V 50hz 3ph ( According to Your Request)Shipping Port::
WelcomeLead Time::
1 Year for Machinery Warranty7.5kW 10Hp Permanent Magnet Inverter Rotary Screw Air Compressors
Product features:
1. The latest technical, high reliability.
2. Oil-cooled permanent magnet motor.
3. IP55 protection grade and heavy-duty air filter, suitable for dusty environment.
4. The efficiency of IE4 efficiency motor.
5. High-quality magnetic materials can withstand temperatures above 180°C.
6. A reliable supplier of permanent magnet motors from Italy.
7. Direct taper connection, no transmission power loss, easy maintenance.
8. Easy to install and maintain.
Product Parameters
| Model | SGM 08 | Discharge Pressure(Mpa) | 0.7/0.8/1.0/1.2 |
| Power(kW) | 7.5 | Air Delivery(m³/min) | 1.2/1.1/0.95/0.8 |
| Lubricant(L) | 30 | Driving Way | Direct Drive |
| Cooling | Air | Discharge Temperature(℃) | Ambient temperature±15℃ |
| Electricity(V/Hz) | 380V/50Hz(custom made） | Weight(kg) | 160 |
| Dimension(mm) | 900*640*850 | Air Outlet Pipe Diameter(inch/mm) | G1 1/2'' |
Company strength
Aircompsupplier Mechanical & Electrical Equipment Co., Ltd, established in 2010, is a professional enterprise engaged in the research, development, sale and service of air compressor, screw air compressor, air dryer, filters, oxygen generator, nitrogen generator and wet spray manipulator.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction by supplying air and gas. Aircompsupplier company not only has its own import and export right and stable distributors worldwide, but also has a team of professional after sales and service. In addition, we have obtained CE, TUV, SGS, ISO certificates.
If you want to know our company information, please click Thank you.
FAQ
Q1: What is the rotor speed for the air end?
A2: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
