PSA oxygen generators can be widely used in steel cutting, oxygen-enriched combustion, hospital oxygen, glass production, papermaking and other industries and fields. Different users in different industries use different oxygen. Requirements, provide personalized and professional oxygen production equipment to fully meet the gas requirements of different users. Pressure swing adsorption oxygen production equipment it has the advantages of low equipment cost, small size, light weight, simple operation, convenient maintenance, low operating cost, fast on-site oxygen production, convenient switching, and pollution-free. It can be suitable for steel cutting, rich Oxygen-assisted combustion, hospital oxygen, etc. and cryogenic oxygen equipment high purity of oxygen, long service life of the equipment.
1). Fully automatic
All systems are designed for unattended operation.
2). Low space requirement
The design and instrumentation make the factory very compact and can be assembled on prefabricated slides in the factory.
3). Quick Start
The start-up time only takes 5 minutes to obtain the required oxygen purity, so these devices can be turned on and off according to changes in oxygen demand.
4). High reliability
The oxygen purity is constant, continuous and stable operation, very reliable, the available time of the factory is always better than 93%±2.
5). Molecular sieve life
The expected life of the molecular sieve is about 15 years, that is, the entire life of the oxygen-making equipment, so there is no need for replacement costs.
6). Adjustable
By changing the flow rate, you can deliver oxygen with just the right purity.
| Model | O2 flow | O2 purity | Air consumption | Dimensions(mm) |
| m3/h | % | ≥ m3/min | L*W*H | |
| SPO93-5 | 5 | 93±2 | 1.08 | 2500×900×1900 |
| SPO93-10 | 10 | 2.17 | 2500×1300×2100 | |
| SPO93-20 | 20 | 4.33 | 3000×1600×2200 | |
| SPO93-30 | 30 | 6.5 | 3400×2000×2450 | |
| SPO93-40 | 40 | 8.7 |
Purification system:2500×1600×2400
Oxygen system:3000×1300×2400
|
|
| SPO93-50 | 50 | 10.83 |
Purification system:3000×1450×2400
Oxygen system:3100×1300×2400
|
|
| SPO93-60 | 60 | 13 |
Purification system:1250×1200×1800
Oxygen system:3100×1600×2400
|
|
| SPO93-70 | 70 | 15.17 |
Purification system:1250×1200×1800
Oxygen system:2600×2100×2400
|
|
| SPO93-80 | 80 | 17.33 |
Purification system:1250×1200×1800
Oxygen system:2600×2100×2480
|
|
| SPO93-90 | 90 | 19.5 |
Purification system:1300×1300×1800
Oxygen system:2800×2200×3200
|
|
| SPO93-100 | 100 | 21.7 |
Purification system:1300×1300×1800
Oxygen system:2800×2200×3200
|
|
| SPO93-120 | 120 | 26 |
Purification system:1650×1500×2100
Oxygen system:3200×2700×2400
|
|
| SPO93-150 | 150 | 32.5 | Custom size | |
| SPO93-180 | 180 | 39 | Custom size | |
| SPO93-200 | 200 | 43.3 | Custom size |
Q1: What's the system installation environment requirement?
A1:The system requires a dry ventilated environment.
Q2.What terms of payment you use?
A2:T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency
Q3.Do you offer customized services?
A3:Yes, We offer customized products according to different oxygen demand.
Q4. Before get a prompt quotation,which technical information is required?
A4:For hospital use:
A.Need to provide the Hospital oxygen servey, we would send the required information data table.
B.For other application:
1)O2 flow rate: _____Nm3/hr
2) O2 purity: _____%
3) O2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:
Q5.What about your after-sale services?
A5:We provide a variety of gas supply solutions according to customer requirements, and also provide users with repair and maintenance
Previous :
OEM Psa Oxygen Generator Manufacturers with Cylinder Filling SystemNext :
Oxygen Plant Psa Oxygen Generator Used for Medical and IndustrialIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
10hp to 175hp Permanent Magnet Frequency Conversion Energy Saving Screw Air Compressor Read More
7.5Kw To 250 Kw Electric Direct Drive Rotary Screw Air Compressor Read More
11kW 15HP 16bar Combined Rotary Screw Air Compressor with Dryer, Air Tank for Laser Cutting Machines Use Read More
Silent Aircompressors Oilless Oil Free Belt Driven Scroll Air Compressor for Sale Read More
185CFM Diesel Portable Mining Screw Air Compressor Read More
PSA oxygen generator can be used in hospitals, oxygen bottle washing, electric furnace steelmaking, wastewater treatment, non-ferrous metal smelting, petrochemical industry, aquaculture and other industries psa oxygen generator for sale

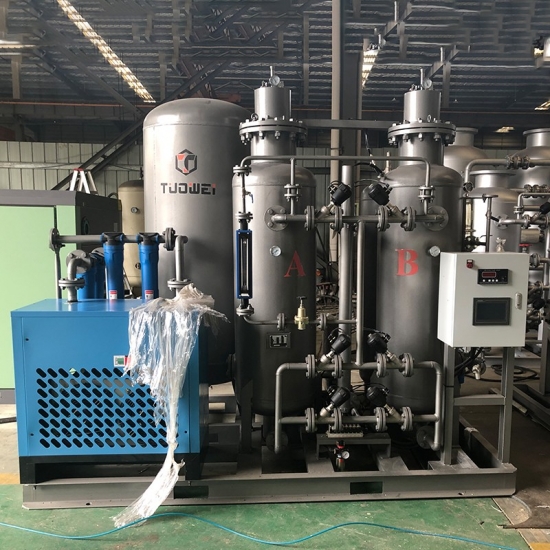

The PSA oxygen production system is mainly composed of an air compressor, an activated carbon filter, an air cooler, an air buffer tank, an oxygen generator, and an oxygen compressor. After the raw material air passes through the suction filter to remove the dust particles, it is pressurized to 0.5Mpa by the air compressor, firstly, the activated carbon filter removes the small amount of oil entrained in the compressed air when the air compressor is just turned on, and then is condensed by the air cooler In addition to water, it enters an adsorber of the oxygen generator. The adsorber is filled with adsorbent, in which moisture, carbon dioxide and a small amount of other gas components are adsorbed by the activated alumina at the bottom of the adsorber, and then nitrogen is adsorbed by the molecular sieve filled on the upper part of the activated alumina. The oxygen is a non-adsorbed component and is discharged as product gas from the top outlet of the adsorber to the oxygen balance tank for storage. Suitable for hospitals, oxygen cylinder flushing, etc.
Technical indicators Oxygen production:5 ~ 200Nm3/h Purity of oxygen:90% ~ 96% Oxygen pressure:0.1 ~ 0.4MPa(Adjustable) Dew point:-40ºC or -60ºC
The PSA oxygen generator uses zeolite molecular sieve as an adsorbent. It utilizes the difference in the adsorption amount of oxygen and nitrogen in the compressed air on the surface of the molecular sieve. Through the principle of pressurized adsorption and depressurized desorption, it is a fully automated equipment that directly produces oxygen from compressed air.
The PSA oxygen generator uses zeolite molecular sieve as an adsorbent. It utilizes the difference in the adsorption amount of oxygen and nitrogen in the compressed air on the surface of the molecular sieve. Through the principle of pressurized adsorption and depressurized desorption, it is a fully automated equipment that directly produces oxygen from compressed air.
PSA oxygen production equipment (pressure swing adsorption oxygen production equipment) uses PSA special molecular sieve to selectively adsorb impurities such as nitrogen, carbon dioxide and water in the air under normal temperature and pressure conditions to obtain high purity oxygen (93%± 2). Therefore, it is widely used in the fields of oxygen cylinder flushing, steelmaking boosting, blast furnace oxygen enrichment, pulp bleaching, glass furnace, wastewater treatment and other fields.
Our company specializes in designing and selling PSA oxygen generators. PSA oxygen generators can be widely used in steel cutting, oxygen-enriched combustion, hospital oxygen, glass production, papermaking and other industries and fields. Different users in different industries use different oxygen. Requirements, provide personalized and professional oxygen production equipment to fully meet the gas requirements of different users. Pressure swing adsorption oxygen production equipment (it has the advantages of low equipment cost, small size, light weight, simple operation, convenient maintenance, low operating cost, fast on-site oxygen production, convenient switching, and pollution-free). It can be suitable for steel cutting, rich Oxygen-assisted combustion, hospital oxygen, etc.) and cryogenic oxygen equipment (high purity of oxygen, long service life of the equipment, can produce nitrogen, oxygen, argon at the same time, suitable for oxygen station construction, hospital oxygen, smooth cutting of steel).
Technical indicators Oxygen production:5 ~ 200Nm3/h Purity of oxygen:90% ~ 96% Oxygen pressure:0.1 ~ 0.4MPa(Adjustable) Dew point:-40ºC or -60ºC
