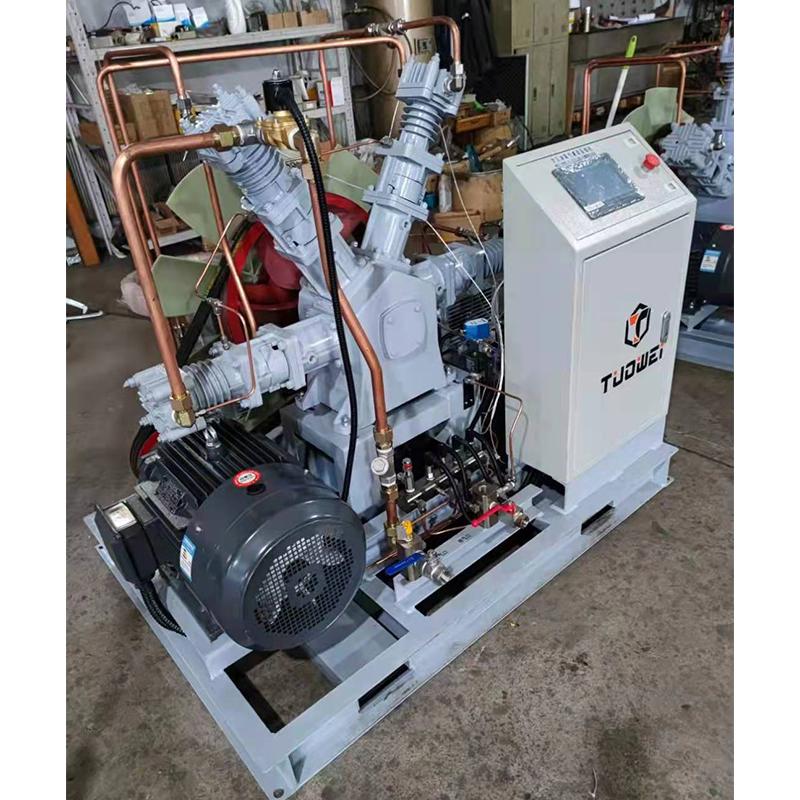

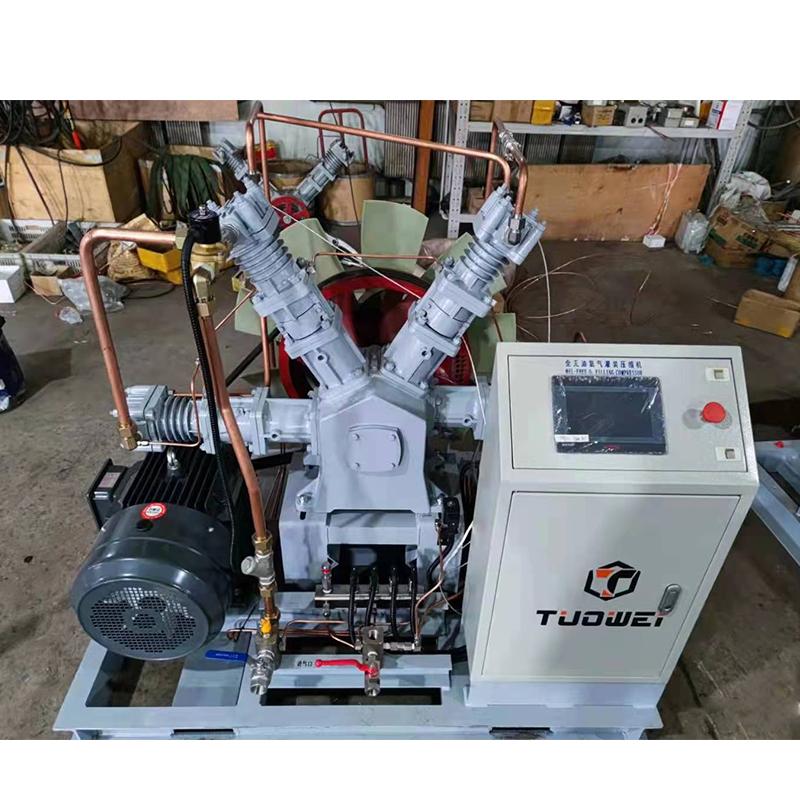

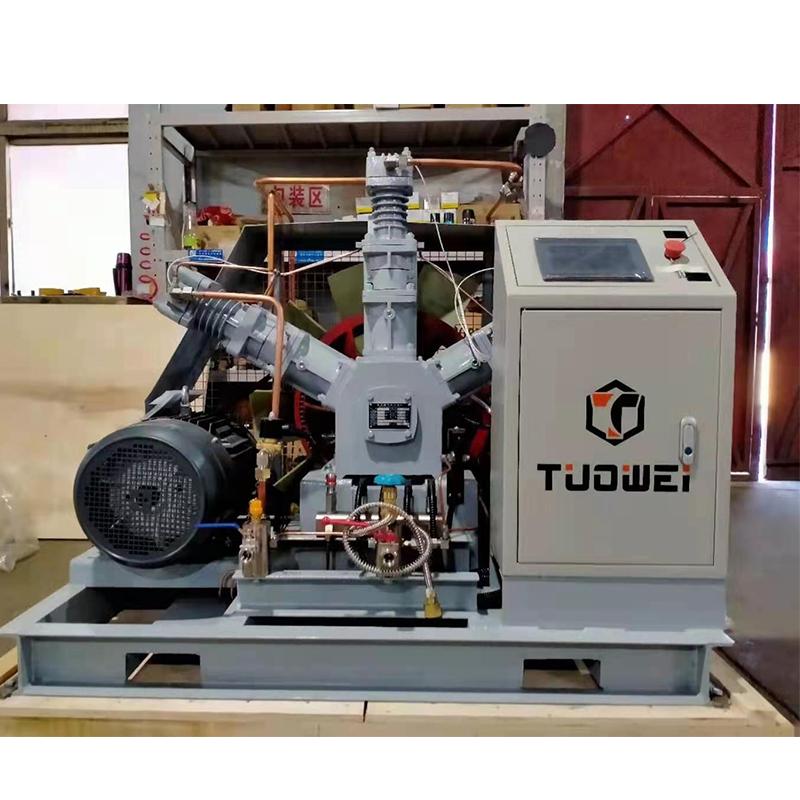

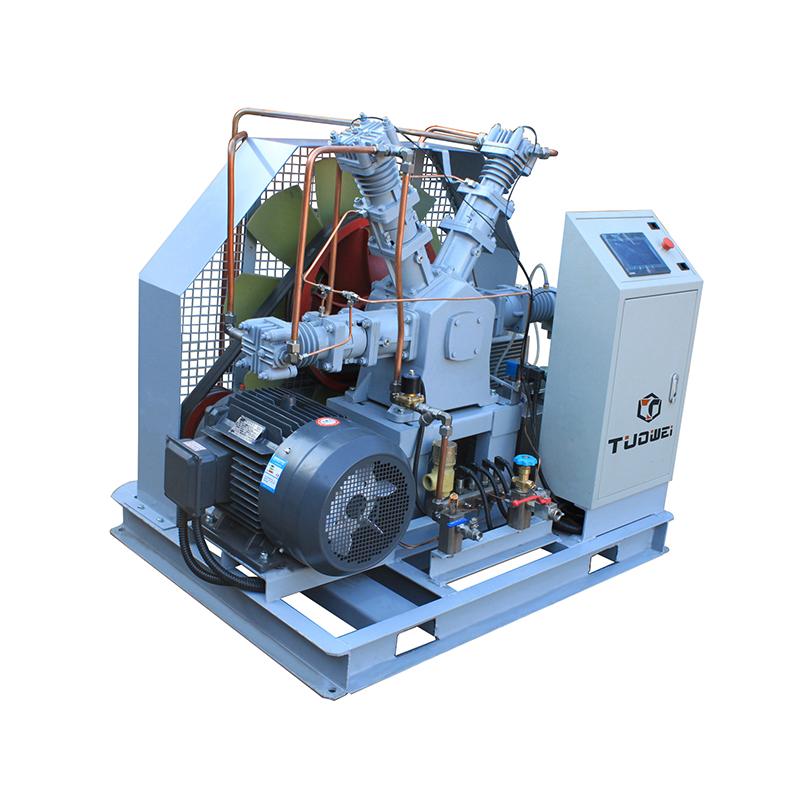

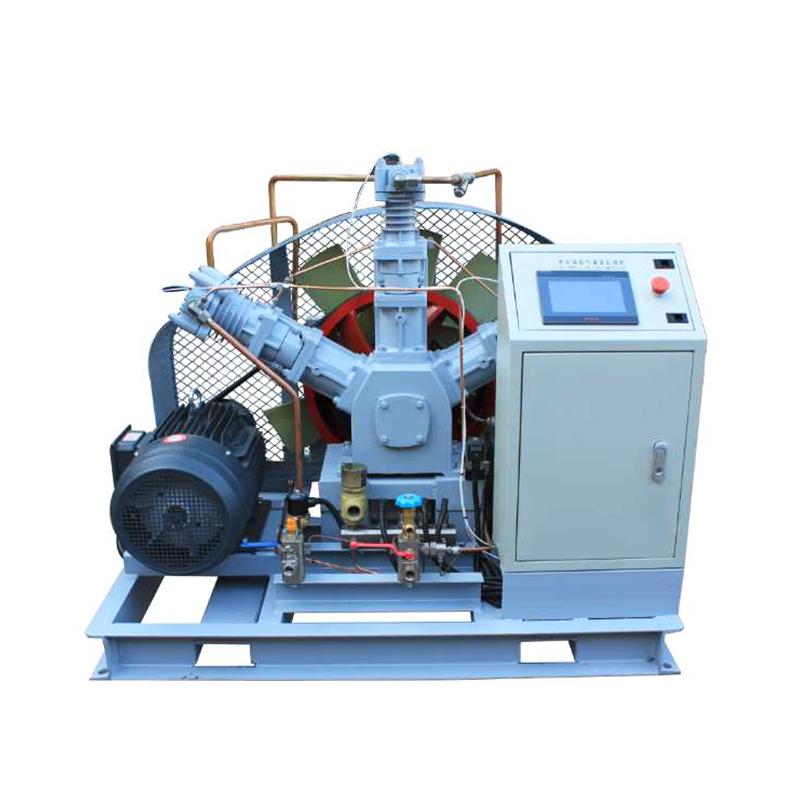

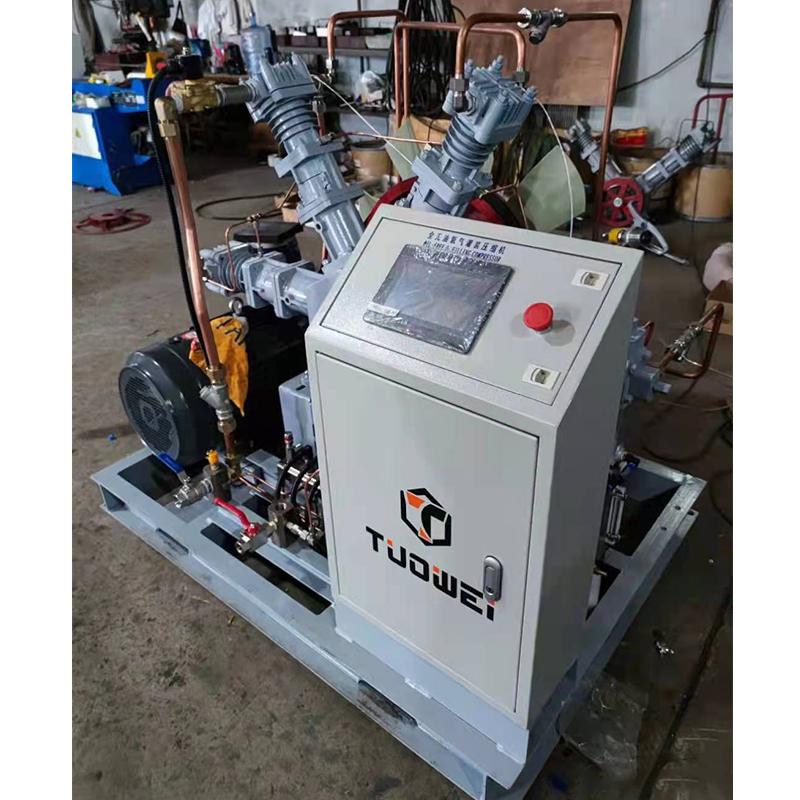

The oil-free oxygen compressor is especially suitable for medical oxygen compression and oxygen cylinder filling. The biggest advantage of this series is safety and reliability. 100% oil-free, that is, the whole machine is completely oil-free. No pollution to the compressed medium, simple control, automatic working system, no leakage, and convenient maintenance are the reasons why customers choose.
Technical Parameters:
Displacement: 5 ~ 140Nm3/h
Inlet pressure: 2~4bar adjustable
Exhaust pressure: 15/20mpa (150/200 bar)
Cooling method: air cooling, water cooling
Product Description:
Oil-free oxygen booster compressor is widely used in the gas supply system of chemical industry, food and beverage, electronic instrument, transportation and communication, textile, scientific research and other departments (such as: pressure detection, pressure test, blow molding, filling, diesel engine start, etc.), high pressure Oxygen cabin, pipe cleaning, etc.).
Product Parameter
Model
Intake pressure
(Mpa)
Exhaust pressure
(Mpa)
O2 flow
(Nm3/h)
Motor Power
(KW)
Import size
Export size
Size(mm)
Weight(kg)
Rotating speed(r/min)
GOW-5/4-150
0.4
15
5
4.0
Rc1/2
G5/8
1350*850*1100
380
470
GOW-10/4-150
0.4
15
10
5.5
Rc1/2
G5/8
1350*1050*1100
410
470
GOW-15/4-150
0.4
15
15
7.5
Rc1/2
G5/8
1350*1050*1100
420
640
GOW-20/4-150
0.4
15
20
7.5
Rc1/2
G5/8
1350*1050*1100
430
580
GOW-25/4-150
0.4
15
25
11.0
Rc1/2
G5/8
1350*1050*1100
430
640
!!If there are technical parameters that require greater displacement, please send me a message!!!
Company Information
Previous :
20MPa Hospital Medical Filling Cylinder Pure Oxygen Gas Booster CompressorNext :
In Stock 20Nm3/h 150bar Oil-free Medical Oxygen Booster CompressorIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
10hp to 175hp Permanent Magnet Frequency Conversion Energy Saving Screw Air Compressor Read More
7.5Kw To 250 Kw Electric Direct Drive Rotary Screw Air Compressor Read More
11kW 15HP 16bar Combined Rotary Screw Air Compressor with Dryer, Air Tank for Laser Cutting Machines Use Read More
Silent Aircompressors Oilless Oil Free Belt Driven Scroll Air Compressor for Sale Read More
185CFM Diesel Portable Mining Screw Air Compressor Read More
The oil-free oxygen compressor is especially suitable for medical oxygen compression and oxygen cylinder filling. The biggest advantage of this series is safety and reliability. 100% oil-free, that is, the whole machine is completely oil-free. No pollution to the compressed medium, simple control, automatic working system, no leakage, and convenient maintenance are the reasons why customers choose.
The oil-free oxygen compressor is especially suitable for medical oxygen compression and oxygen cylinder filling. The biggest advantage of this series is safety and reliability. 100% oil-free, that is, the whole machine is completely oil-free. No pollution to the compressed medium, simple control, automatic working system, no leakage, and convenient maintenance are the reasons why customers choose.
The oil-free oxygen compressor is especially suitable for medical oxygen compression and oxygen cylinder filling. The biggest advantage of this series is safety and reliability. 100% oil-free, that is, the whole machine is completely oil-free. No pollution to the compressed medium, simple control, automatic working system, no leakage, and convenient maintenance are the reasons why customers choose.
The oil-free oxygen compressor is especially suitable for medical oxygen compression and oxygen cylinder filling. 100% oil-free, that is, the whole machine is completely oil-free. No pollution to the compressed medium, simple control, automatic working system, no leakage, and convenient maintenance.
Filter media: filter element adopts many kinds of materials, such as glass fiber, wood pulp filter paper , stainless steel sinter fiber web and stainless steel wire woven. Nominal filtration rating: 0.01μ ~ 1000μ Operating pressure:21bar-210bar (Hydraulic Liquid Filtration) The critical fact for the proper operation of the engine is to keep the lubricating oil clean, or to ensure no corrosive impurity inside the lubrication oil.
screw compressor Intake Valve with rational, beautiful and environment design. Rigorous treated on noise reduction, opening, closing and sealing.

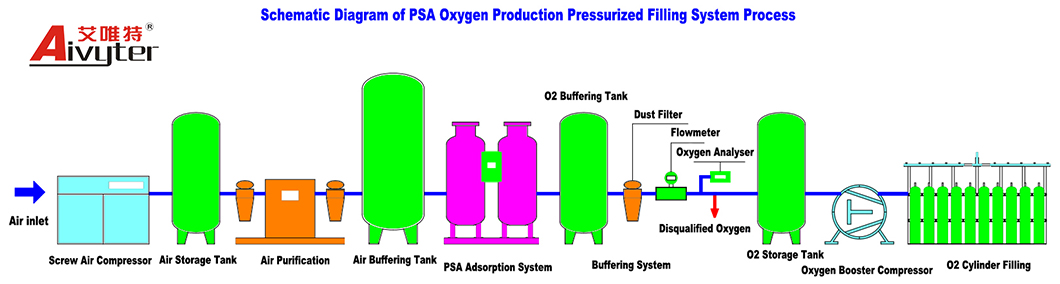

PSA oxygen production equipment (pressure swing adsorption oxygen production equipment) uses PSA special molecular sieve to selectively adsorb impurities such as nitrogen, carbon dioxide and water in the air under normal temperature and pressure conditions to obtain high purity oxygen (93%± 2). Therefore, it is widely used in the fields of oxygen cylinder flushing, steelmaking boosting, blast furnace oxygen enrichment, pulp bleaching, glass furnace, wastewater treatment and other fields.
