Our company specializes in designing and selling PSA oxygen generators. PSA oxygen generators can be widely used in steel cutting, oxygen-enriched combustion, hospital oxygen, glass production, papermaking and other industries and fields. Different users in different industries use different oxygen. Requirements, provide personalized and professional oxygen production equipment to fully meet the gas requirements of different users. Pressure swing adsorption oxygen production equipment (it has the advantages of low equipment cost, small size, light weight, simple operation, convenient maintenance, low operating cost, fast on-site oxygen production, convenient switching, and pollution-free). It can be suitable for steel cutting, rich Oxygen-assisted combustion, hospital oxygen, etc.) and cryogenic oxygen equipment (high purity of oxygen, long service life of the equipment, can produce nitrogen, oxygen, argon at the same time, suitable for oxygen station construction, hospital oxygen, smooth cutting of steel).
Product Details：

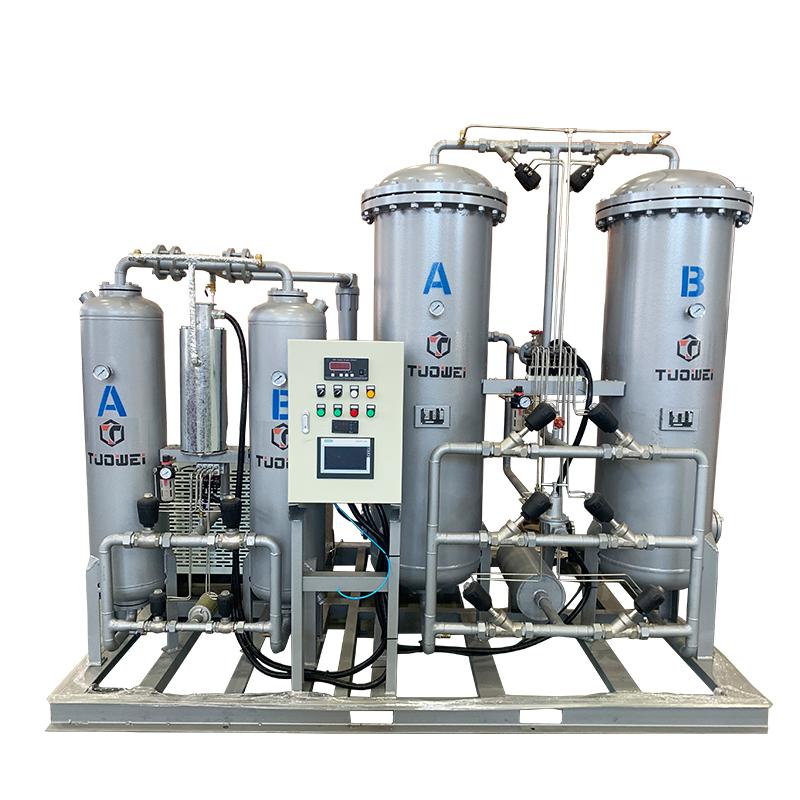

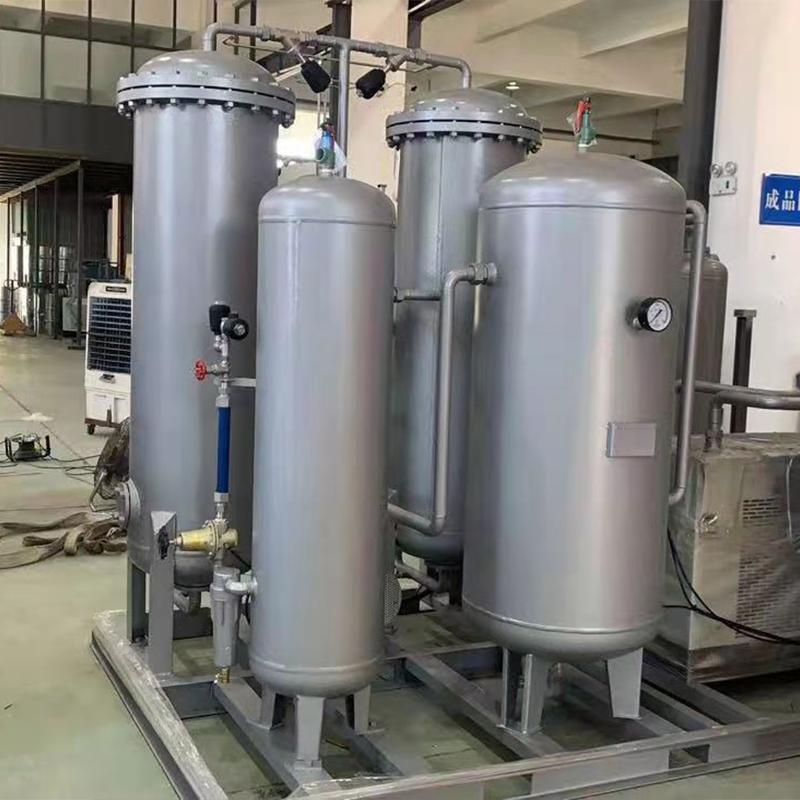

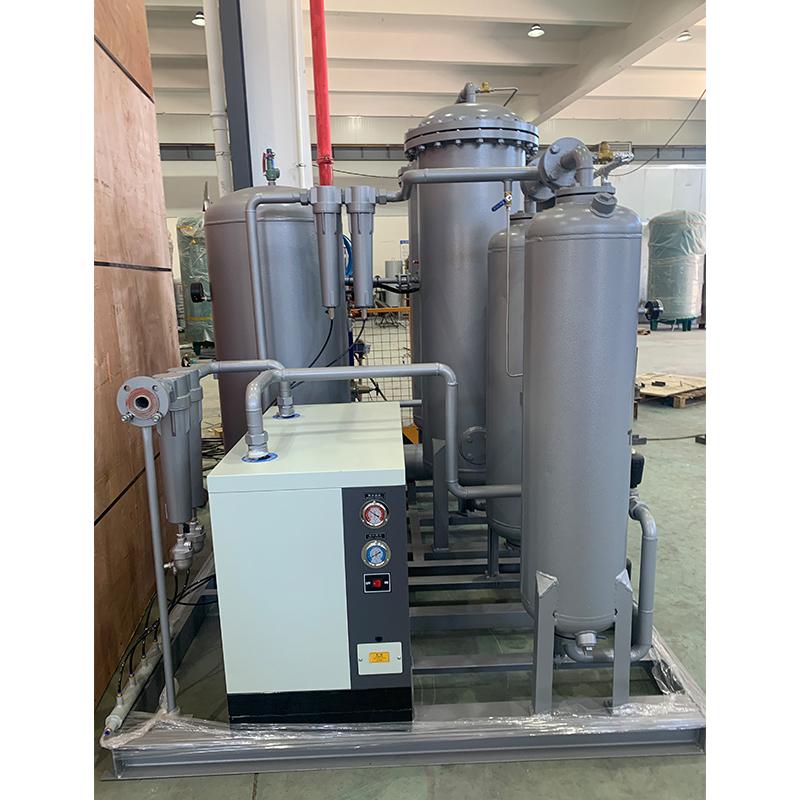

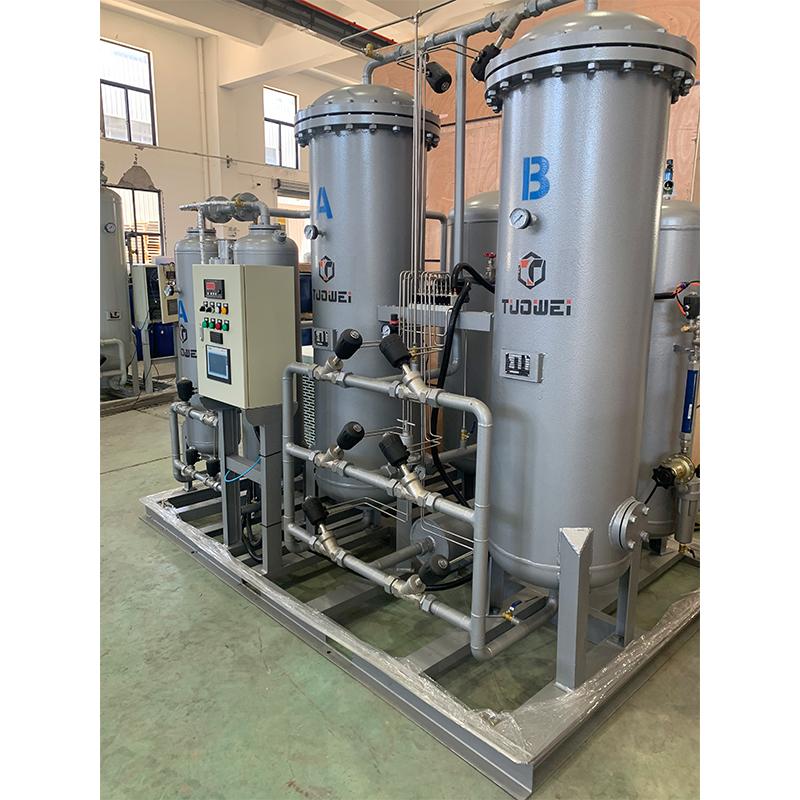

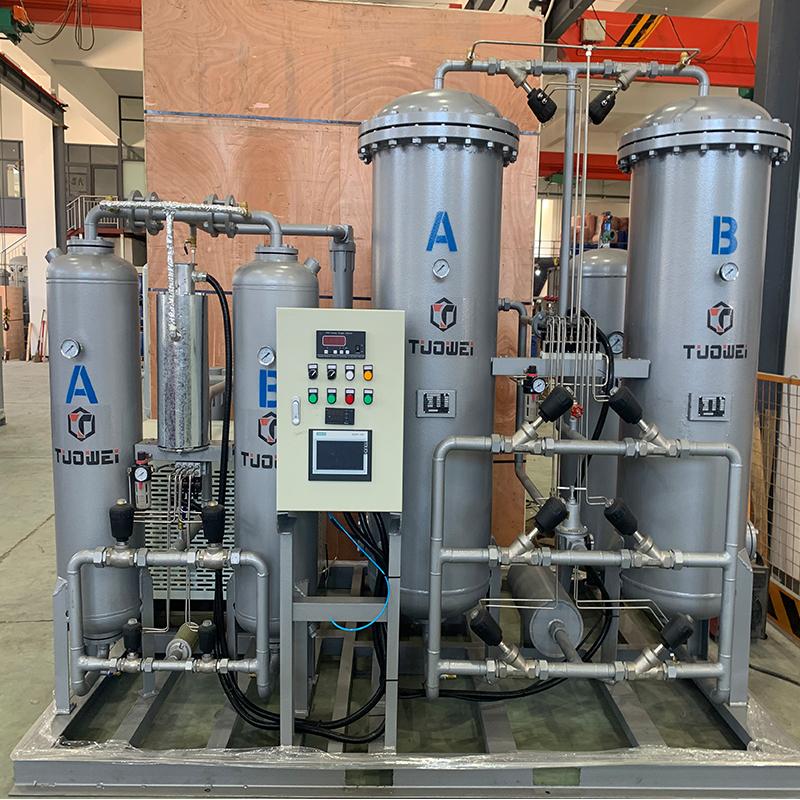

Oxygen Equipment working principle: The use of molecular sieve physical adsorption and desorption technology. The oxygen-making machine is filled with molecular sieve, which can adsorb nitrogen in the air when it is pressurized. The remaining non-absorbed oxygen is collected and purified to become high-purity oxygen. When the molecular sieve is decompressed, the adsorbed nitrogen is discharged back into the ambient air, and when the next pressure is applied, the nitrogen can be adsorbed and oxygen can be produced. The medical oxygen-producing equipment adopts the world advanced PSA (pressure swing adsorption) air separation and oxygen-producing technology, which realizes the separation of oxygen and nitrogen based on the difference of the adsorption ability of the adsorbent (zeolite molecular sieve) to the oxygen and nitrogen in the air. When the air enters the bed which contains the adsorbent, the nitrogen adsorption ability is strong, but the oxygen is not adsorbed, thus may obtain the high density oxygen at the adsorption bed outlet. Because the adsorbents have the characteristic that the amount of adsorbents changes with the pressure, the adsorption and desorption can be carried out alternately by changing the pressure.
Technical characteristics
1). Fully automatic
All systems are designed for unattended operation and automatic regulation of nitrogen demand.
2). Low space requirement
The design and instrumentation make the factory very compact and can be assembled on prefabricated slides in the factory.
3). Quick Start
The start-up time only takes 5 minutes to obtain the required oxygen purity, so these devices can be turned on and off according to changes in oxygen demand.
4). High reliability
The oxygen purity is constant, continuous and stable operation, very reliable, the available time of the factory is always better than 93%±2.
5). Molecular sieve life
The expected life of the molecular sieve is about 15 years, that is, the entire life of the nitrogen-making equipment, so there is no need for replacement costs.
6). Adjustable
By changing the flow rate, you can deliver oxygen with just the right purity.
Psa Oxygen Generator Technical Parameters
Model
O2 flow
O2 purity
Air consumption
Dimensions(mm)
m3/h
%
≥ m3/min
L*W*H
SPO93-5
5
93±2
1.08
2500×900×1900
SPO93-10
10
2.17
2500×1300×2100
SPO93-20
20
4.33
3000×1600×2200
SPO93-30
30
6.5
3400×2000×2450
SPO93-40
40
8.7
Purification system:2500×1600×2400
Oxygen system:3000×1300×2400
SPO93-50
50
10.83
Purification system:3000×1450×2400
Oxygen system:3100×1300×2400
SPO93-60
60
13
Purification system:1250×1200×1800
Oxygen system:3100×1600×2400
SPO93-70
70
15.17
Purification system:1250×1200×1800
Oxygen system:2600×2100×2400
SPO93-80
80
17.33
Purification system:1250×1200×1800
Oxygen system:2600×2100×2480
SPO93-90
90
19.5
Purification system:1300×1300×1800
Oxygen system:2800×2200×3200
SPO93-100
100
21.7
Purification system:1300×1300×1800
Oxygen system:2800×2200×3200
SPO93-120
120
26
Purification system:1650×1500×2100
Oxygen system:3200×2700×2400
SPO93-150
150
32.5
Custom size
SPO93-180
180
39
Custom size
SPO93-200
200
43.3
Custom size
Application industry
FAQ:
Q1: What's the system installation environment requirement?
A1:The system requires a dry ventilated environment.
Q2.What terms of payment you use?
A2:T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency
Q3.Do you offer customized services?
A3:Yes, We offer customized products according to different oxygen demand.
Q4. Before get a prompt quotation,which technical information is required?
A4:For hospital use:
A.Need to provide the Hospital oxygen servey, we would send the required information data table.
B.For other application:
1)O2 flow rate: _____Nm3/hr
2) O2 purity: _____%
3) O2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:
Q5.What about your after-sale services?
A5:We provide a variety of gas supply solutions according to customer requirements, and also provide users with repair and maintenance
