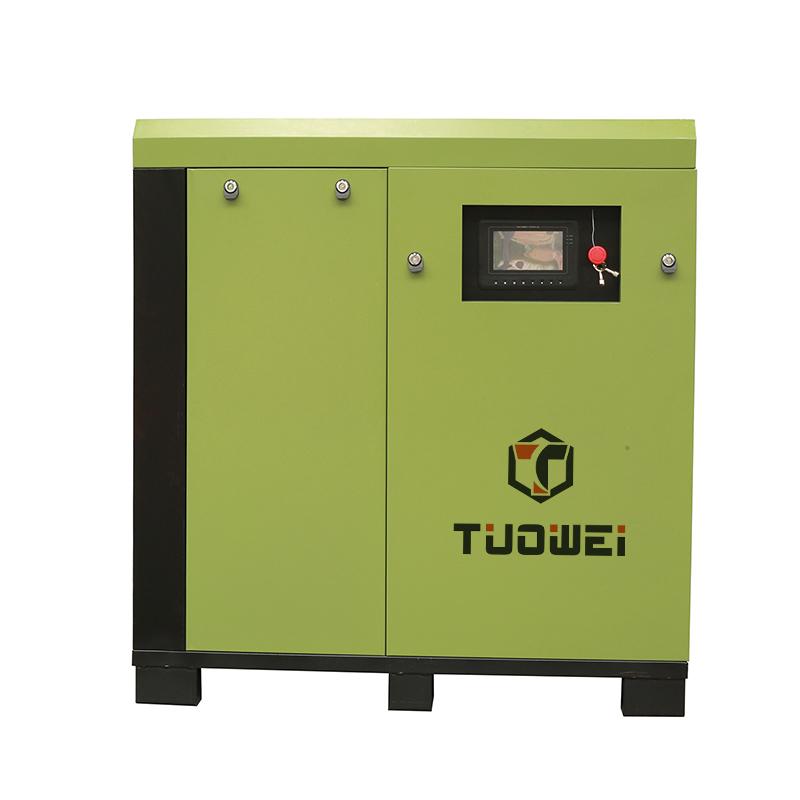

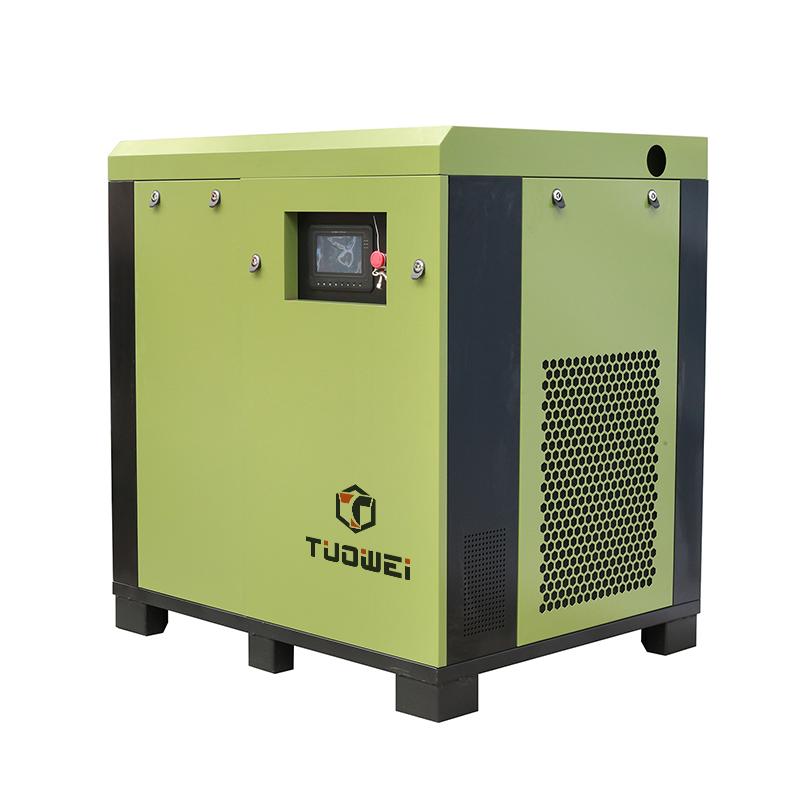

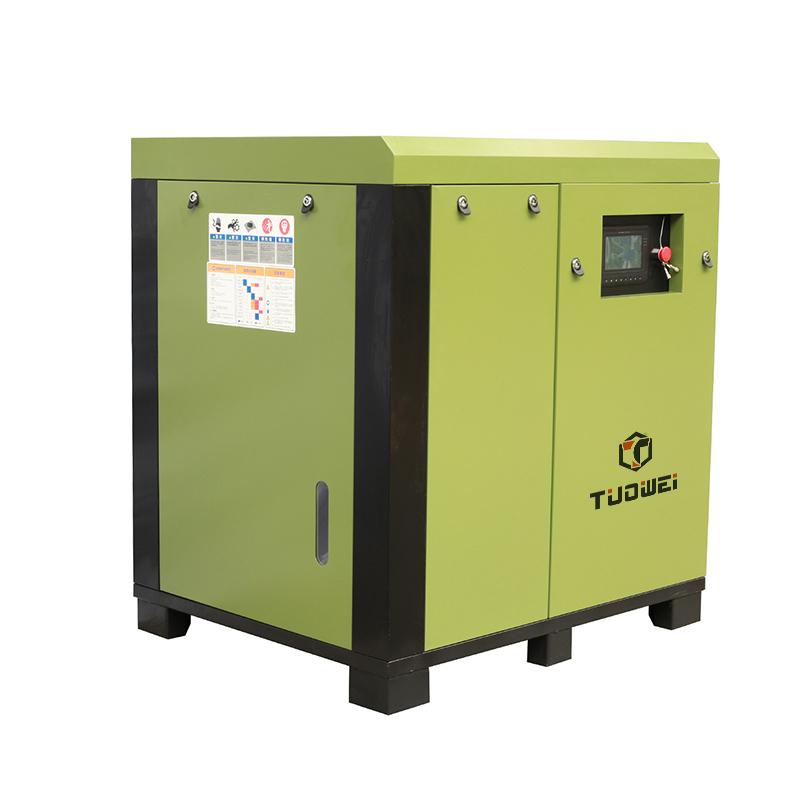

45kw 60hp Permanent Magnet Synchronous Frequency Conversion Screw Air Compressor Is Equipped with a Dedicated Frequency Converter, Which Has a Wider Frequency Conversion Range.the Maximum Energy Saving Effect Can Be Achieved.
Item No.:
SGPM 45Payment:
L/C , T/T , D/P , FOB,CIFColor:
Blue or according to your needsGoods_stock:
1000Shipping port:
guangzhouLead Time:
7~15 DayPower::
Screw Air Compressor (SGD）Customization::
7.5KW ~ 250KWPayment Terms::
380V 50hz 3ph ( According to Your Request)Shipping Port::
WelcomeLead Time::
1 Year for Machinery Warranty

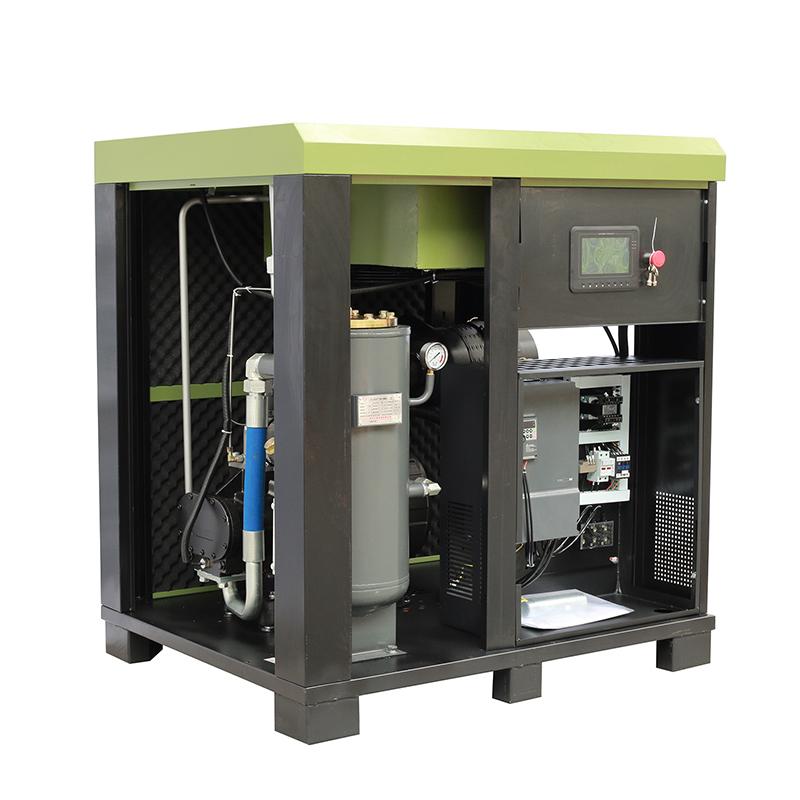

Permanent Magnetic Frequency Conversion Screw Air Compressor
45kw 60hp Permanent Magnet Synchronous Frequency Conversion Screw Air Compressor Is Equipped with a Dedicated Frequency Converter, Which Has a Wider Frequency Conversion Range.the Maximum Energy Saving Effect Can Be Achieved.
Product features:
Model
SGD 18
Discharge Pressure(Mpa)
0.7 / 0.8 /1.0 /1.2
Air Delivery(m³/min)
7.4/7.0/6.2/5.6
Power(kW)
45
Lubricant(L)
30
Drive Method
Variable frequency starting
Cooling
Air
Discharge Temperature(℃)
≤Ambient temperature±15℃
Electricity(V/Hz)
380V/50Hz(customizable)
Weight(kg)
636
Dimension(mm)
1400*1000*1345
Air Outlet Pipe Diameter(inch/mm)
G1 1/2''

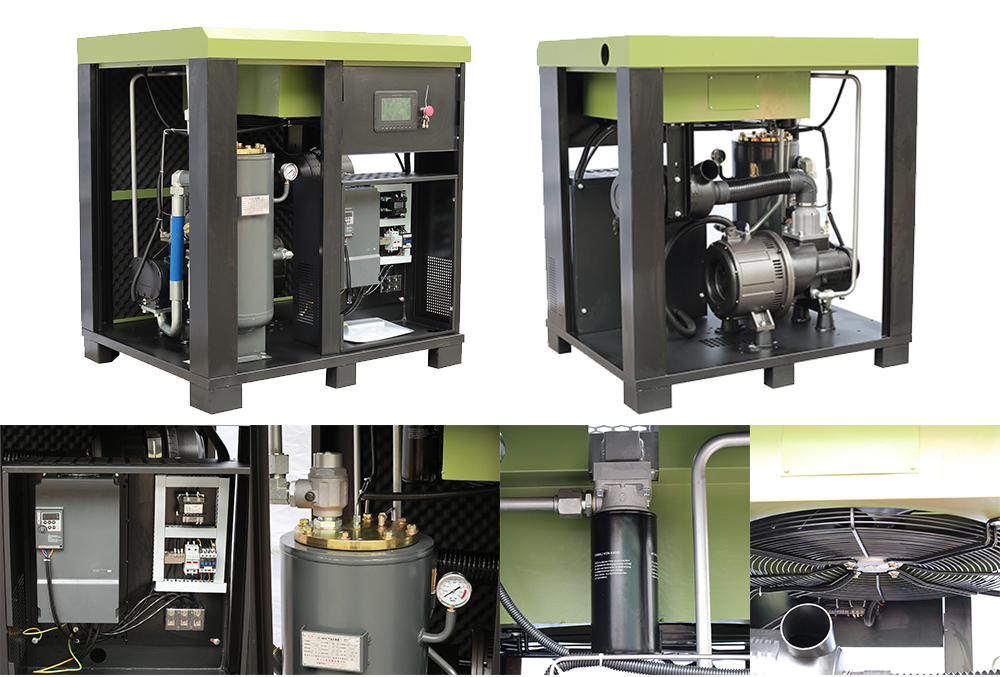

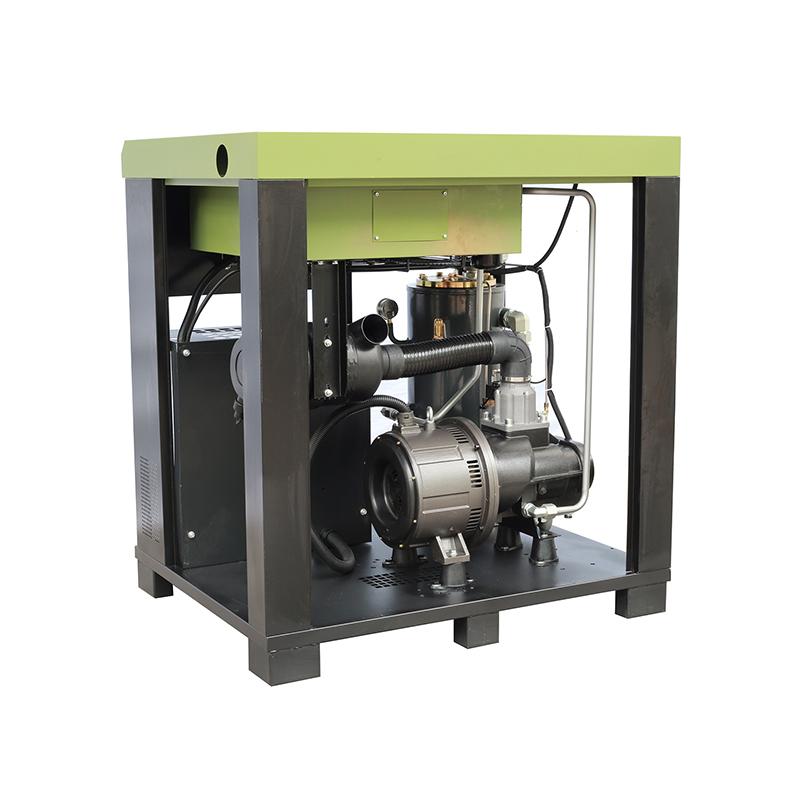

1.Permanent magnet motor and the compressor airend shaft integrally embedded using direct structure, more compact, the transmission efficiency of 100%
2.No Motor Bearing: Eliminates Motor Bearing Fault Points
3.Equipped with High-efficiency Permanent Magnet Motor, More Energy Saving
4.Small Motor, Typically About 1/3 of an Ordinary FM Motor Size, Easy Removal
5.Permanent magnet synchronous motor, no loss of magnetism at 120ºC, service life over 15 years
6.The latest generation intelligent touchscreen controller:The latest touch screen interface allows simple and intelligent control of the compressor. Pressure and scheduling time can be easily programmed, allowing you to automatically start and stop the compressor to match the production time. (Configurable remote operation and real-time monitoring functions)
Product Parameters
Model
Working Pressure
Capacity
Motor Power
Dimension
(mm)
Net Weight
(KGS)
Air Outlet Pipe Diameter
Psi
bar
Cfm
m3/min
kw/hp
SGPM08
102
7
42.4
1.2
7.5/10
900*670*850
200
1/2’’
116
8
38.8
1.1
145
10
33.5
0.95
174
10
28.3
0.8
SGPM11
102
7
58.3
1.65
11/15
1080*750*1020
280
3/4’’
116
8
53
1.5
145
10
45.9
1.3
174
12
38.8
1.1
SGPM15
102
7
88.3
2.5
15/20
1080*750*1020
300
3/4’’
116
8
81.2
2.3
145
10
74.2
2.1
174
12
67.1
1.9
SGPM18
102
7
113
3.2
18.5/25
1380*850*1185
430
1’’
116
8
105.9
3
145
10
95.3
2.7
174
12
84.7
2.4
SGPM22
100
7
134.2
3.8
22/30
1380*850*1185
450
1’’
116
8
127.1
3.6
145
10
113
3.2
174
12
95.3
2.7
SGPM30
102
7
187.1
5.3
30/40
1380*850*1185
500
1’’
116
8
176.6
5
145
10
158.9
4.5
174
12
141.2
4
SGPM37
102
7
240.1
6.8
37/50
1500*1000*1345
650
11/2"
116
8
218.9
6.2
145
10
197.7
5.6
174
12
176.6
5
SGPM45
102
7
261.3
7.4
45/60
1500*1000*1345
680
11/2"
116
8
247.2
7
145
10
218.9
6.2
174
12
197.7
5.6
SGPM55
102
7
353.1
10
55/75
1800*1250*1670
1150
2"
116
8
339
9.6
145
10
300.1
8.5
174
12
268.4
7.6
SGPM75
102
7
473.2
13.4
75/100
1800*1250*1670
1200
2"
116
8
444.9
12.6
145
10
395.5
11.2
174
12
353.1
10
Motor Protection Class: IP23/IP54/IP55 or as per your required
Voltage: 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.

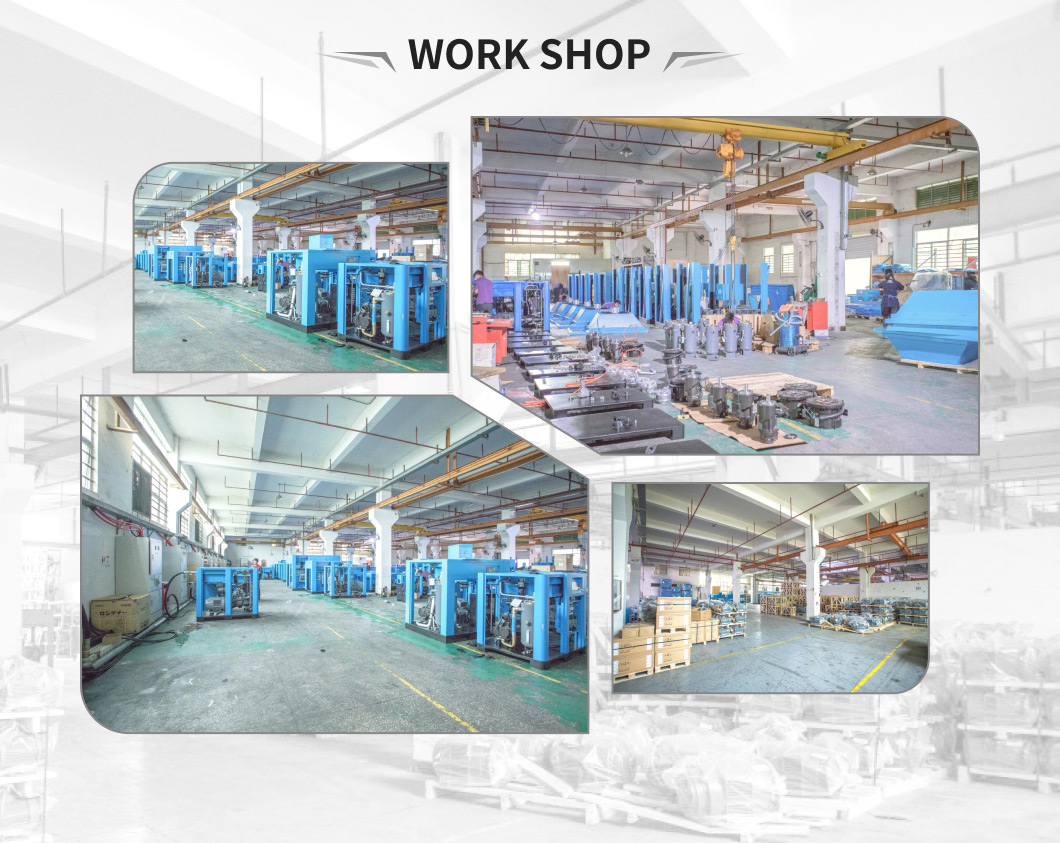

Company strength
FAQ
Q1: What is the rotor speed for the air end?
A1: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
