Silent AC Power Water Lubricated Oil Free Screw Air Compressor

Silent AC Power Water Lubricated Oil Free Screw Air Compressor

Water-lubricated oil-free screw air compressors are widely used in industries with high-quality, high-quality air sources, and are the first choice for oil-free compressed air. For example: pharmaceutical, food, electronics, chemical, packaging and other industries. 100% pure oil-free compressed air is a necessary step to ensure satisfactory process and product quality, thereby ensuring the safe and risk-free production of high-end products.

  • Brand:

    Aivyter
  • Product Details

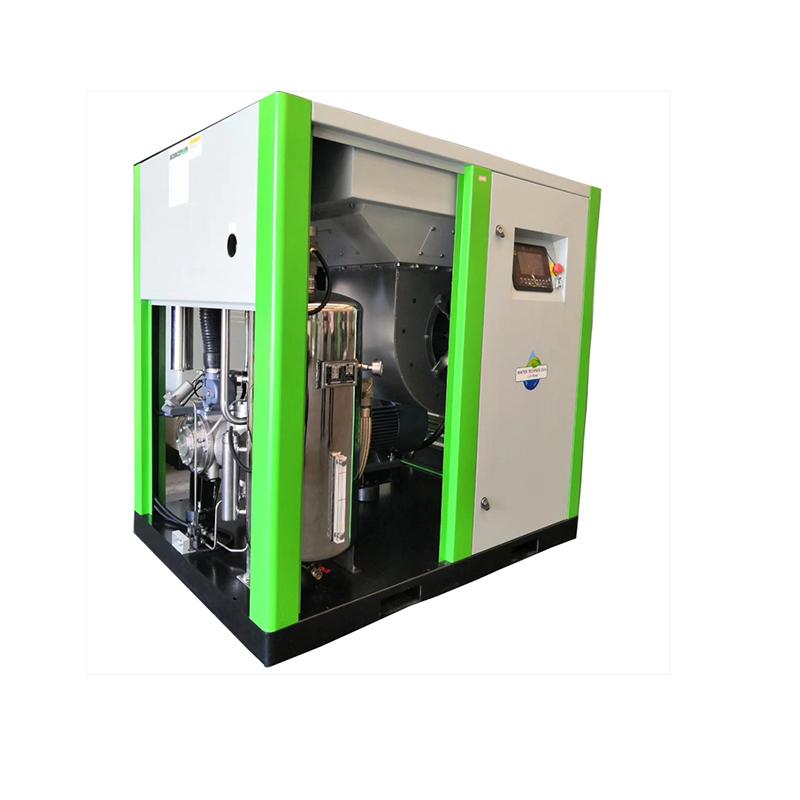

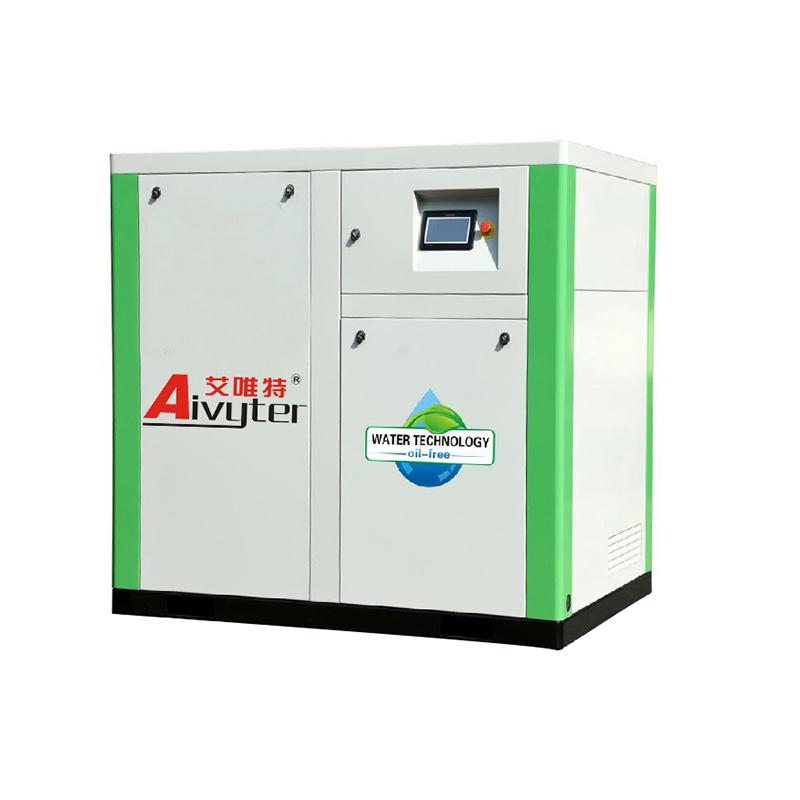

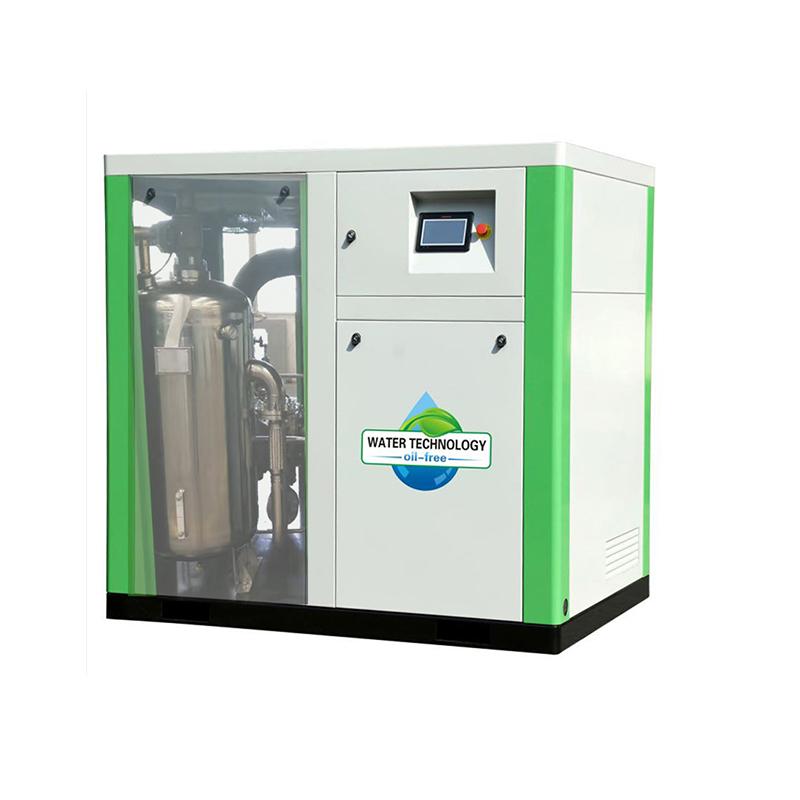

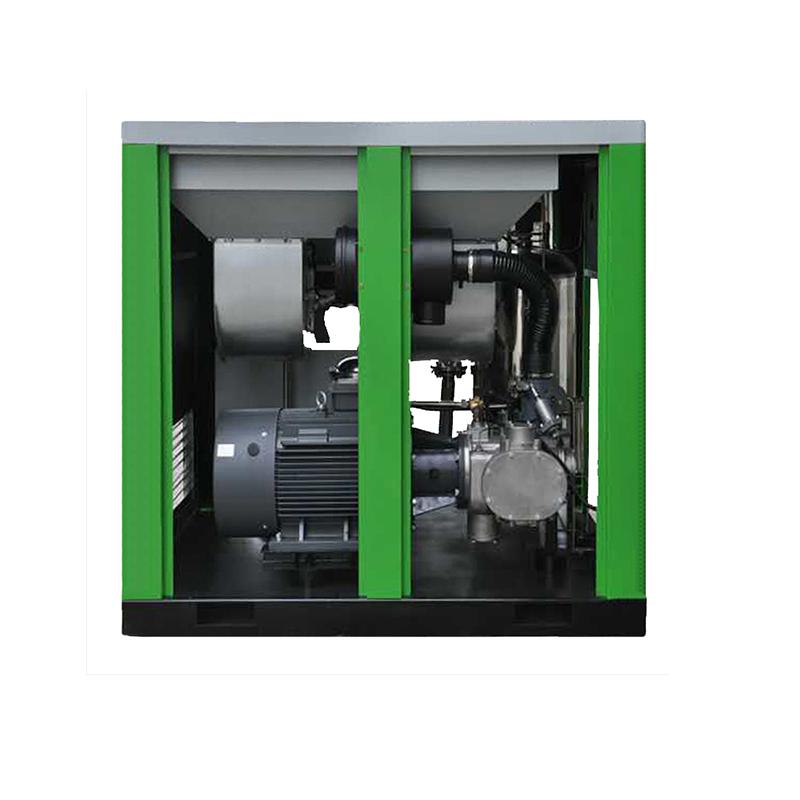

Silent AC Power Water Lubricated Oil Free Screw Air Compressor

Advantages:

World top-level compressor structure——Z screw air end
Oil free——100% oil free
Use water for lubricating,sealing and cooling
Isothermal compression
Large capacity , low speed
Low temperature compression(about 40℃)
Inter-cooler & after cooler unnecessary
Low noise level , low vibration , no speed up gear
Low viscosity of lubricated water
Separate from air easily
No need to dispose the waste oil as we don't use oil
No oil filters & air/oil separator , which are energy saving and good to the environment as there is no industrial waste
Less spare parts , easy to dismantle & assemble , reduce the maintenance cost & save time

Technical Parameters of Oil-free Water Lubricated Electric Screw Air Compressor

Model Working pressure Capacity Motor power
Noise
dB(A)
Inlet and outlet pipe dia. of cooling water
Cooling water
volume
Lubricating
water
Dimension(mm) Net weight Air outlet
bar m3/min kw/hp
Inlet water
temp. 32(T/H)
L L*W*H KGS
SGM08 8 1.17  7.5/10 58 3/4" 2 10
800*800*1100(A)
800*800*1100(W)
470 3/4"
10 1.05
12.5 0.81
SGM11 8 1.65  11/15 60 1" 2.5 26
1200*760*1300(A)
1200*760*1300(W)
580 3/4"
10 1.42
12.5 1.10
SGM15 8 2.43  15/20 63 1" 3.5 26
1200*760*1300(A)
1200*760*1300(W)
620 3/4"
10 2.17
12.5 1.80
SGM18 8 3.13  18.5/25 65 1" 4 30
1400*900*1450(A)
1400*900*1450(W)
680 1"
10 2.82
12.5 2.05
SGM22 8 3.52  22/30 65 1" 5 30
1400*900*1450(A)
1400*900*1450(W)
730 1"
10 3.21
12.5 2.78
SGM30 8 5.12  30/40 67 1 1/2" 7 40
1550*1150*1500(A)
1500*1150*1300(W)
1100 1 1/4"
10 4.43
12.5 3.63
SGM37 8 6.30  37/50 67 1 1/2" 9 40
1550*1150*1500(A)
1500*1150*1300(W)
1150 1 1/4"
10 5.33
12.5 4.77
SGM45 8 7.40  45/60 68 1 1/2" 10 90
1800*1300*1750(A)
1800*1300*1680(W)
1390 2"
10 6.30
12.5 5.56
SGM55 8 9.60  55/75 70 1 1/2" 12 120
1980*1400*1850(A)
1800*1300*1680(W)
1470 2"
10 8.55
12.5 7.67
SGM75 8 13.00  75/100 73 1 1/2" 18 120
2100*1600*1900(A)
1800*1300*1750(W)
2250
1630
2"
10 11.50
12.5 9.70
SGM90 8 14.80  90/120 73 1 1/2" 20 180
2400*1600*2000(A)
2200*1550*1800(W)
2650
2350
2 1/2"
10 13.90
12.5 12.60
SGM110 8 19.85  110/150 78 2" 24 180
2700*1600*2100(A)
2200*1550*1800(W)
2950
2460
2 1/2"
10 16.66
12.5 15.56
SGM132 8 23.10  132/175 78 2" 30 240
3000*1700*2250(A)
2200*1550*1800(W)
3500
2500
2 1/2"
10 19.97
12.5 16.90
SGM160 8 28.11  160/200 80 3" 35 240 3000*1800*2100(W) 3700 3"
10 25.45
12.5 22.52
SGM185 8 33.97  185/250 80 3" 38 300 3000*1800*2100(W) 3750 3"
10 29.00
12.5 25.21
SGM200 8 36.75  200/275 80 4" 42 300 3100*1850*2100(W) 3900 4"
10 32.78
12.5 29.24
SGM220 8 39.67  220/300 80 4" 47 360 3100*1850*2100(W) 4200 4"
10 36.75
12.5 29.63
SGM250 8 43.50  250/350 80 4" 53 360 3100*1850*2100(W) 4600 4"
10 39.30
12.5 34.00
Motor Protection Class:IP54/IP55 or as per your requests.
Voltage: 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
In the external dimensions: "A" means air cooling, and "W" means water cooling.
