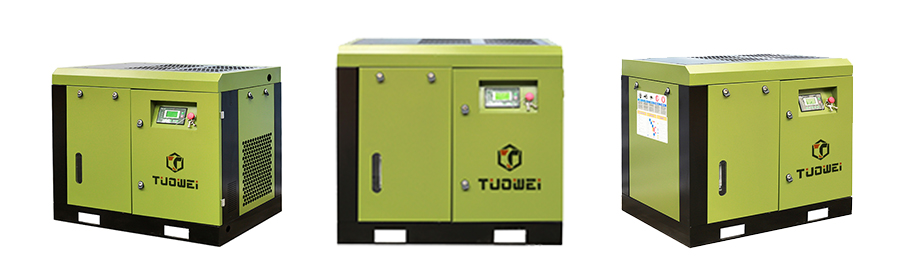

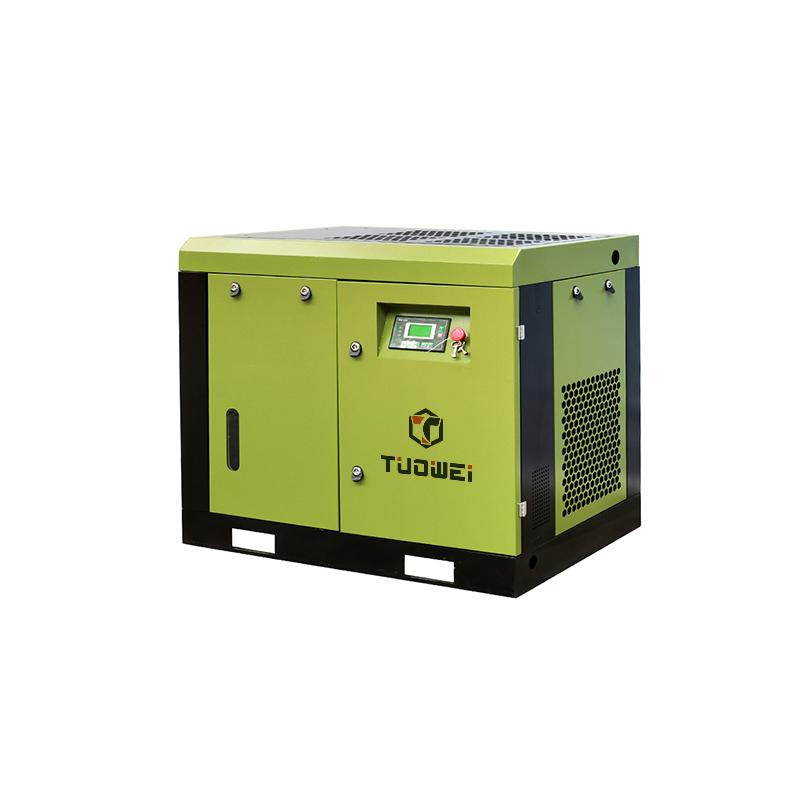

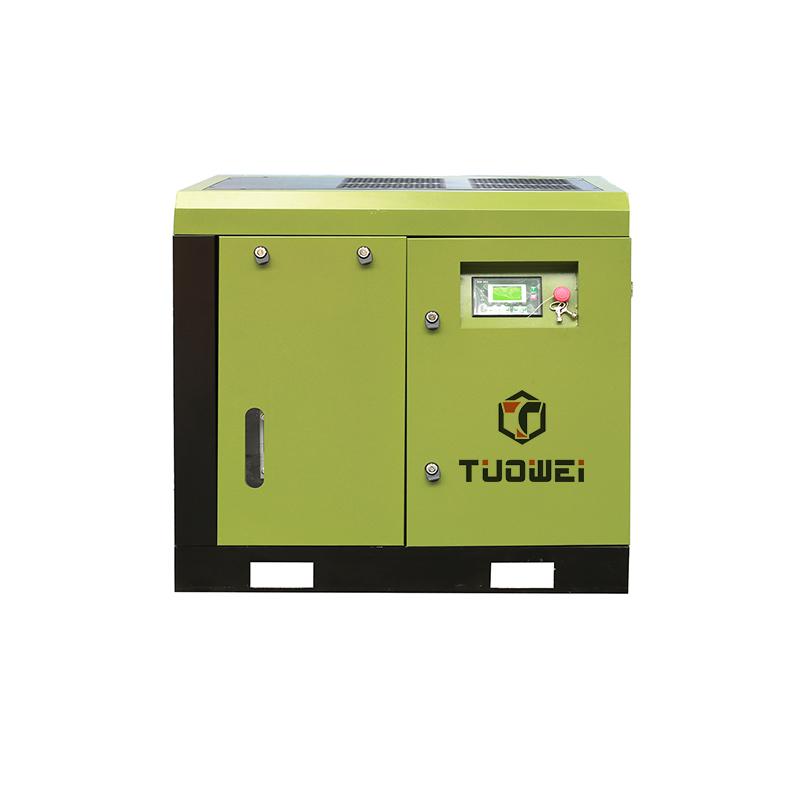

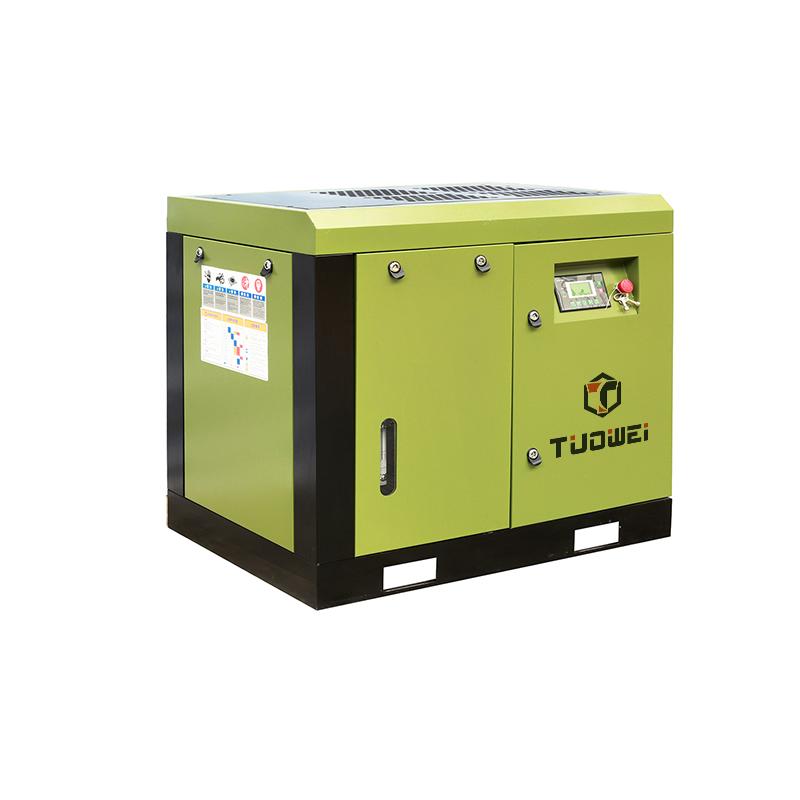

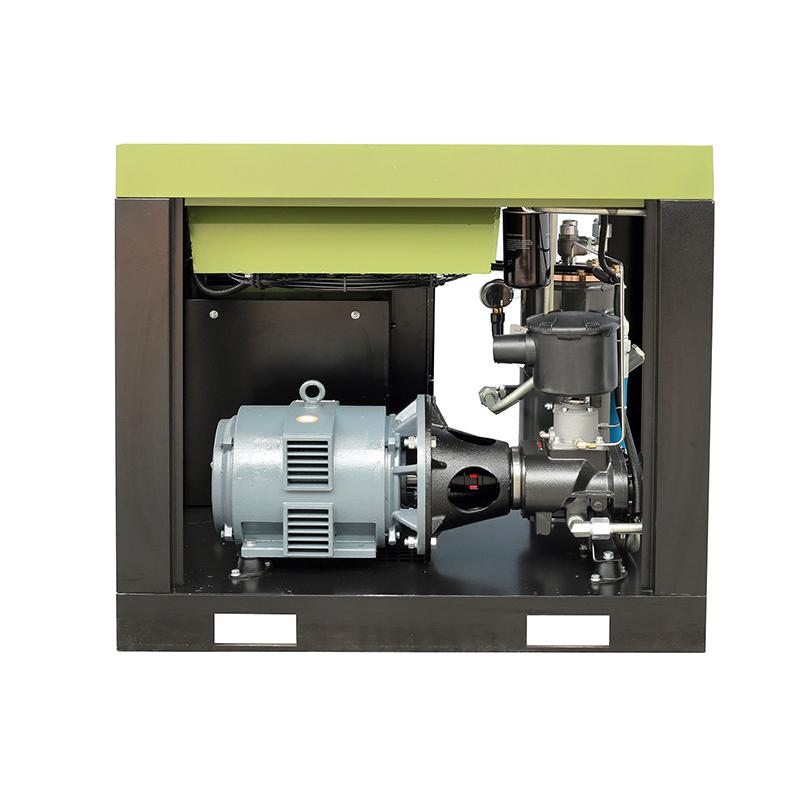

11KW 15HP Direct Drive Screw Air Compressor using IP23 motor, more safe, more efficient, more energy saving.
Item No.:
SGD 11Payment:
L/C , T/T , D/P , FOB,CIFProduct origin:
chinaGoods_stock:
1000Shipping port:
guangzhouLead Time:
7~15 Day11KW 15HP Electric Screw Air Compressor
Product Details:
1.With a exquistie shape and compact structure and cover a small area.
2.Large displacement ,stable pressure and high efficency
3.Low exhause temperature (only 7℃~10℃ higher than the ambient temperature)
4.Safe ,liable,smooth operation ,little noise and long maintenance cycle and using life
5.The intelligent control system completely satisfy the continuous cooperation without man work
| Model | SGD 11 | |||
| Type of Cooling | Air Cooling/Water cooling | |||
| Working Pressure( bar) | 7/8/10/12 | |||
| Air Delivery(cfm / m3/min) | 1.65/1.5/1.3/1.1 | |||
| Type of Driving | Driect driven | |||
| Voltage | 380(220,400,415)V/50(60)Hz/3Phase or Can be customized | |||
| Exhaust Oil Volum | 1~3ppm | |||
| Outlet Air Humidity (℃) | ambient temperature+15℃ | |||

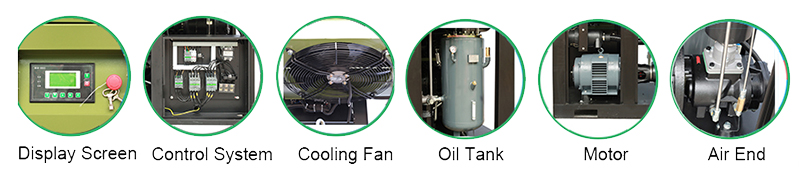

Air inlet valve
World-renowned brands, air input can be automatically adjusted from 0% to 100%, reducing operation cost.
Air end
The technology of air end is original from Europe, and made in China with superior technique, the powerful heart ensures good performance of the whole air compressor.
Air filter
With low flow resistance design and large dust holding capacity to make sure the high purity of inlet air.
Control panel
Easy to operate and continuously working for 24 hours unattended, English and Russian languages for choosing, accept OEM.
Electric control system
Using famous brands, like SIEMENS, Schneider, greatly improve the service life.
Electric motor
Well-known brand of high-performance electric motor, SKF bearing, high-class insulation, IP23 standard, IP54 for option.

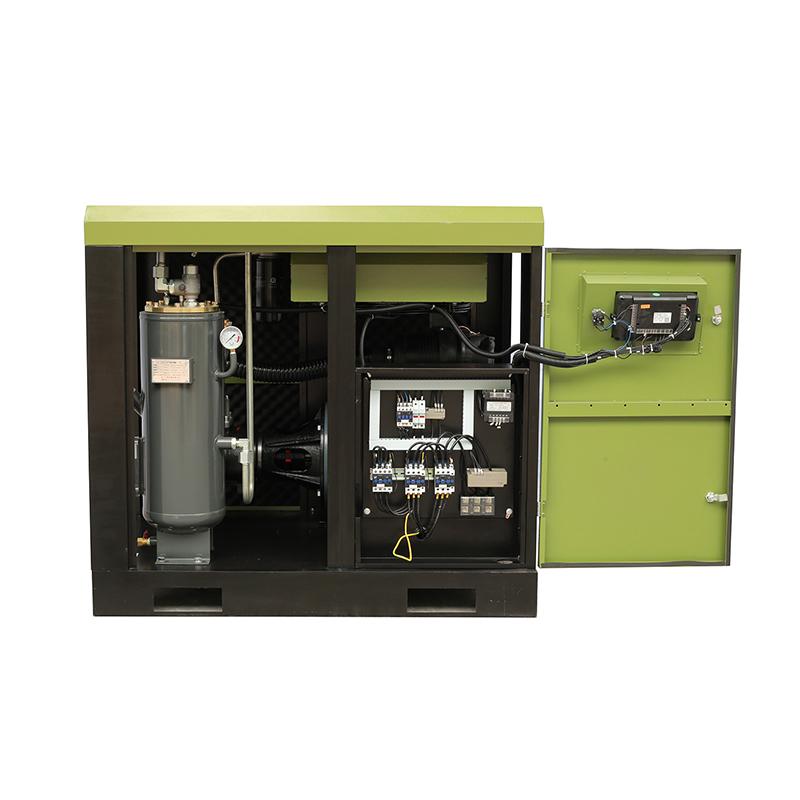

Oil separator
With high efficient core of oil/air separating element, ensures the lower oil content in the compressed air (less than 3ppm).
Product Parameters:
Model
Working Pressure
Capacity
Motor Power
Dimension
(mm)
Net Weight
(KGS)
Air Outlet Pipe Diameter
Psi
bar
Cfm
m3/min
kw/hp
SGD08
102
7
42.4
1.2
7.5/10
900*670*850
200
1/2’’
116
8
38.8
1.1
145
10
33.5
0.95
174
10
28.3
0.8
SGD11
102
7
58.3
1.65
11/15
1080*750*1020
280
3/4’’
116
8
53
1.5
145
10
45.9
1.3
174
12
38.8
1.1
SGD15
102
7
88.3
2.5
15/20
1080*750*1020
300
3/4’’
116
8
81.2
2.3
145
10
74.2
2.1
174
12
67.1
1.9
SGD18
102
7
113
3.2
18.5/25
1380*850*1185
430
1’’
116
8
105.9
3
145
10
95.3
2.7
174
12
84.7
2.4
SGD22
100
7
134.2
3.8
22/30
1380*850*1185
450
1’’
116
8
127.1
3.6
145
10
113
3.2
174
12
95.3
2.7
SGD30
102
7
187.1
5.3
30/40
1380*850*1185
500
1’’
116
8
176.6
5
145
10
158.9
4.5
174
12
141.2
4
SGD37
102
7
240.1
6.8
37/50
1500*1000*1345
650
11/2"
116
8
218.9
6.2
145
10
197.7
5.6
174
12
176.6
5
SGD45
102
7
261.3
7.4
45/60
1500*1000*1345
680
11/2"
116
8
247.2
7
145
10
218.9
6.2
174
12
197.7
5.6
SGD55
102
7
353.1
10
55/75
1800*1250*1670
1150
2"
116
8
339
9.6
145
10
300.1
8.5
174
12
268.4
7.6
SGD75
102
7
473.2
13.4
75/100
1800*1250*1670
1200
2"
116
8
444.9
12.6
145
10
395.5
11.2
174
12
353.1
10
Motor Protection Class: IP23/IP54/IP55 or as per your required
Voltage: 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Please contact us for other power and machine parameters thank you !!!
Company Information:

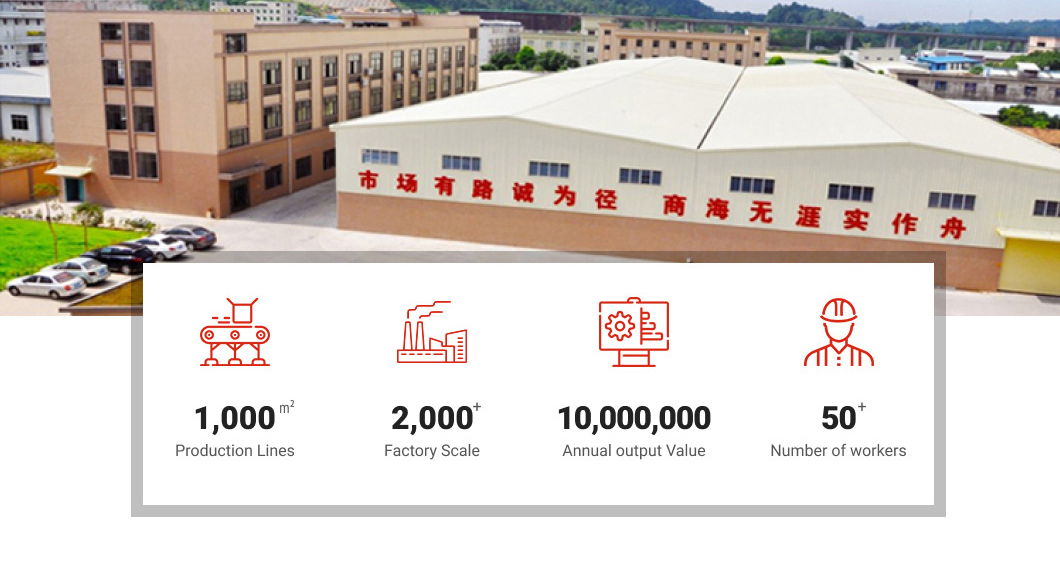

Aircompsupplier Mechanical & Electrical Equipment Co., Ltd, established in 2010, is a professional enterprise engaged in the research, development, sale and service of air compressor, screw air compressor, air dryer, filters, oxygen generator, nitrogen generator and wet spray manipulator.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction by supplying air and gas. Aircompsupplier company not only has its own import and export right and stable distributors worldwide, but also has a team of professional after sales and service. In addition, we have obtained CE, TUV, SGS, ISO certificates.
FAQ:
Q1: What is the rotor speed for the air end?
A1: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
