The oil free scroll air compressor provides high quality oil free clean air.
Silent Small Oil Free Air Compressor
Product Parameter:

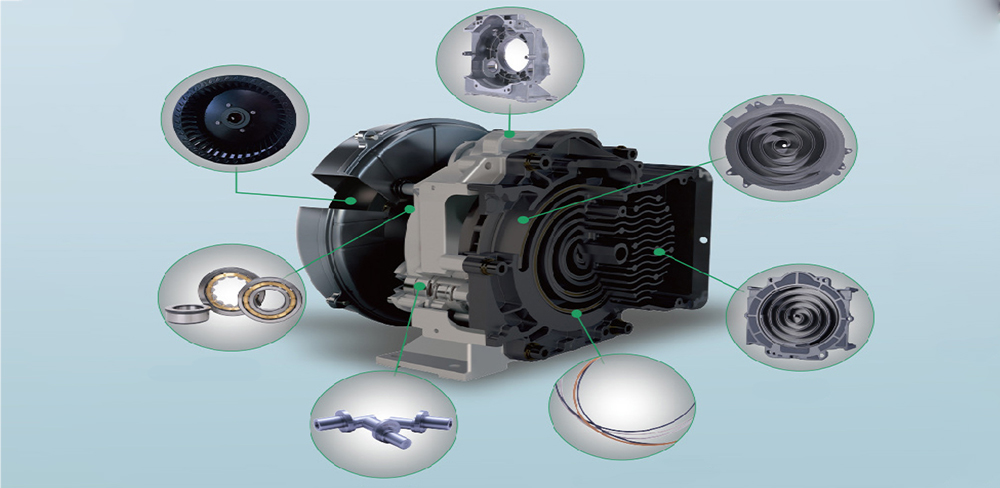

The oil free scroll air compressor provides high quality oil free clean air. Fewer moving parts, simple structure and high reliability. When working, the moving and static scrolls do not contact, with small vibration and low noise. There is no need to replace the lubricating oil and its oil filter, and there is no waste disposal problem. There is no risk of oil leakage, no need to deal with condensate, etc., and meets harsh environmental requirements.
Product Parameters：
| Model | Capacity | Pressure | Motor power | QTY of air end | QTY of motor | Noise Level | Diemensions | Weight | Diameter of air outlet pipe | Inner air tank | Outside air tank | |
| m3/min | Mpa | kW | hp | PCS | PCS | dB(A) | mm | KGS | inch | L | L | |
| D04/08-A1 | 0.3 | 0.8 | 3.0 | 4.0 | 04*1 | 1 | 55±2 | 760*690*820 | 200 | 3/4 | 5 | / |
| D04/08-A4 | 0.4/0.3 | 0.8/1.0 | 3.7 | 5 | 04*1 | 1 | 55±2 | 760*690*820 | 200 | 3/4 | 5 | / |
| D04/08-J3 | 0.4/0.3 | 0.8/1.0 | 3.7 | 5 | 04*1 | 1 | 55±2 | 1400*780*1485 | 450 | 3/4 | / | 200 |
| Q08/08-S1 | 0.8 | 0.8 | 7.5 | 10 | 04*2 | 2 | 60±2 | 1400*700*1200 | 400 | 1 1/2 | 24 | / |
| Q08/08-S1 | 0.8 | 0.8 | 7.5 | 10 | 04*2 | 2 | 60±2 | 1400*780*1485 | 450 | 1 1/2 | / | |
| D06/08-A4 | 0.6/0.4 | 0.8/1.0 | 5.5 | 7 | 0.6*1 | 1 | 55±2 | 760*690*820 | 200 | 3/4 | 5 | / |
| D06/08-J3 | 0.6/0.4 | 0.8/1.0 | 5.5 | 7 | 0.6*1 | 1 | 55±2 | 1400*780*1485 | 450 | 3/4 | / | 200 |
| Z12/08-S1 | 1.2/0.8 | 0.8/1.0 | 11 | 15 | 0.6*2 | 2 | 60±2 | 1400*700*1200 | 350 | 1 1/2 | 24 | / |
| D06/08-J5 | 0.6 | 0.8 | 5.5 | 7 | 0.6*1 | 1 | 60±2 | 1400*780*1485 | 450 | 1 1/2 | / | |
| Z12/08-J5 | 1.2 | 0.8 | 11 | 15 | 0.6*2 | 2 | 60±2 | 1400*780*1485 | 500 | 1 1/2 | / | |
| Z18/08-S1 | 1.8/1.5 | 0.8/1.0 | 16.5 | 22 | 0.6*3 | 3 | 62±2 | 1400*700*1670 | 500 | 1 1/2 | 24 | / |
| Z24/08-S1 | 2.4/2.0 | 0.8/1.0 | 22 | 30 | 0.6*4 | 4 | 65±2 | 1400*1550*1200 | 800 | 1 1/2 | 24*2 | / |
| Z30/08-S1 | 3.0/2.4 | 0.8/1.0 | 27.5 | 37 | 0.6*5 | 5 | 65±2 | 1400*1550*1670 | 1080 | 1 1/2 | / | / |
| Z36/08-S1 | 3.6/3.0 | 0.8/1.0 | 33 | 45 | 0.6*6 | 6 | 65±2 | 1400*1550*1670 | 1200 | 1 1/2 | / | / |
| Z42/08-S1 | 4.2/3.6 | 0.8/1.0 | 38.5 | 52 | 0.6*7 | 7 | 65±2 | 2220*1450*1740 | 1400 | 1 1/2 | / | / |
| Z48/08-S1 | 4.8/4.0 | 0.8/1.0 | 44 | 59 | 0.6*8 | 8 | 65±2 | 2220*1450*1750 | 1520 | 1 1/2 | / | / |
| Z54/08-S1 | 5.4/4.5 | 0.8/1.0 | 49.5 | 67 | 0.6*9 | 9 | 65±2 | 2220*1450*1750 | 1650 | 1 1/2 | / | / |
Company Information：
Aircompsupplier Mechanical & Electrical Equipment Co., Ltd, established in 2010, is a professional enterprise engaged in the research, development, sale and service of air compressor, screw air compressor, air dryer, filters, oxygen generator, nitrogen generator and wet spray manipulator.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction by supplying air and gas. Aircompsupplier company not only has its own import and export right and stable distributors worldwide, but also has a team of professional after sales and service. In addition, we have obtained CE, TUV, SGS, ISO certificates.
FAQ:
Q1: What trade terms do we provide? What kind of settlement currency do
A1: Trade term: CIF, CFR, FOB etc...Works As far Our business traded in Dollars, Euros and RMB.
Q2: How long is our delivery?
A2: Our standard delivery time is 7-30 days after confirmation order & receiving recipets for standard compressors, for the other non standard requirement will be discussed case by case.
Q3: What is the voltage of the compressor?
A3:The available voltage include 380V/50HZ/3Phase,400V/50HZ/3P415V/50HZ/3Ph etc...At the same time we provide other voltage according to customer requirement.
Q4: Can our compressor run in high temperature environment? What is the working temperature range for our machine?
A4;Yes, Work temperature range :1-45℃(33.8F-113F)
Q5: What's the min Order requirement?
A5:Order requirement is 1PCS.
