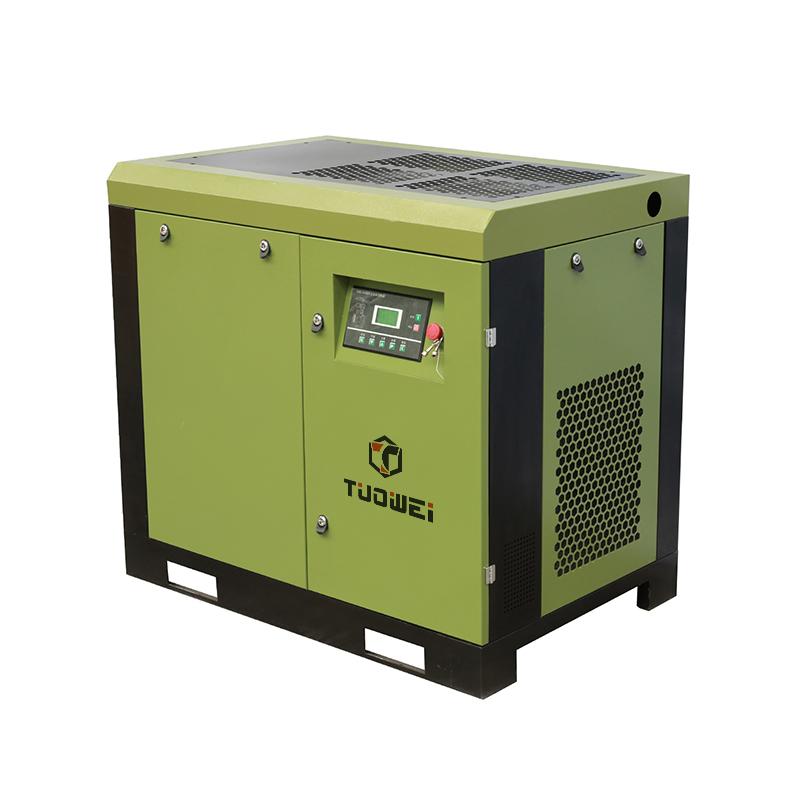

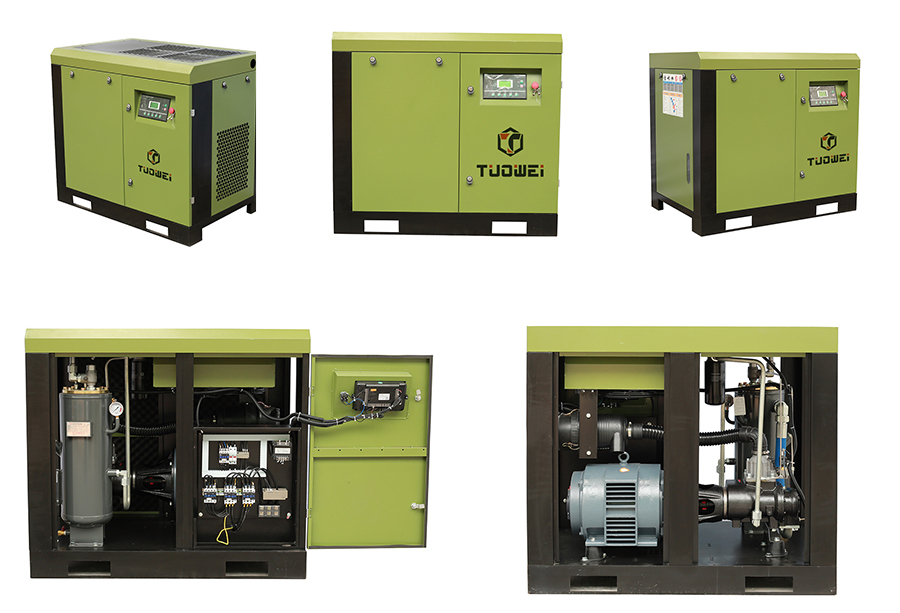

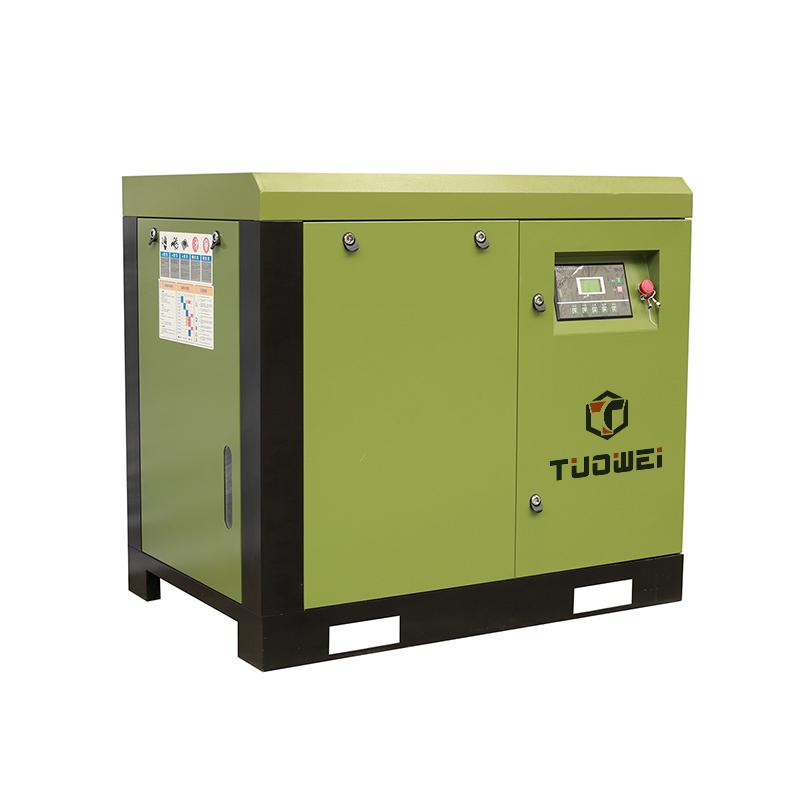

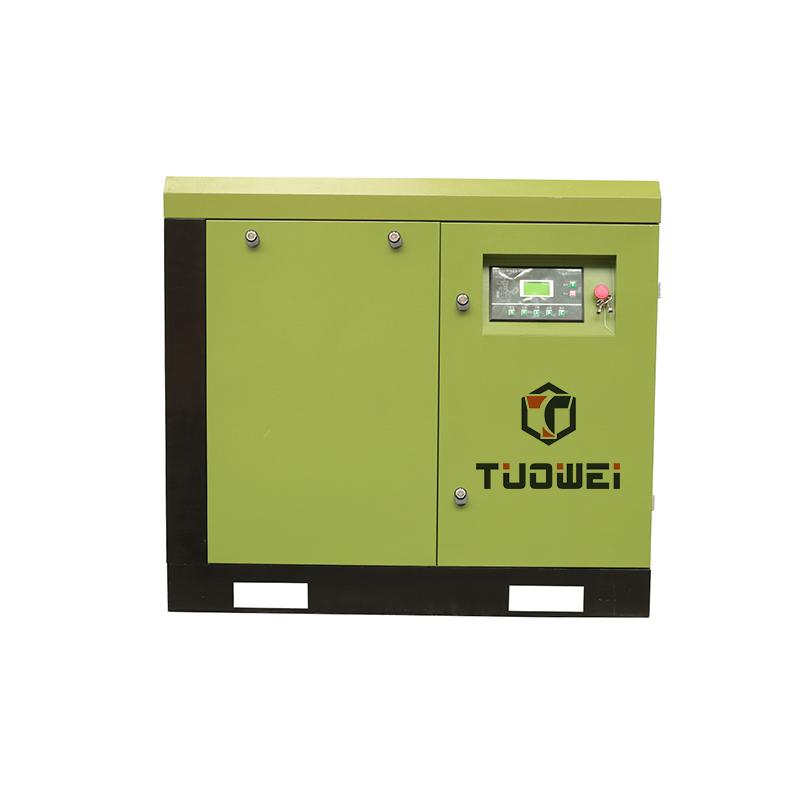

22kw 30hp Oil Lubricated Air Cooling Screw Air Compressor Adopt Skf Bearing,Baosi(GU,Hanbell) Air End.
Item No.:
SGD 22Payment:
L/C , T/T , D/P , FOB,CIFProduct origin:
chinaColor:
according to your needsGoods_stock:
1000Shipping port:
guangzhouLead Time:

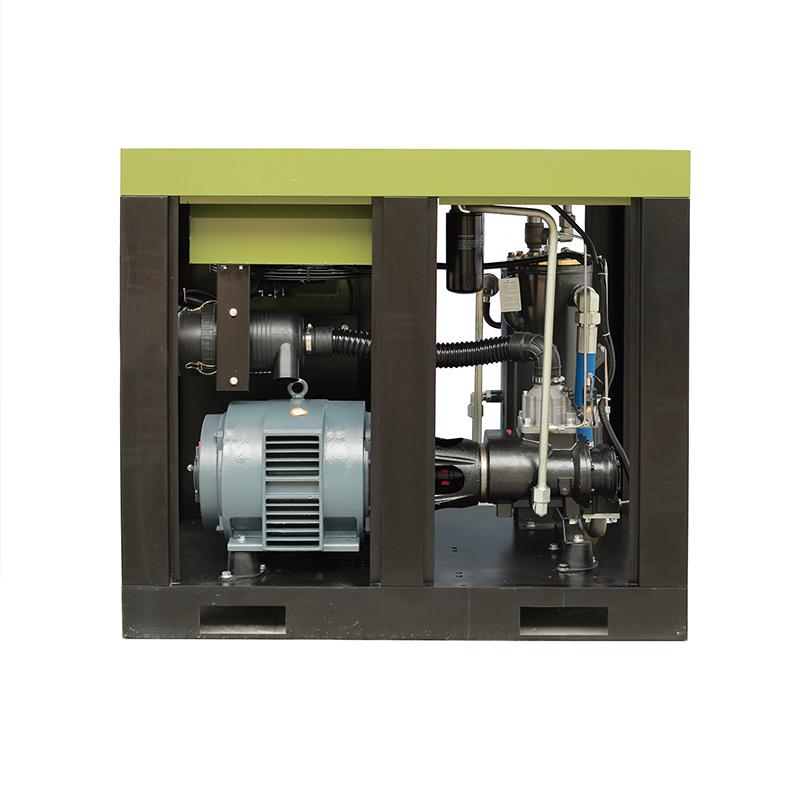

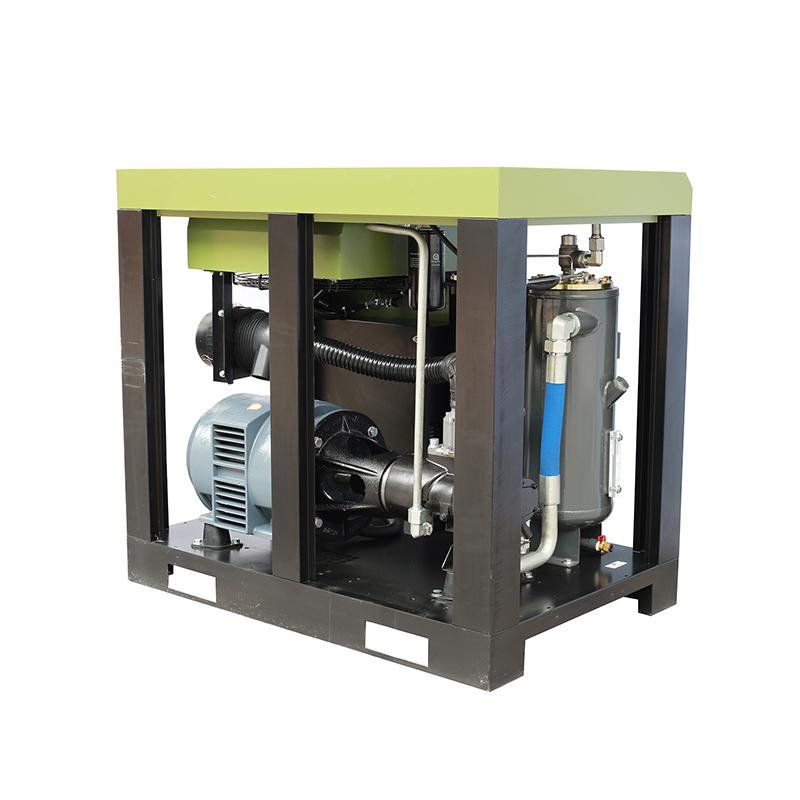

7~15 Day22kw 30hp Direct Drive Screw Air Compressor
Product Details:
Large displacement: Displacement 10% higher than ordinary piston compressor.
Energy-saving: Compared with piston air compressor, this series of models for the new national standard two energy efficiency products, excellent energy saving.
Easy to operate: 24 hours unattended all day work, free load automatically start, full load automatically shut down.
Strong stability:Under long time working, displacement and pressure stable, no crash phenomenon, low failure rate.
Model
SGD 22
Type of Cooling
Air Cooling/Water cooling
Working Pressure( bar)
7/8/10/12
Air Delivery(cfm / m3/min)
3.8/3.6/3.2/2.7
Type of Driving
Driect driven
Voltage
380(220,400,415)V/50(60)Hz/3Phase or Can be customized
Exhaust Oil Volum
1~3ppm
Outlet Air Humidity (℃)
ambient temperature+15℃
Product Parameter:
Technical Data of Direct Drive Electric Motor Screw Air Compressors
|
Model |
Working Pressure |
Capacity |
Motor Power |
Driven Method |
Cooling Method |
Dimension(mm) |
Net Weight |
Air Outlet Pipe Diameter |
||||
|
Psi |
bar |
Cfm |
m3/min |
kw/hp |
L |
W |
H |
KGS |
||||
|
SGD08 |
102 |
7 |
42.4 |
1.2 |
7.5/10 |
DirectDrive |
Air Cooling
/
Water Cooling
|
800 |
670 |
850 |
200 |
1/2’’ |
|
116 |
8 |
38.8 |
1.1 |
|||||||||
|
145 |
10 |
33.5 |
0.95 |
|||||||||
|
174 |
12 |
28.3 |
0.8 |
|||||||||
|
SGD11 |
102 |
7 |
58.3 |
1.65 |
11/15 |
1080 |
750 |
1020 |
280 |
3/4’’ |
||
|
116 |
8 |
53.0 |
1.5 |
|||||||||
|
145 |
10 |
45.9 |
1.3 |
|||||||||
|
174 |
12 |
38.8 |
1.1 |
|||||||||
|
SGD15 |
102 |
7 |
88.3 |
2.5 |
15/20 |
1080 |
750 |
1020 |
300 |
3/4’’ |
||
|
116 |
8 |
81.2 |
2.3 |
|||||||||
|
145 |
10 |
74.2 |
2.1 |
|||||||||
|
174 |
12 |
67.1 |
1.9 |
|||||||||
|
SGD18 |
102 |
7 |
113.0 |
3.2 |
18.5/25 |
1380 |
850 |
1185 |
430 |
1’’ |
||
|
116 |
8 |
105.9 |
3.0 |
|||||||||
|
145 |
10 |
95.3 |
2.7 |
|||||||||
|
174 |
12 |
84.7 |
2.4 |
|||||||||
|
SGD22 |
100 |
7 |
134.2 |
3.8 |
22/30 |
1380 |
850 |
1185 |
450 |
1’’ |
||
|
116 |
8 |
127.1 |
3.6 |
|||||||||
|
145 |
10 |
113.0 |
3.2 |
|||||||||
|
174 |
12 |
95.3 |
2.7 |
|||||||||
|
SGD30 |
102 |
7 |
187.1 |
5.3 |
30/40 |
1380 |
850 |
1185 |
500 |
1’’ |
||
|
116 |
8 |
176.6 |
5.0 |
|||||||||
|
145 |
10 |
158.9 |
4.5 |
|||||||||
|
174 |
12 |
141.2 |
4.0 |
|||||||||
|
SGD37 |
102 |
7 |
240.1 |
6.8 |
37/50 |
1500 |
1000 |
1345 |
650 |
11/2" |
||
|
116 |
8 |
218.9 |
6.2 |
|||||||||
|
145 |
10 |
197.7 |
5.6 |
|||||||||
|
174 |
12 |
176.6 |
5.0 |
|||||||||
|
SGD45 |
102 |
7 |
261.3 |
7.4 |
45/60 |
1500 |
1000 |
1345 |
680 |
11/2" |
||
|
116 |
8 |
247.2 |
7.0 |
|||||||||
|
145 |
10 |
218.9 |
6.2 |
|||||||||
|
174 |
12 |
197.7 |
5.6 |
|||||||||
|
SGD55 |
102 |
7 |
353.1 |
10.0 |
55/75 |
1800 |
1250 |
1670 |
1150 |
2" |
||
|
116 |
8 |
339.0 |
9.6 |
|||||||||
|
145 |
10 |
300.1 |
8.5 |
|||||||||
|
174 |
12 |
268.4 |
7.6 |
|||||||||
|
SGD75 |
102 |
7 |
473.2 |
13.4 |
75/100 |
1800 |
1250 |
1670 |
1200 |
2" |
||
|
116 |
8 |
444.9 |
12.6 |
|||||||||
|
145 |
10 |
395.5 |
11.2 |
|||||||||
|
174 |
12 |
353.1 |
10.0 |
|||||||||
|
SGD90 |
102 |
7 |
572.0 |
16.2 |
90/120 |
1800 |
1250 |
1670 |
1350 |
2" |
||
|
116 |
8 |
529.7 |
15.0 |
|||||||||
|
145 |
10 |
487.3 |
13.8 |
|||||||||
|
174 |
12 |
434.3 |
12.3 |
|||||||||
|
SGD110 |
102 |
7 |
741.5 |
21.0 |
110/150 |
2300 |
1470 |
1840 |
1800 |
2 1/2’’ |
||
|
116 |
8 |
699.1 |
19.8 |
|||||||||
|
145 |
10 |
614.4 |
17.4 |
|||||||||
|
174 |
12 |
522.6 |
14.8 |
|||||||||
|
SGD132 |
102 |
7 |
865.1 |
24.5 |
132/175 |
2300 |
1470 |
1840 |
1850 |
2 1/2’’ |
||
|
116 |
8 |
819.2 |
23.2 |
|||||||||
|
145 |
10 |
723.9 |
20.5 |
|||||||||
|
174 |
12 |
614.4 |
17.4 |
|||||||||
|
SGD160 |
102 |
7 |
1013.4 |
28.7 |
160/200 |
2300 |
1470 |
1840 |
2000 |
2 1/2’’ |
||
|
116 |
8 |
974.6 |
27.6 |
|||||||||
|
145 |
10 |
868.6 |
24.6 |
|||||||||
|
174 |
12 |
759.2 |
21.5 |
|||||||||
|
SGD185 |
102 |
7 |
1129.9 |
32.0 |
185/250 |
3150 |
1980 |
2152 |
3500 |
DN85 |
||
|
116 |
8 |
1073.4 |
30.4 |
|||||||||
|
145 |
10 |
967.5 |
27.4 |
|||||||||
|
174 |
12 |
875.7 |
24.8 |
|||||||||
|
SGD220 |
102 |
7 |
1271.2 |
36.0 |
220/300 |
3150 |
1980 |
2152 |
3800 |
DN85 |
||
|
116 |
8 |
1211.1 |
34.3 |
|||||||||
|
145 |
10 |
1066.4 |
30.2 |
|||||||||
|
174 |
12 |
978.1 |
27.7 |
|||||||||
|
SGD250 |
102 |
7 |
1483.0 |
42.0 |
250/350 |
3150 |
1980 |
2152 |
4000 |
DN85 |
||
|
116 |
8 |
1430.1 |
40.5 |
|||||||||
|
145 |
10 |
1348.8 |
38.2 |
|||||||||
|
174 |
12 |
1218.2 |
34.5 |
|||||||||
|
SGD315 |
102 |
7 |
1800.8 |
51.0 |
315/430 |
4000 |
1980 |
2152 |
6000 |
DN110 |
||
|
116 |
8 |
1772.6 |
50.2 |
|||||||||
|
145 |
10 |
1571.3 |
44.5 |
|||||||||
|
174 |
12 |
1412.4 |
40.0 |
|||||||||
|
SGD355 |
102 |
7 |
2259.8 |
64.0 |
355/480 |
4000 |
1980 |
2152 |
6500 |
DN110 |
||
|
116 |
8 |
2153.9 |
61.0 |
|||||||||
|
145 |
10 |
1995.0 |
56.5 |
|||||||||
|
174 |
12 |
1730.2 |
49.0 |
|||||||||
|
Motor Protection Class:IP23/IP54/IP55 or as per your required Voltage: 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests. |
||||||||||||
Company Information:

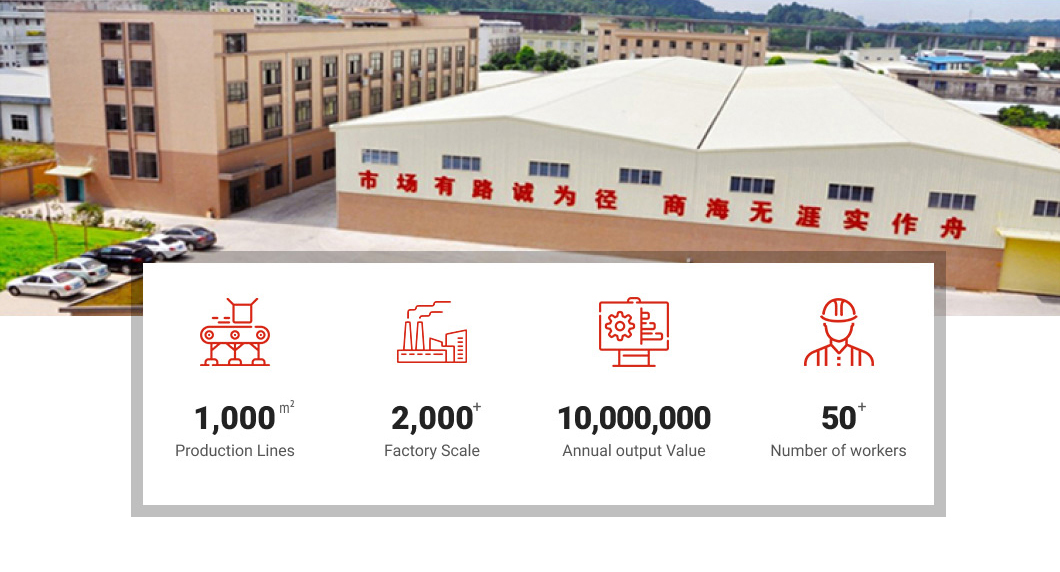

Aircompsupplier Mechanical & Electrical Equipment Co., Ltd, established in 2010, is a professional enterprise engaged in the research, development, sale and service of air compressor, screw air compressor, air dryer, filters, oxygen generator, nitrogen generator and wet spray manipulator.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction by supplying air and gas. Aircompsupplier company not only has its own import and export right and stable distributors worldwide, but also has a team of professional after sales and service. In addition, we have obtained CE, TUV, SGS, ISO certificates.
Q1: What is the rotor speed for the air end?
A2: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
