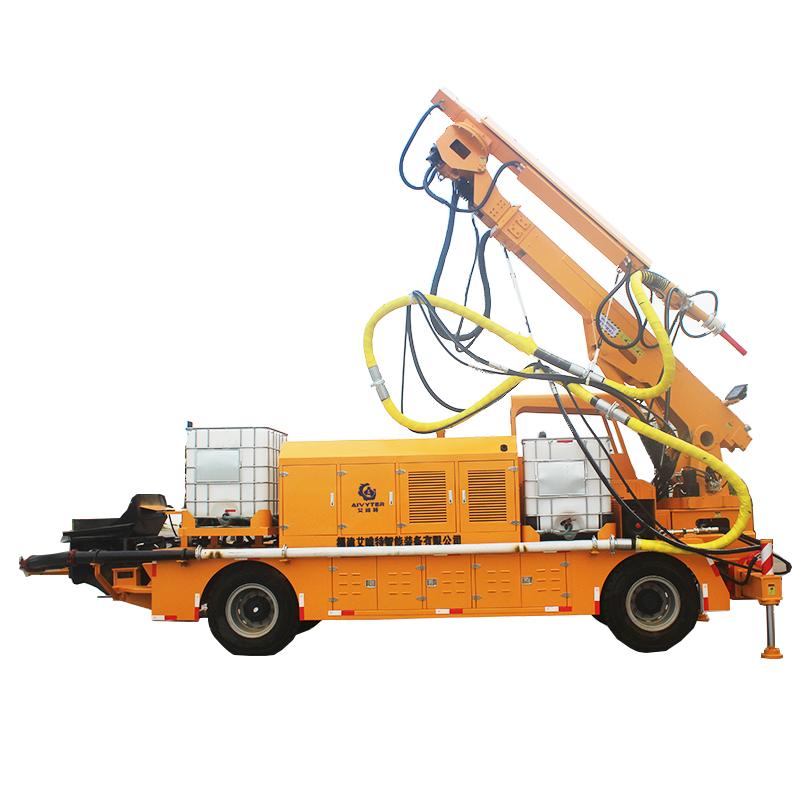

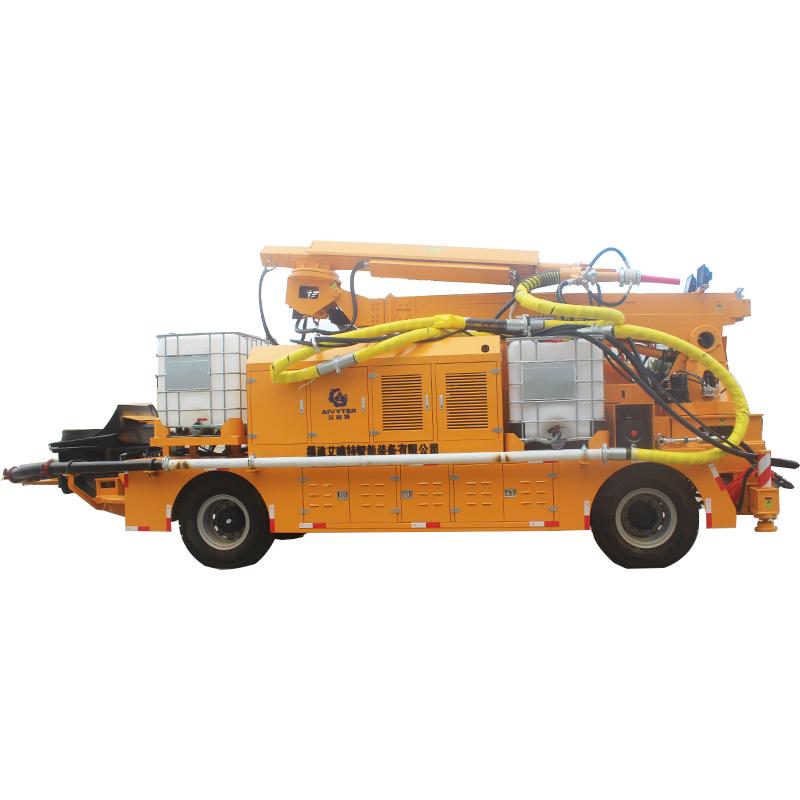

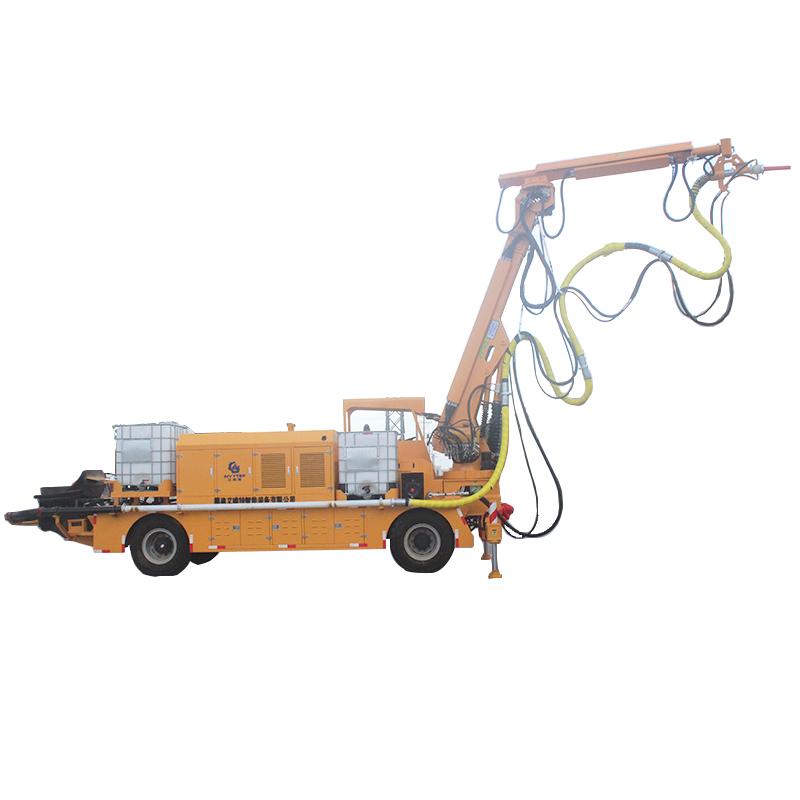

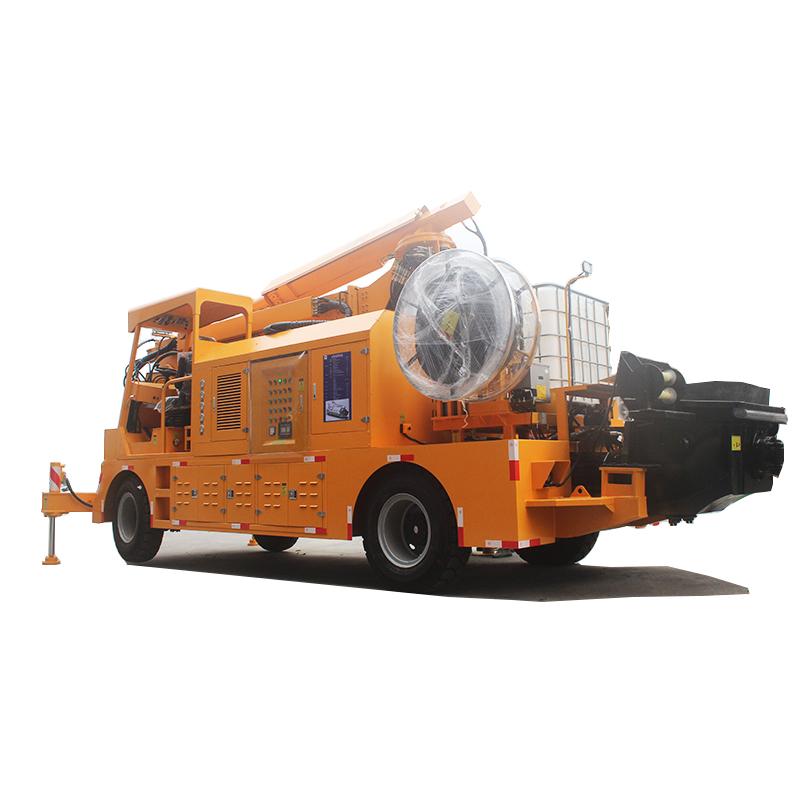

TUC3016A/B mechanized concrete spraying manipulator is specially designed for spraying concrete projects under difficult construction conditions. Designed to automatically perform wet and dry sprayed concrete construction. This machine is very suitable for slope stabilization or mining and tunnel construction that require small manipulators. The wireless remote control can be used to provide complete mobility and improved safety by allowing the operator to stay away from newly excavated rocks and newly sprayed concrete.
Internal combustion-hydrostatic drive Four-wheel drive (4WD)
Four-wheel steering (4WS) two-way driving
1. Engine
Cummins diesel engine output power: 93KW/2200rpm
2. Passed to
DA automatically controls the hydrostatic pressure
to the system
3. Driving speed
Low gear 0-3kw/h High gear 0-17kw/h
4. Climbing ability
46%(25°)
5. Suspension swing angle
±10°,Make the chassis better adapt to uneven
roads
6. Turn
Hydraulic four-wheel steering (4WS),with eight
character,half-eight-character, and diagonal mode
7. Minimum turning radius
2200mm inside, 6000mm outside
8. Driving direction
The cab layout direction is consistent with the
driving direction
9. Whole machine weight
17T
10.Overall dimensions
8600*2440*3500
shotcrete machine rental
Previous :
China Factory 30 Cubic Meters Shotcrete Robot Wet Concrete Spray Shotcrete Machine for SaleNext :
30 Cubic Meters Shotcrete Robot Wet Spray Manipulator for Concrete SprayingIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
10hp to 175hp Permanent Magnet Frequency Conversion Energy Saving Screw Air Compressor Read More
7.5Kw To 250 Kw Electric Direct Drive Rotary Screw Air Compressor Read More
11kW 15HP 16bar Combined Rotary Screw Air Compressor with Dryer, Air Tank for Laser Cutting Machines Use Read More
Silent Aircompressors Oilless Oil Free Belt Driven Scroll Air Compressor for Sale Read More
185CFM Diesel Portable Mining Screw Air Compressor Read More

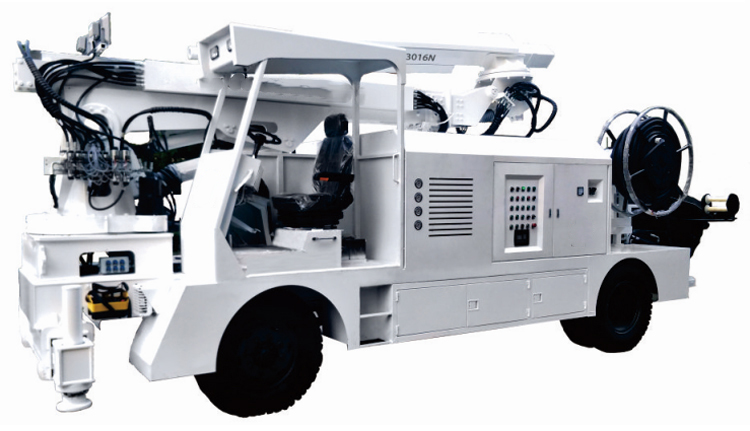

Aircompsupplier shotcrete manipulator is one of the most cost-effective concrete wet spraying manipulators in present market, including model: TUC-3016N and TUC-3016F, with engineering chassis and two-stage telescopic folding arm.
