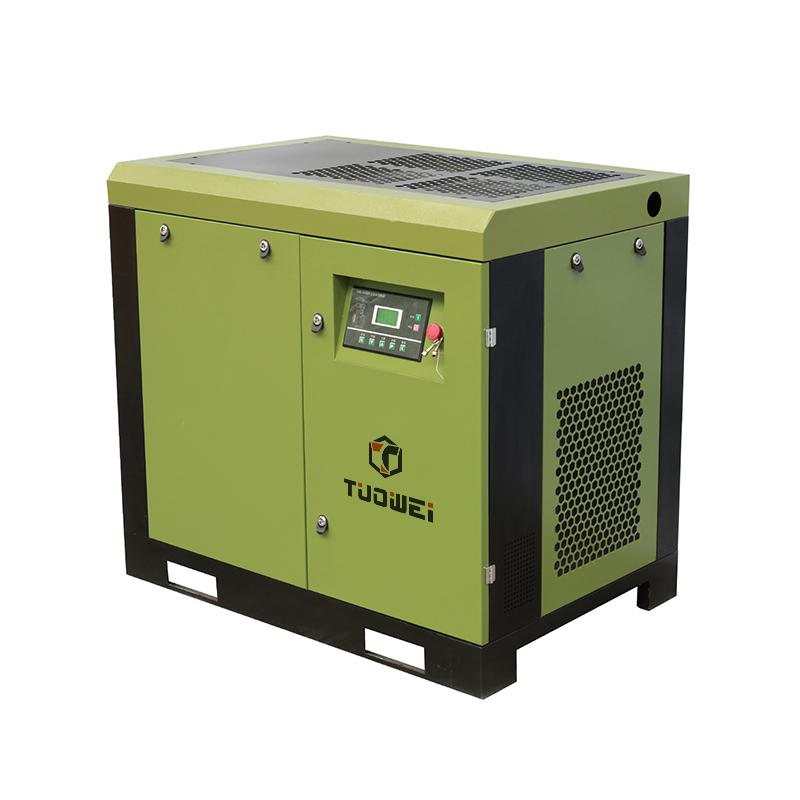

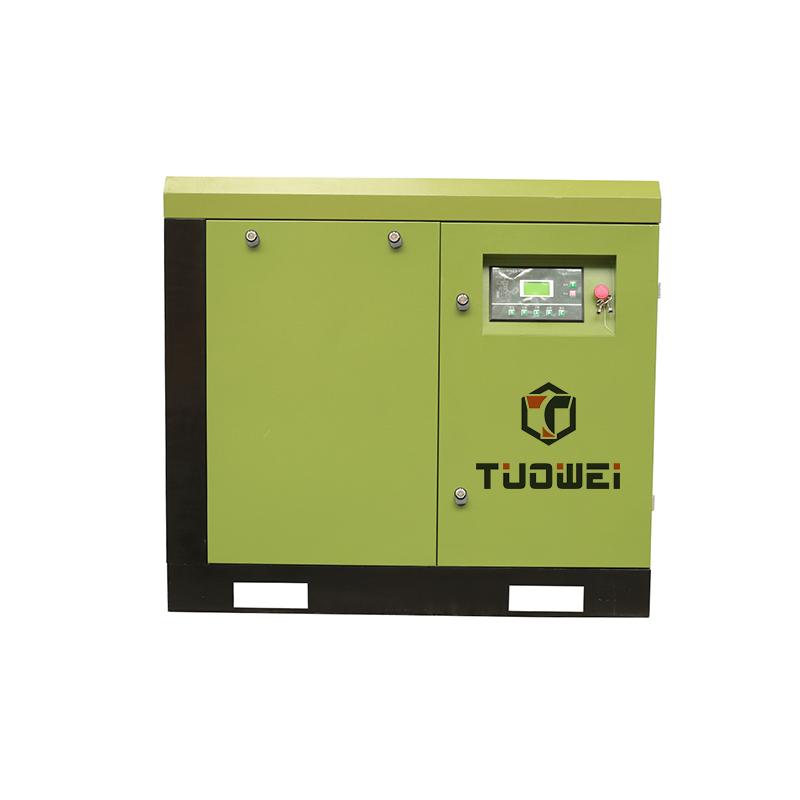

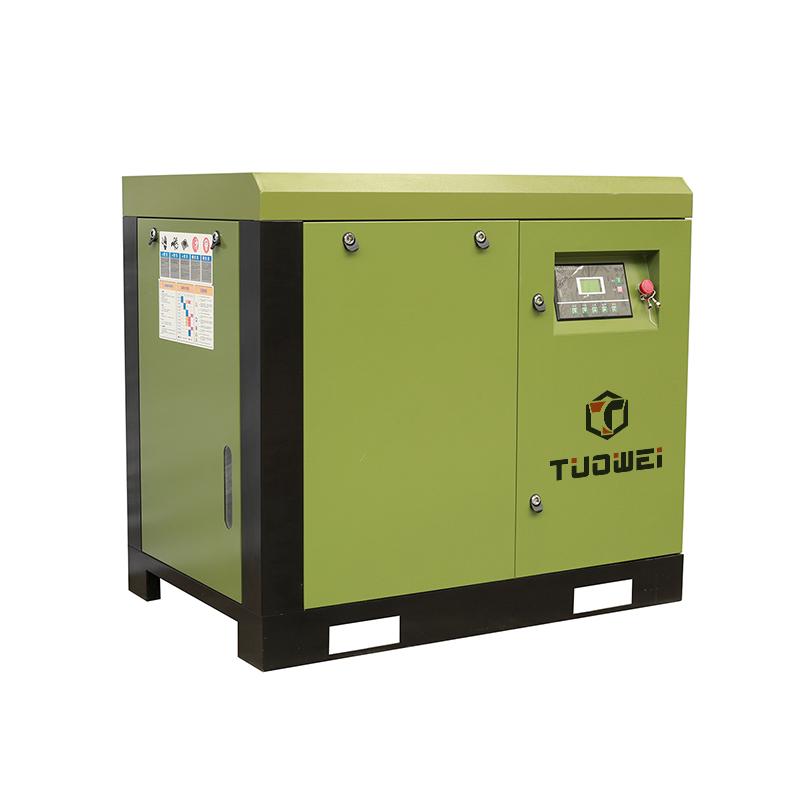

30KW 40HP 8Bar oil injected screw compressor have been widely tested and the compressors meet the highest quality standards. Easy-to-use and simple maintenance together with low noise level are the stronger points of this range.
Item No.:
SGD 30Payment:
L/C , T/T , D/P , FOB,CIFProduct origin:
chinaColor:
according to your needsGoods_stock:
1000Shipping port:
guangzhouLead Time:
7~15 Day30KW 40HP 8Bar Oil Injected Screw Compressor

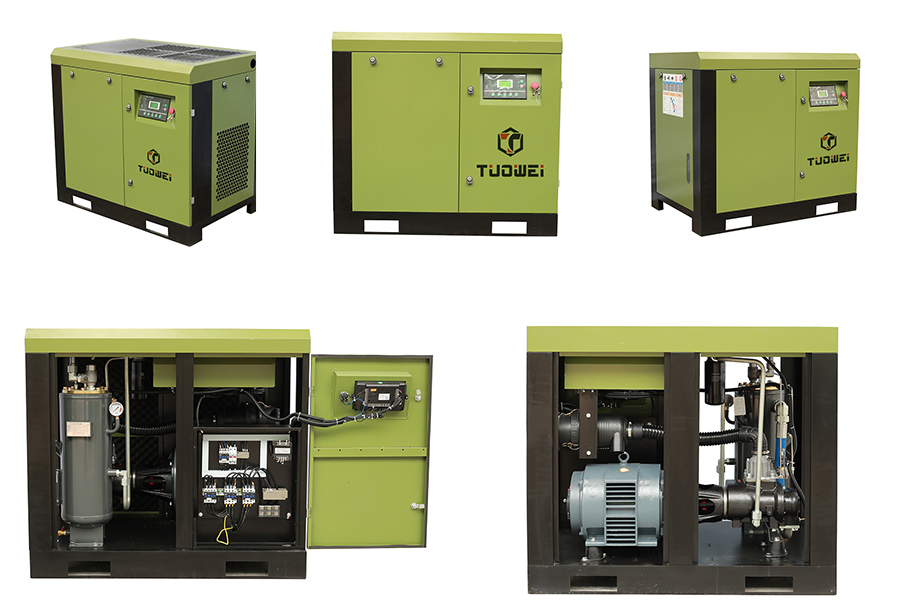

Product Details

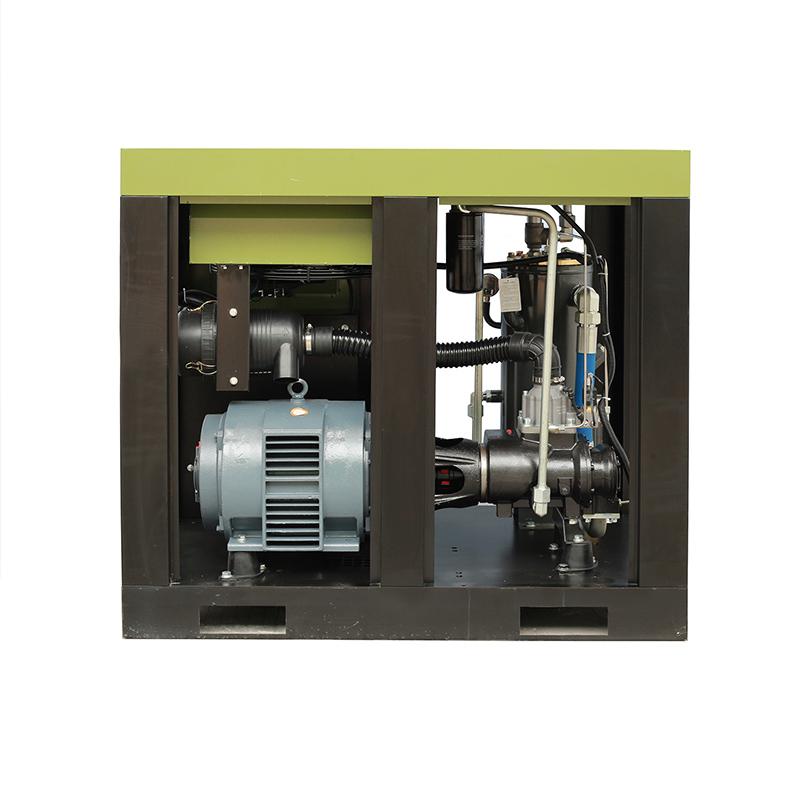

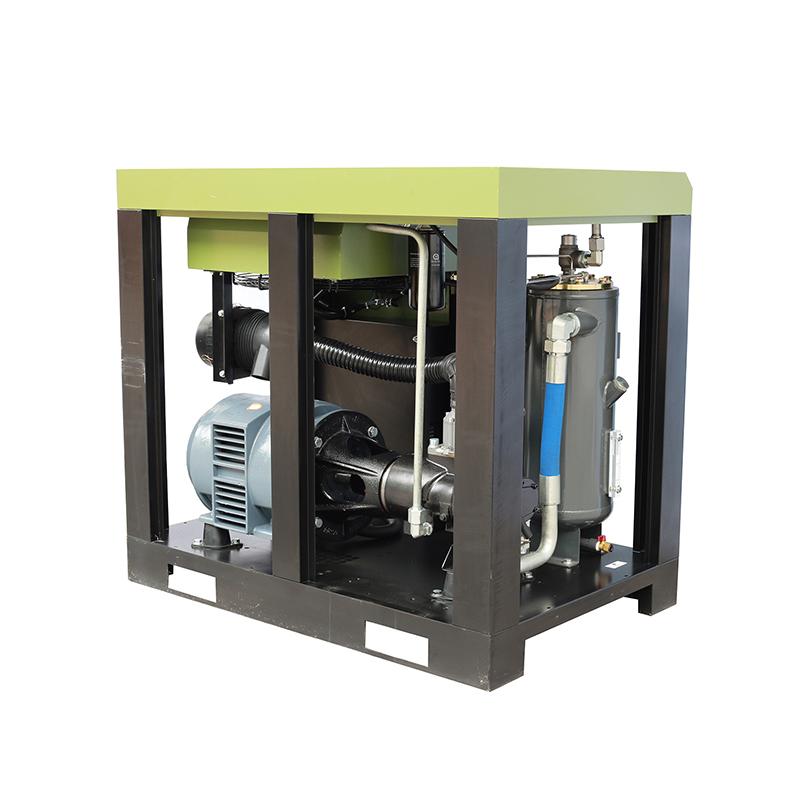

Direct Drive
Compact and complete machine design, easy to install, operate and maintain.
Model
SGD 30
Discharge Pressure(Mpa)
0.7 / 0.8 /1.0 /1.2
Air Delivery(m³/min)
5.3/5.0/4.5/4.0
Power(kW)
30
Lubricant(L)
18
Drive Method
Cooling
Air
Discharge Temperature(℃)
≤Ambient temperature±15℃
Electricity(V/Hz)
380V/50Hz(customizable)
Weight(kg)
340
Dimension(mm)
1300*850*1165
Air Outlet Pipe Diameter(inch/mm)
G1''
Startup Supply
Y-△ Start-up
Noise
68±2

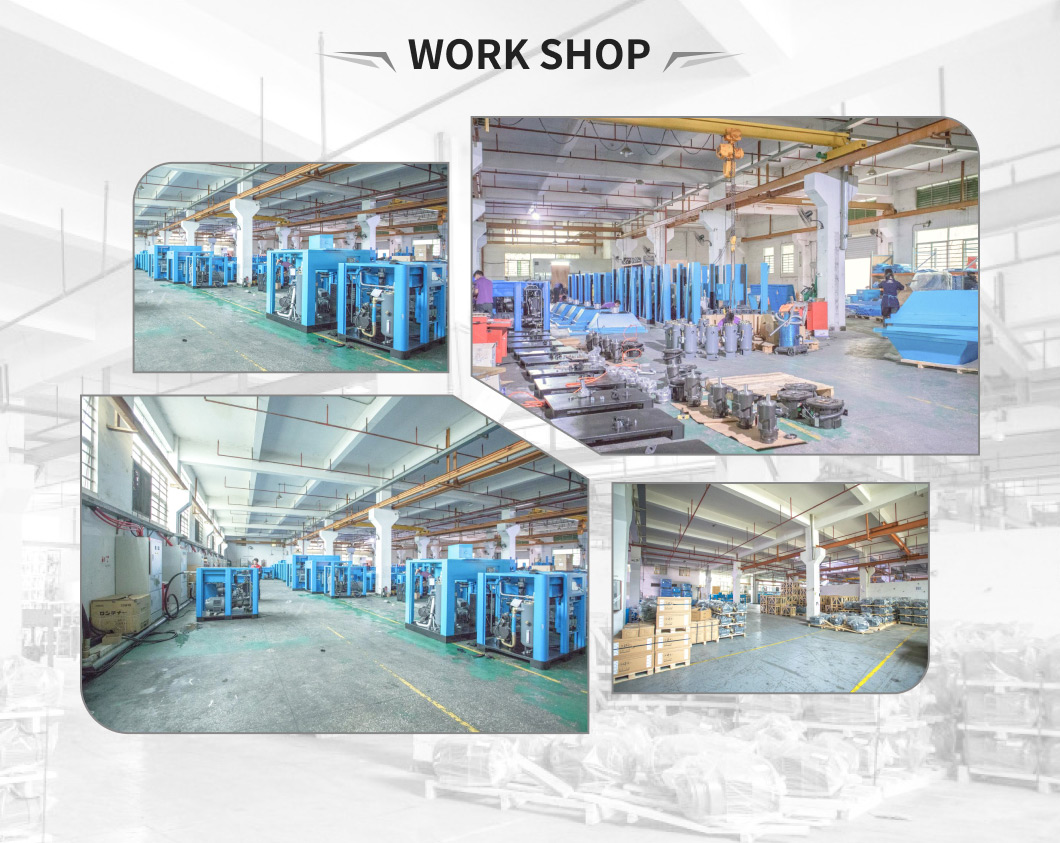

Company Information

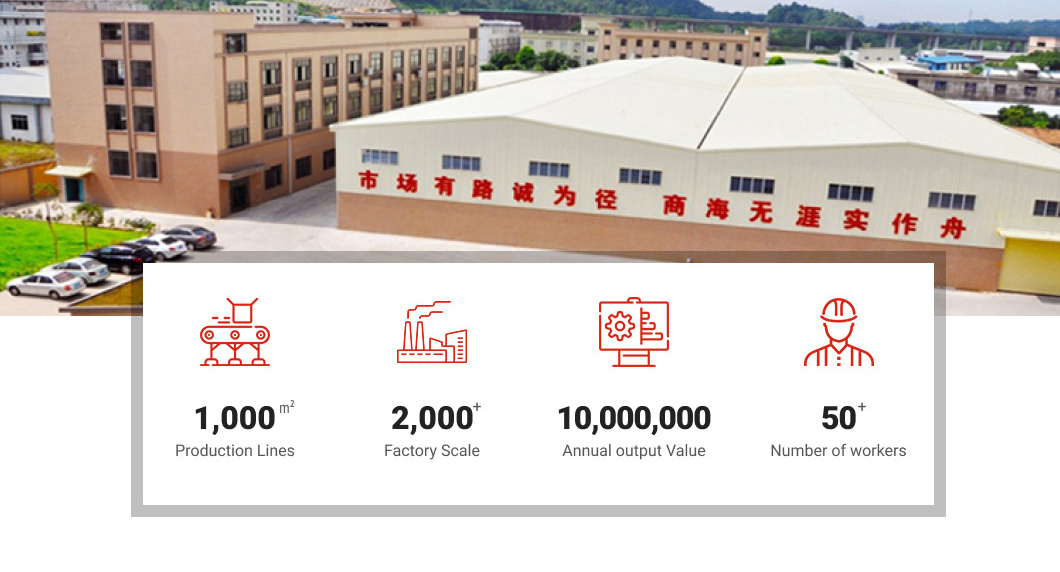

Aircompsupplier Mechanical & Electrical Equipment Co., Ltd, established in 2010, is a professional enterprise engaged in the research, development, sale and service of air compressor, screw air compressor, air dryer, filters, oxygen generator, nitrogen generator and wet spray manipulator.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction by supplying air and gas. Aircompsupplier company not only has its own import and export right and stable distributors worldwide, but also has a team of professional after sales and service. In addition, we have obtained CE, TUV, SGS, ISO certificates.
FAQ
Q1: What is the rotor speed for the air end?
A1: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
