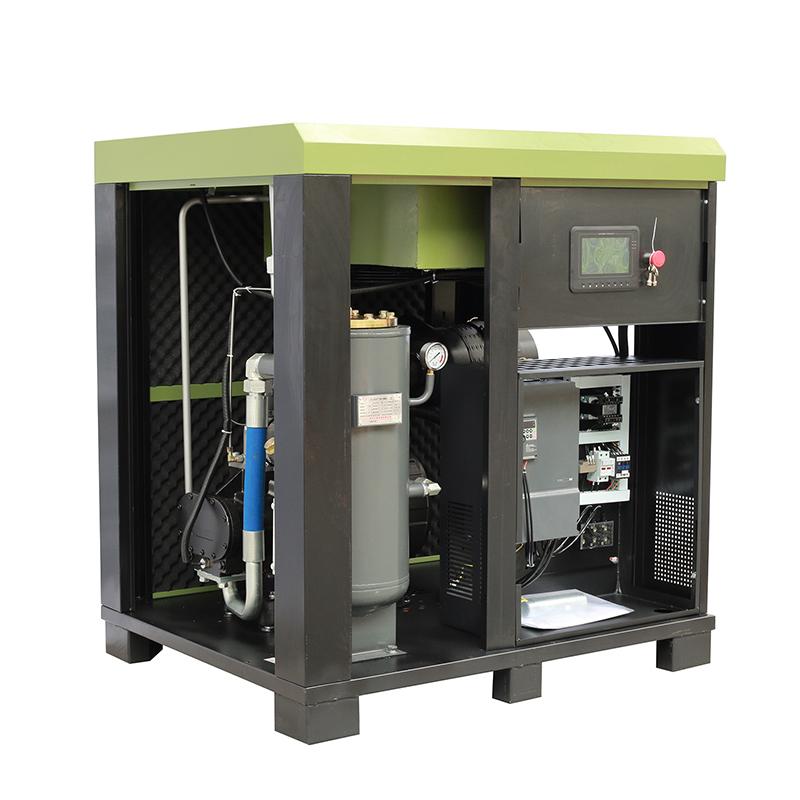

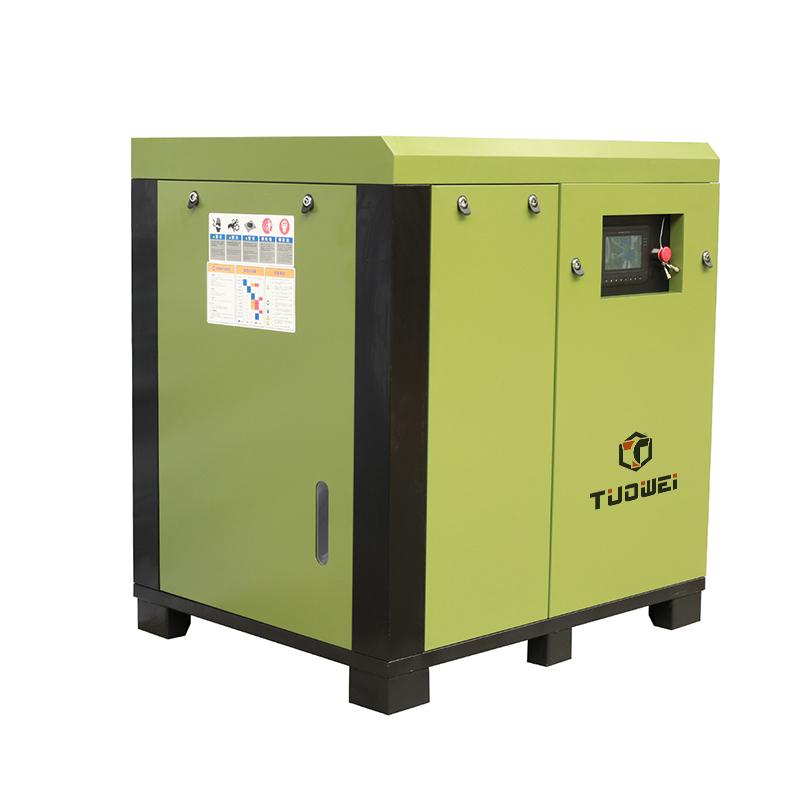

Permanent screw compressor equipped with a dedicated frequency converter, a wider frequency range. The use of permanent magnet synchronous motors can achieve the greatest energy saving effect.
Item No.:
SGPM 37Payment:
L/C , T/T , D/P , FOB,CIFProduct origin:
chinaColor:
according to your needsShipping port:
guangzhouLead Time:

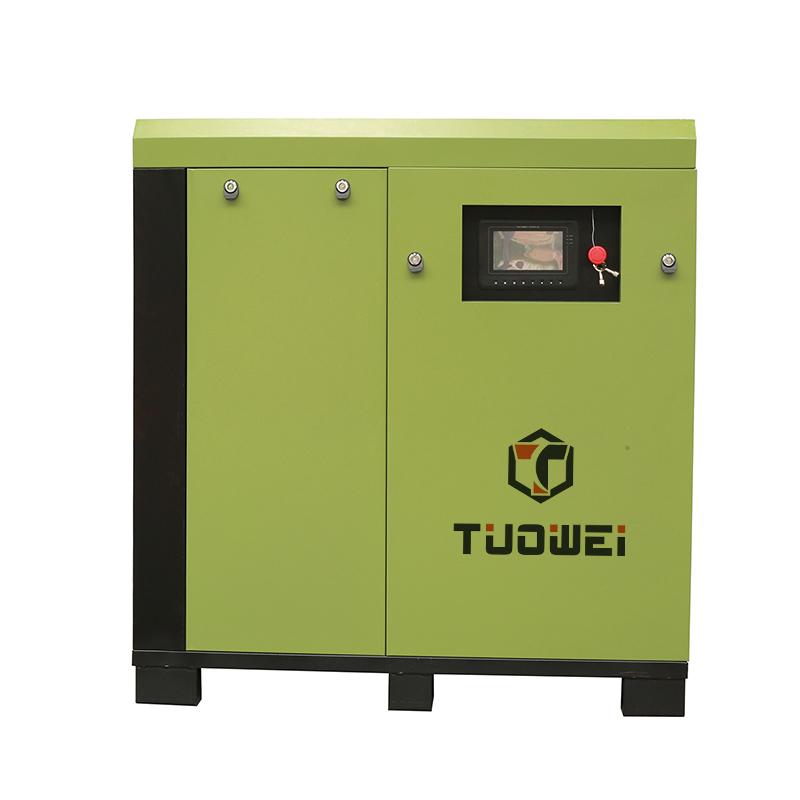

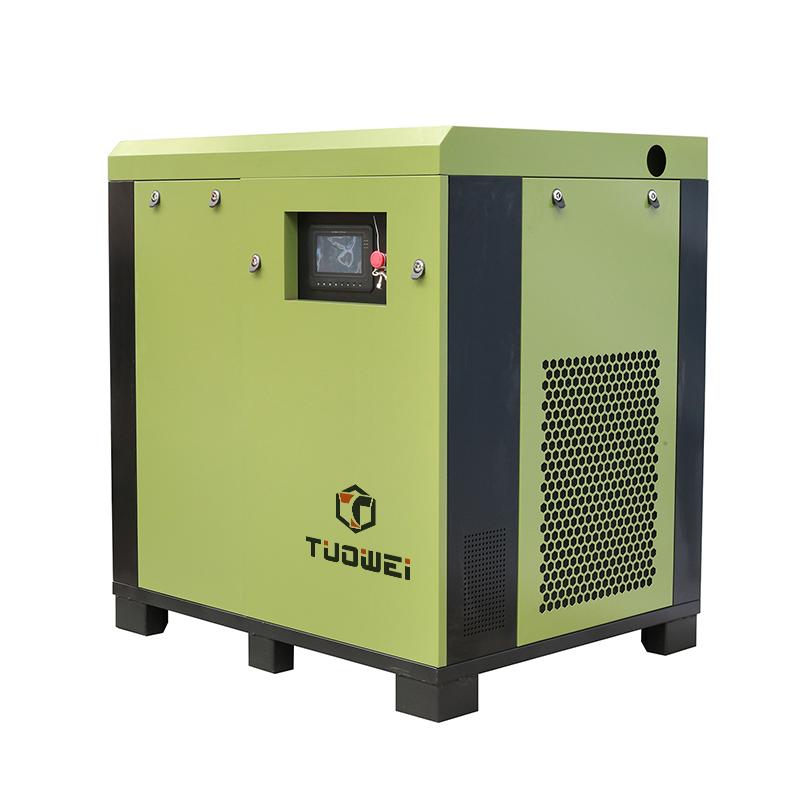

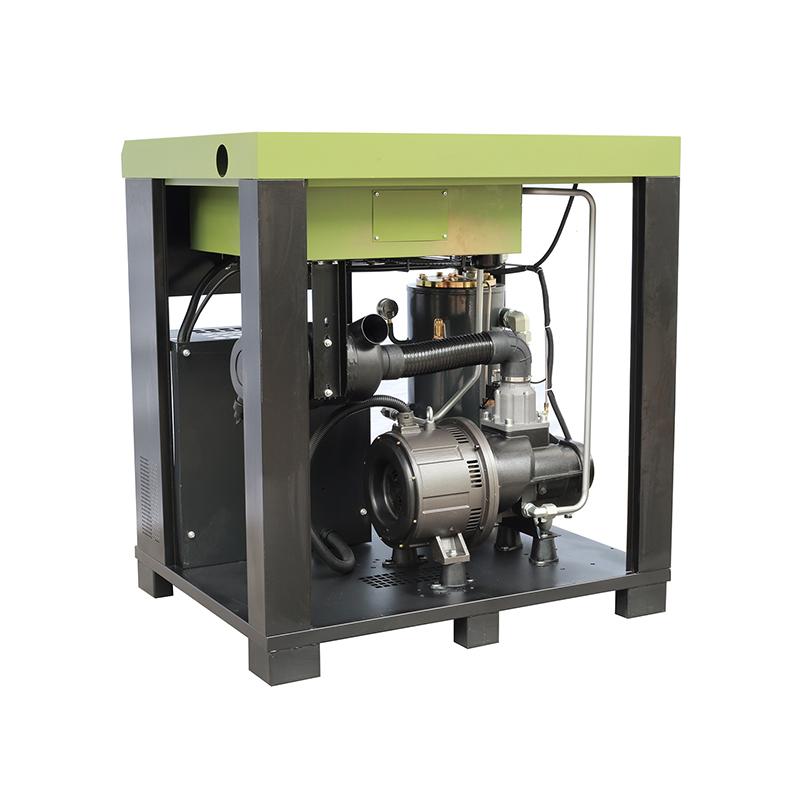

7~15 Day37kW 50hp Air Compressors Rotary Vfd Screw Air Compressor
Product features:

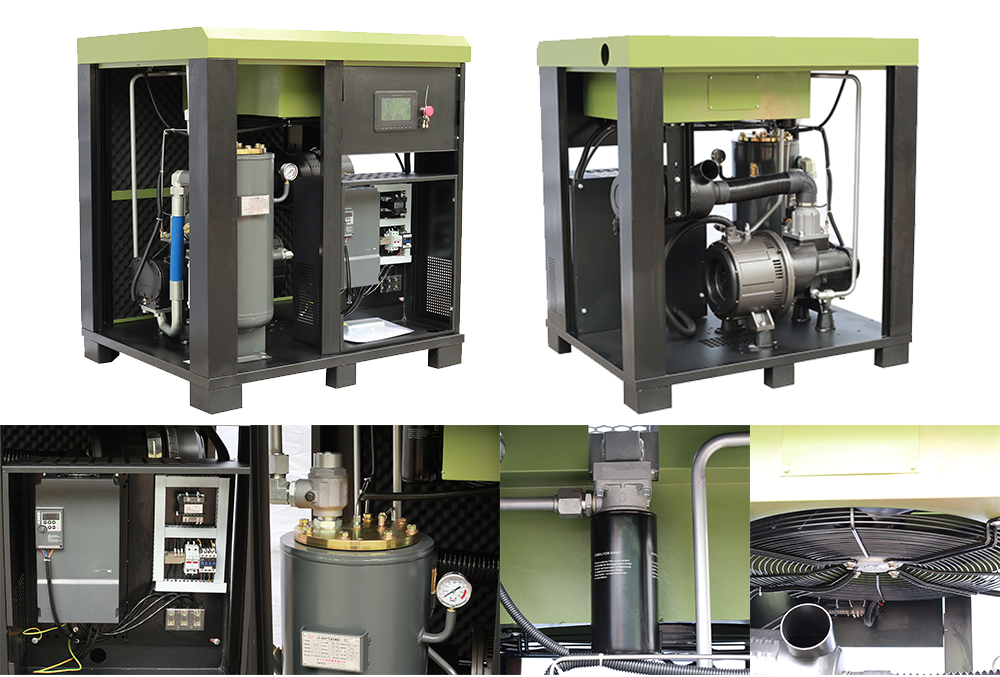

Compact and complete machine design, easy to install, operate and maintain.
The high-efficiency and energy-saving three-phase asynchronous motor specially designed for screw compressors has more effective energy-saving control and can greatly reduce operating costs.
Start-up operation is more stable, system reliability is improved, and compressor service life is prolonged.
The noise is lower, the vibration is smaller, the operation is more stable, and the maintenance cost is reduced.
The host has high precision, low noise and low vibration, which improves work efficiency.
Multi-language control panel, easy to operate.
| Model | Motor Power | Working Pressure | Capacity |
Lubricating oil quantity （L) |
Driven Method | Cooling Method |
Noise (dB） |
Dimension(mm) | Net Weight | Air Outlet Pipe Diameter | ||
| kw/hp | bar | m3/min | L*W*H | KGS | ||||||||
| SGPM08 | 7.5/10 | 7 | 1.2 | 10 | Direct Drive |
Air Cooling / Water Cooling |
66±2 | 900*670*850 | 220 | 1/2’’ | ||
| 8 | 1.1 | |||||||||||
| 10 | 0.95 | |||||||||||
| 12 | 0.8 | |||||||||||
| SGPM11 | 11/15 | 7 | 1.65 | 18 | 68±2 | 1000*750*1015 | 300 | 3/4’’ | ||||
| 8 | 1.5 | |||||||||||
| 10 | 1.3 | |||||||||||
| 12 | 1.1 | |||||||||||
| SGPM15 | 15/20 | 7 | 2.5 | 18 | 68±2 | 1000*750*1015 | 300 | 3/4’’ | ||||
| 8 | 2.3 | |||||||||||
| 10 | 2.1 | |||||||||||
| 12 | 1.9 | |||||||||||
| SGPM18 | 18.5/25 | 7 | 3.2 | 18 | 68±2 | 1130*850*1175 | 480 | 1’’ | ||||
| 8 | 3 | |||||||||||
| 10 | 2.7 | |||||||||||
| 12 | 2.4 | |||||||||||
| SGPM22 | 22/30 | 7 | 3.8 | 18 | 68±2 | 1130*850*1175 | 480 | 1’’ | ||||
| 8 | 3.6 | |||||||||||
| 10 | 3.2 | |||||||||||
| 12 | 2.7 | |||||||||||
| SGPM30 | 30/40 | 7 | 5.3 | 18 | 68±2 | 1130*850*1175 | 480 | 1’’ | ||||
| 8 | 5 | |||||||||||
| 10 | 4.5 | |||||||||||
| 12 | 4 | |||||||||||
| SGPM37 | 37/50 | 7 | 6.8 | 30 | 68±2 | 1250*1000*1335 | 500 | 11/2" | ||||
| 8 | 6.2 | |||||||||||
| 10 | 5.6 | |||||||||||
| 12 | 5 | |||||||||||
| SGPM45 | 45/60 | 7 | 7.4 | 30 | 72±2 | 1250*1000*1335 | 500 | 11/2" | ||||
| 8 | 7 | |||||||||||
| 10 | 6.2 | |||||||||||
| 12 | 5.6 | |||||||||||
| SGPM55 | 55/75 | 7 | 10 | 65 | 72±2 | 1800*1250*1670 | 1200 | 2" | ||||
| 8 | 9.6 | |||||||||||
| 10 | 8.5 | |||||||||||
| 12 | 7.6 | |||||||||||
| SGPM75 | 75/100 | 7 | 13.4 | 65 | 72±2 | 1800*1250*1670 | 1200 | 2" | ||||
| 8 | 12.6 | |||||||||||
| 10 | 11.2 | |||||||||||
| 12 | 10 | |||||||||||
| SGPM90 | 90/120 | 7 | 16.2 | 72 | 72±2 | 1800*1250*1670 | 1200 | 2" | ||||
| 8 | 15 | |||||||||||
| 10 | 13.8 | |||||||||||
| 12 | 12.3 | |||||||||||
| SGPM110 | 110/150 | 7 | 21 | 90 | 72±2 | 2300*1470*1840 | 2000 | DN85 | ||||
| 8 | 19.8 | |||||||||||
| 10 | 17.4 | |||||||||||
| 12 | 14.8 | |||||||||||
| SGPM132 | 132/175 | 7 | 24.5 | 90 | 75±2 | 2300*1470*1840 | 2000 | DN85 | ||||
| 8 | 23.2 | |||||||||||
| 10 | 20.5 | |||||||||||
| 12 | 17.4 | |||||||||||
| SGPM160 | 160/200 | 7 | 28.7 | 110 | 75±2 | 2500*1470*1840 | 3200 | DN85 | ||||
| 8 | 27.6 | |||||||||||
| 10 | 24.6 | |||||||||||
| 12 | 21.5 | |||||||||||
| SGPM185 | 185/250 | 7 | 32 | 110 | 75±2 | 2500*1470*1840 | 3200 | DN85 | ||||
| 8 | 30.4 | |||||||||||
| 10 | 27.4 | |||||||||||
| 12 | 24.8 | |||||||||||
