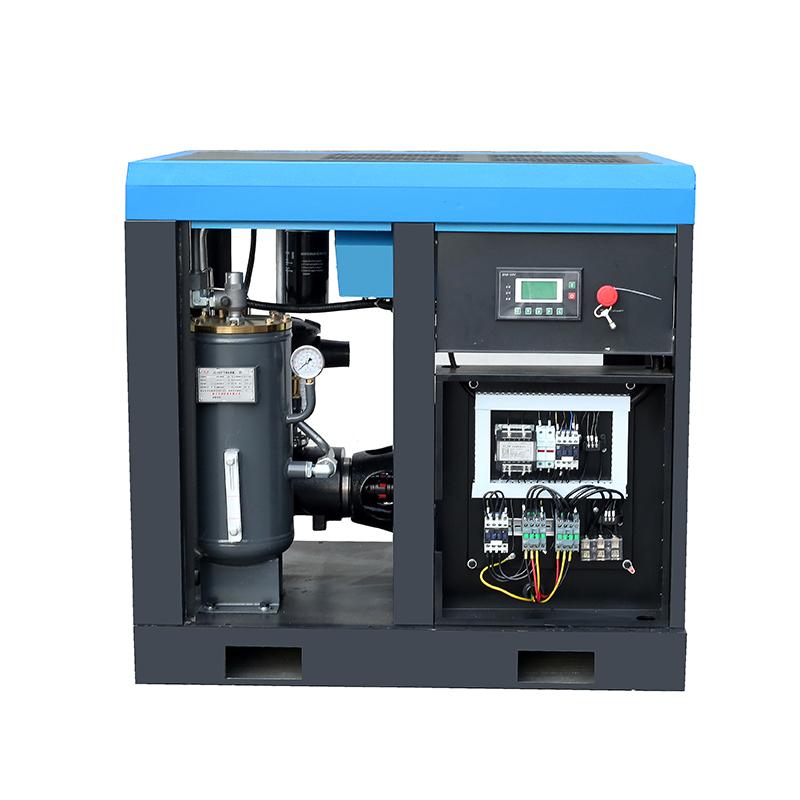

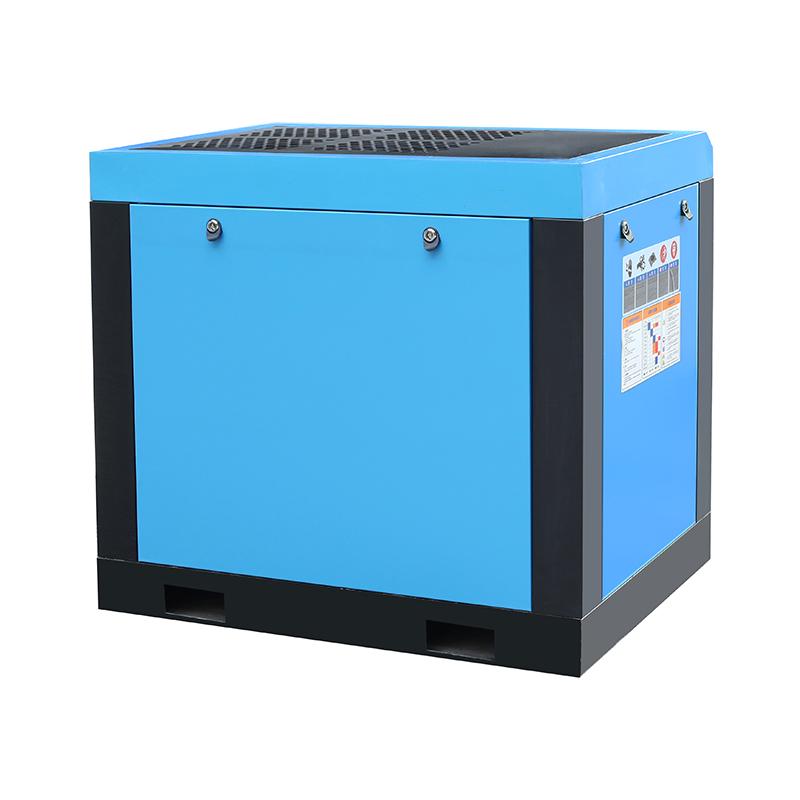

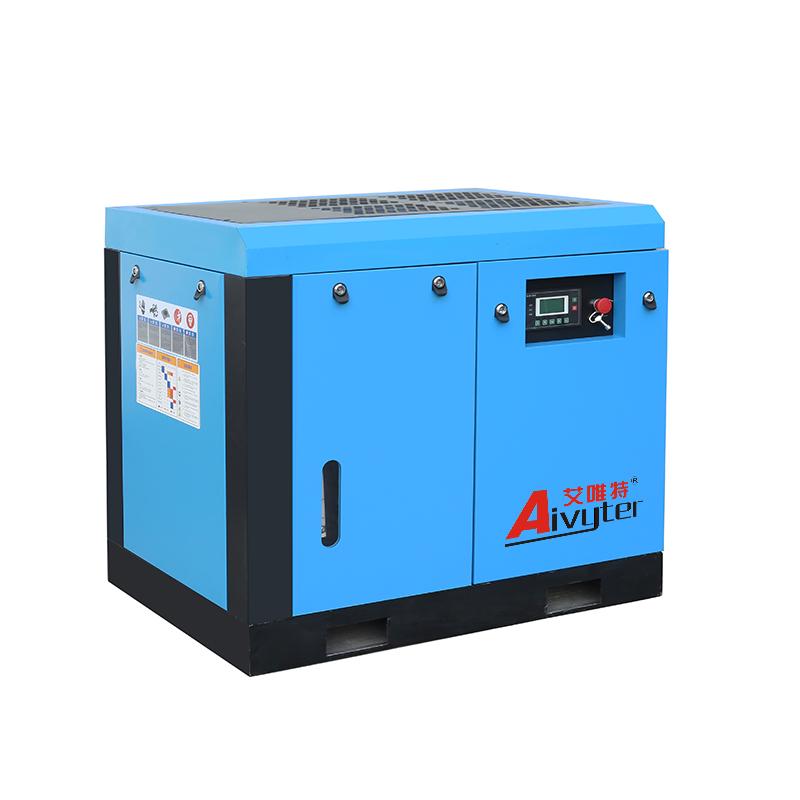

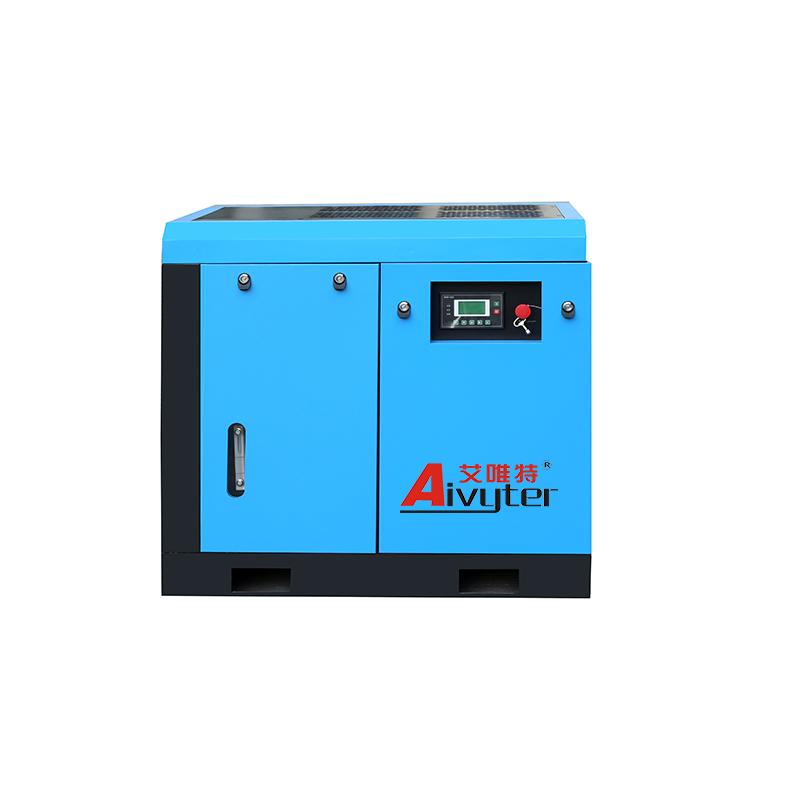

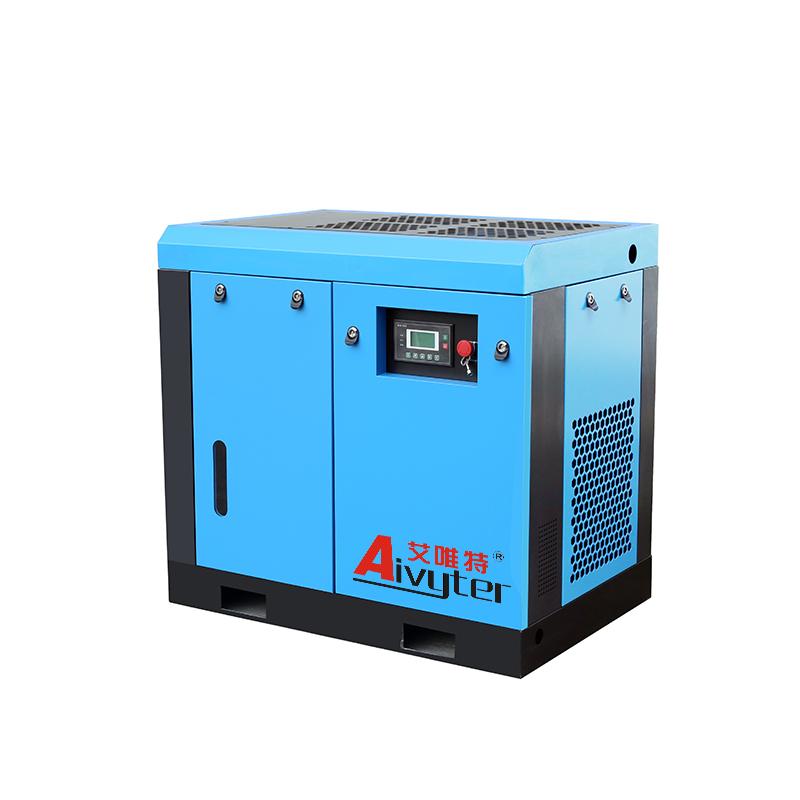

7.5kw 10hp Direct Drive Air Cooling Rotary Screw Air Compressors Machines
Item No.:
SGD 08Payment:
L/C , T/T , D/P , FOB,CIFProduct origin:
chinaColor:
according to your needsGoods_stock:
1000Product weight:
160kgShipping port:
guangzhouLead Time:
7~15 DayHot Sale Cheap Prices 7.5kW 10Hp Quiet Screw Air Compressor
Product Details
aivyter ,tuowei brand of SGD serial direct drive screw air compressor, with CE certificate, using BAOSI brand of air end (OEM orders of GHH and Hanbell brand of air end are also acceptable), with large rotor and SKF bearing, and famous brand of motor in China, more stable and reliable, MAM serial of control panel, easy to operate, the simple and mature structure of air compressor makes failure rate lower, and also easily assembled and regularly maintain. tuowei screw air compressor can work 24hours automatically and continuously without attend.
| Model | SGD08 | Pressure(Mpa) | 0.7 / 0.8 / 1.0 / 1.2 |
| Air Delivery | 1.2/1.1/0.95/0.8 (m³/min) | Power(kW) | 7.5 |
| Lubricant(L) | 10~110 | Driving way | Direct drive |
| Cooling | Air Cooling | Discharge Temperature(℃) | Ambient temperature±15℃ |
| Noise Level | 68±2 (dB(A)) | Drive Method | Frequency conversion starting |
| Electricity(V/Hz) | 380V/50Hz(customizable） | Dimension(mm) | 900*670*850 |
| Weight(kg) | 800 | Air Outlet Pipe Diameter(inch/mm) | G1/2 |
Display Screen
Easy to operate and continuously working for 24 hours unattended, English and Russian languages for choosing, accept OEM.
Control System
Using famous brands, like SIEMENS, Schneider, greatly improve the service life.
Oil filter
Adopting the superior materials, the oil filter shows better filtering function, to compare with others, and which extends the service life time of air end effectively.
Oil separator
With high efficient core of oil/air separating element, ensures the lower oil content in the compressed air (less than 3ppm).
Motor
Well-known brand of high-performance electric motor, SKF bearing, high-class insulation, IP23 standard, IP54 for option.

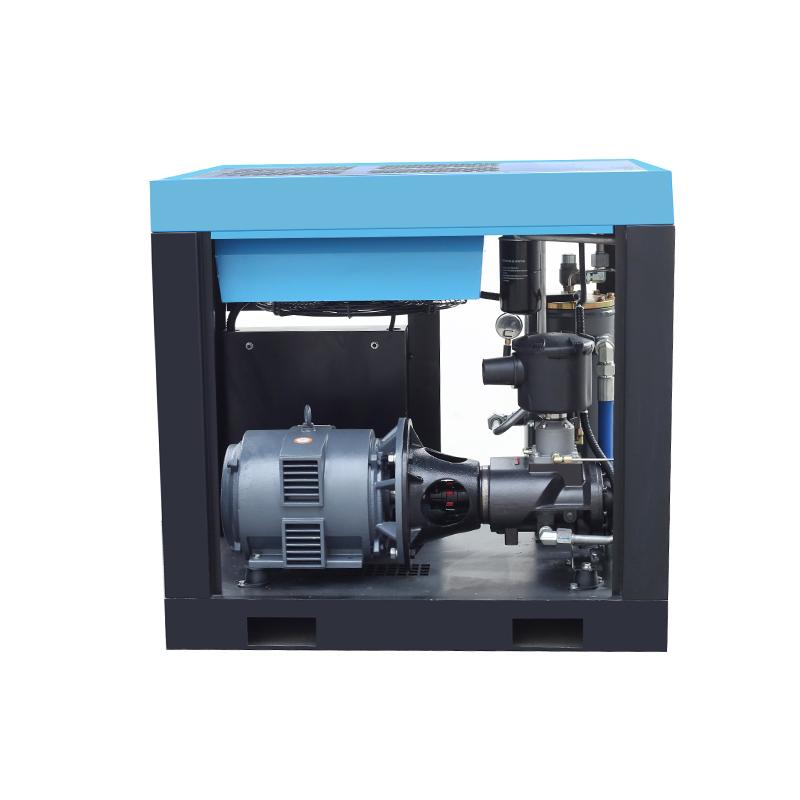

Air end
The technology of air end is original from Europe, and made in China with superior technique, the powerful heart ensures good performance of the whole air compressor.
Company Information
If you want to know our company information, please click Thank you.
FAQ
Q1: What's your lead time?
A1: usually, 5-7 days. (OEM orders: 15days)
Q2: What's the payment term?
A2: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q3: Do you accept customized voltage?
A3: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q4: What is your warranty for air compressor?
A4: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q5: Can you accept OEM orders?
A5: Yes, OEM orders are warmly welcome.
Q6: How about your customer service and after-sales service?
A6: 24hrs on-line support, 48hrs problem solved promise.
Q7: Do you have spare parts in stock?
A7: Yes, we do.
