Air Compressor Parts Oil Filter

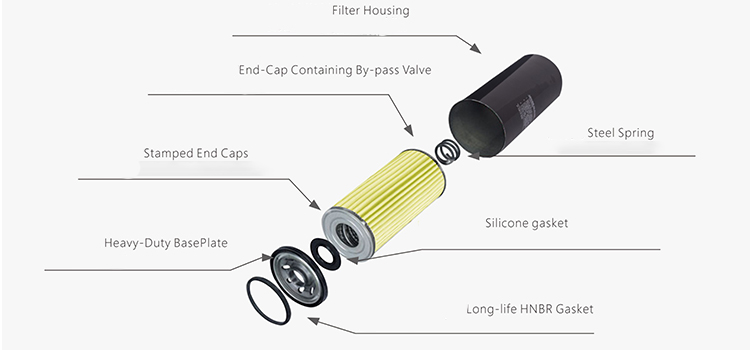

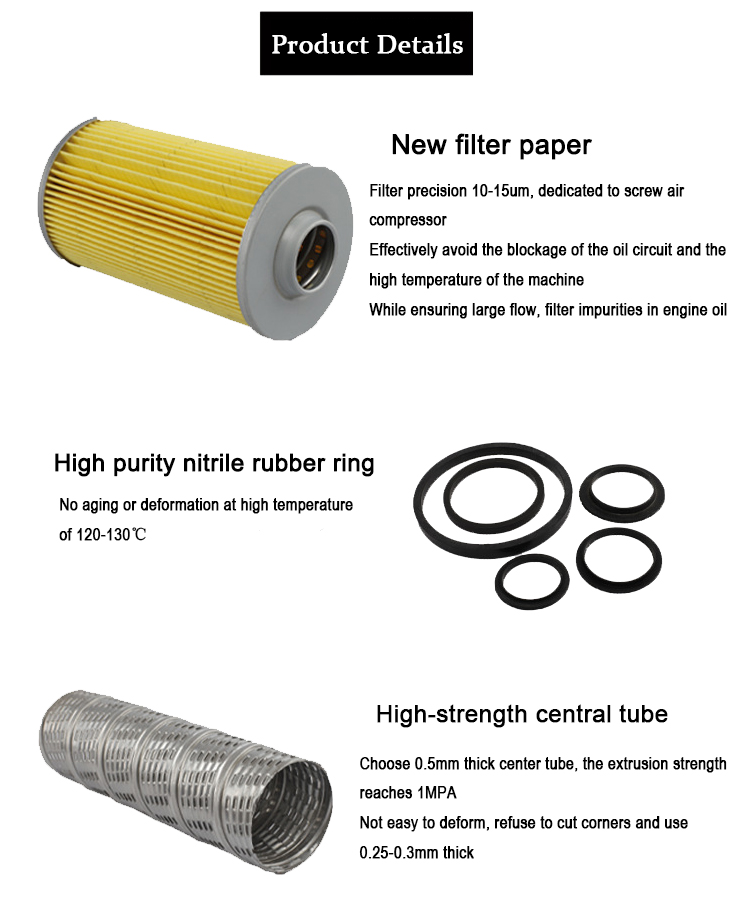

Filter media: filter element adopts many kinds of materials, such as glass fiber, wood pulp filter paper , stainless steel sinter fiber web and stainless steel wire woven. Nominal filtration rating: 0.01μ ~ 1000μ Operating pressure:21bar-210bar (Hydraulic Liquid Filtration) The critical fact for the proper operation of the engine is to keep the lubricating oil clean, or to ensure no corrosive impurity inside the lubrication oil.

Air Oil Separator is a key component that determines the quality of compressed air in screw air compressors. Our Air Oil Separator is made of ultra-fine glass fiber composite filter material, which has high filtration efficiency, long life, high temperature resistance, good oil removal and purification effect, and pressure difference. Low-level features.

High Quality Screw Air Compressor Spare Part Baosi Screw Air End  1. The whole series of rotors are processed by KAPP grinder imported from Germany, with high precision and high efficiency. 2. It can be driven by belt or directly connected, and the application is flexible and convenient. 3. The optimized design of the host structure makes the overall structure more compact and beautiful.

The principle of the compressed air filter of an air compressor: the compressed air passes through the filter element, and some solid particles are blocked by the filter element, so that the content of solid particles in the compressed air is reduced, and part of the water is concentrated and removed when it passes through the filter. The filter filters out impurities and oil in the gas to ensure the cleanliness of the incoming gas. The filter filters out solid dust and liquid moisture and oil droplets through the precise spatial network structure of the filter.

screw compressor Intake Valve with rational, beautiful and environment design. Rigorous treated on noise reduction, opening, closing and sealing.

The PSA nitrogen generator is based on the principle of pressure swing adsorption and uses high-quality carbon molecular sieve as the adsorbent. Under a certain pressure, the purified and dried compressed air is subjected to pressure adsorption and decompression desorption in the adsorber. Nitrogen is enriched in the gas phase to form finished nitrogen. Through the control device to control the opening and closing of the pneumatic valve, the two towers are alternately circulated to achieve the purpose of continuous production of high-quality nitrogen.

PSA is a new type of gas adsorption and separation technology, which has the following advantages: High product purity. It can work at room temperature and common pressure without heating during bed regeneration, which is energy-saving and economical. The equipment is easy to operate and maintain. Continuous cycle work can be fully automated. With 5A zeolite molecular sieve adsorbent, a two-bed PSA device is used to separate oxygen enrichment from the air and separate O2 and N2 in the air to obtain nitrogen. Carbon molecular sieve is a kind of ink-colored particles which are specially processed from coal powder. Its surface is covered with numerous micropores. The principle of air separation depends on the different diffusion speeds of oxygen and nitrogen in the pores of carbon molecular sieve. The diffusion speed of oxygen into the pores of molecular sieve is much faster than the diffusion speed of nitrogen, so that oxygen molecules are adsorbed in the pores of carbon molecular sieve. , And nitrogen molecules are enriched in the gas phase. At the same time, the capacity of carbon molecular sieve to adsorb oxygen increases due to its pressure increase, and decreases due to its pressure drop. In this way, the carbon molecular sieve adsorbs when pressurized, and desorbs the oxygen component under reduced pressure, forming a cycle operation to achieve the purpose of separating air. Referred to as PSA Nitrogen.

The combined screw air compressor is convenient for users to install, use and move. After the air passes through the integrated system, the air quality will be greatly improved to meet the technological requirements of various enterprises.
