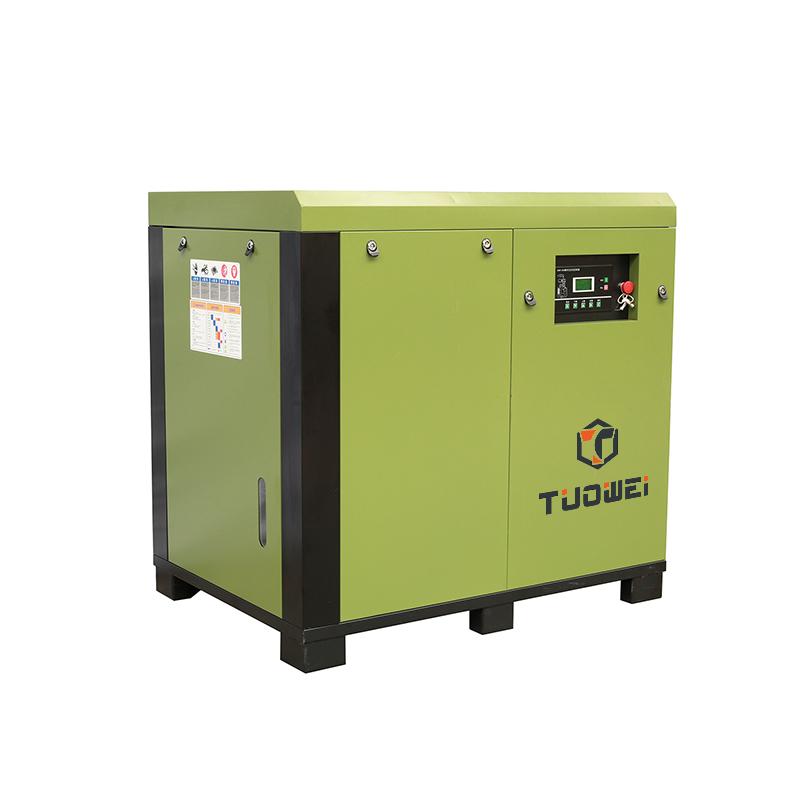

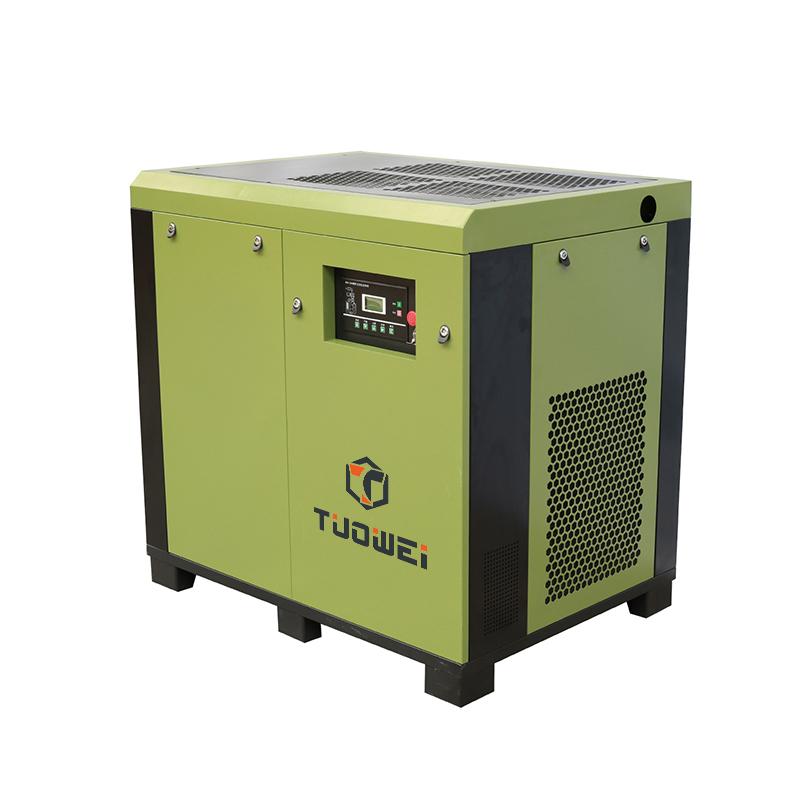

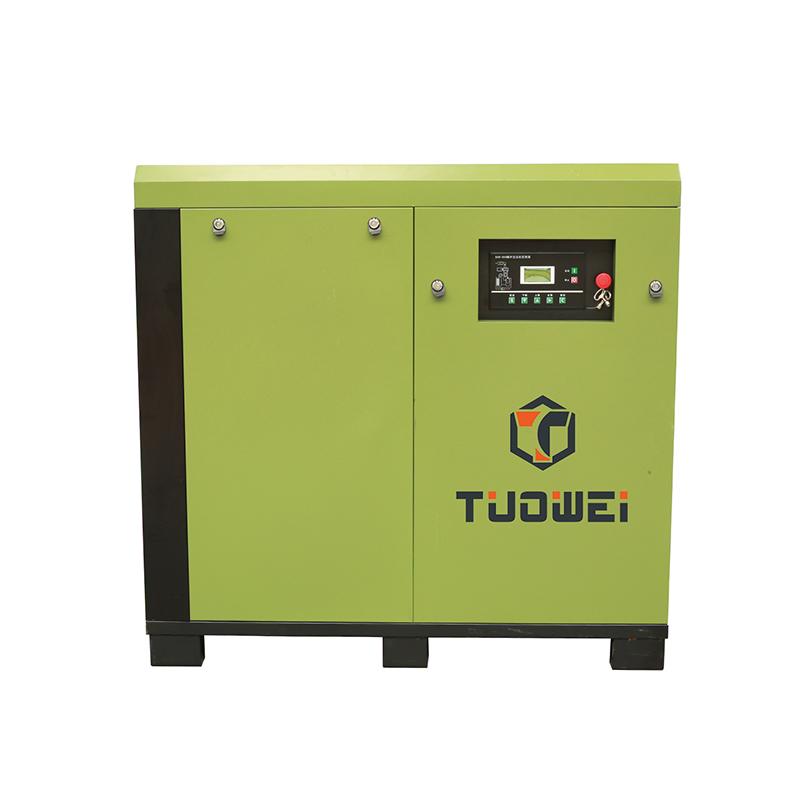

75kw 100hp AC power screw air compressor with a unique design,more safe, more efficient, more energy saving.
Item No.:
SGD 75Payment:
L/C , T/T , D/P , FOB,CIFProduct origin:
chinaColor:
according to your needsGoods_stock:
1000Shipping port:
guangzhouLead Time:
7~15 Day100HP 75KW AC Power Screw Air Compressor Machines
Product Details：

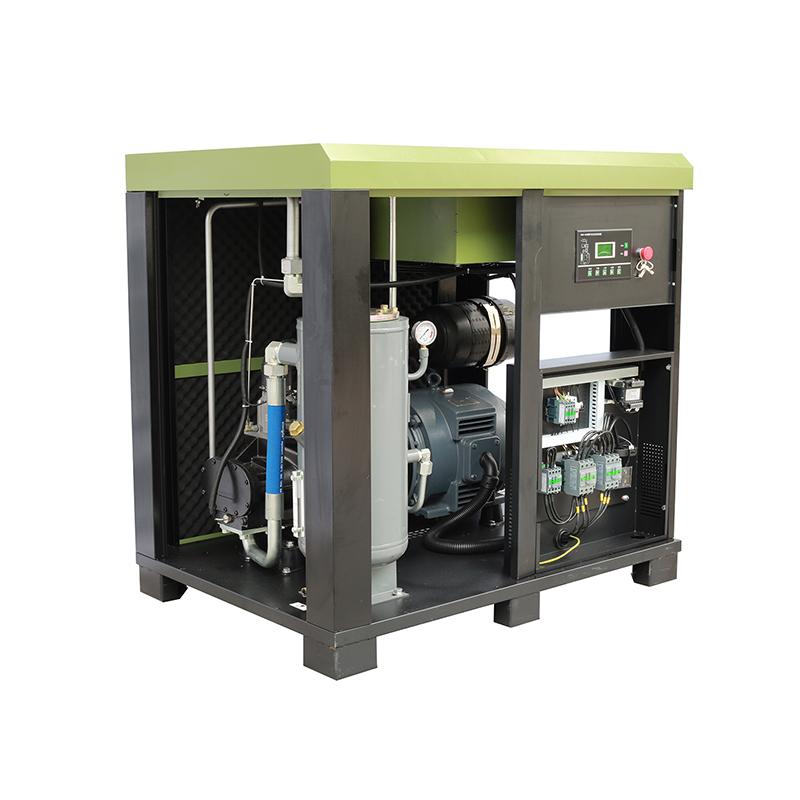

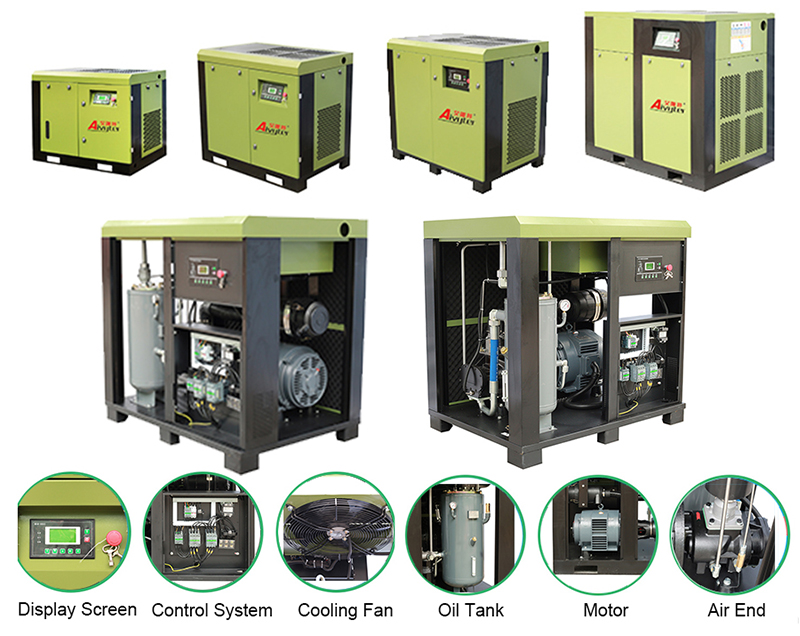

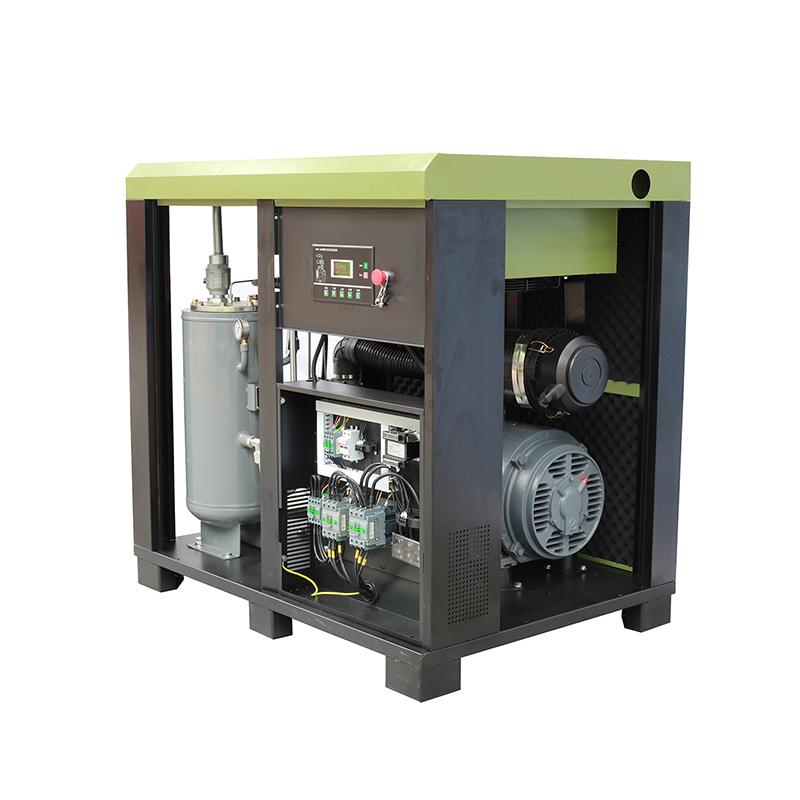

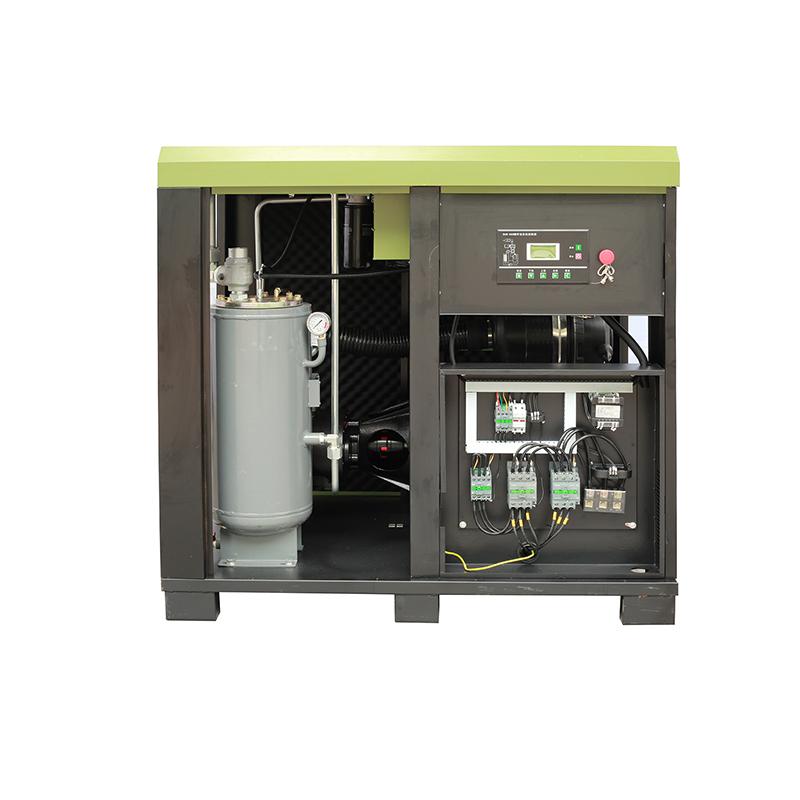

1. High-quality airend, asymmetric 5: 6-tooth rotor, excellent performance and high efficiency.
2. Fully intelligent control system and LCD screen, with self-diagnosis protection device, remote control and multi-host interlocking control, realizing unattended and high-tech operation.
3. It adopts a three-phase asynchronous motor for compressors, imported world-famous bearings, F-class insulation, and IP54, which is especially suitable for long-term use, and is safe and reliable.
4. The oil filter, oil and gas separation filter element, ternary separation, to ensure that the oil content is less than 0.001ppm, the main body adopts metal pipes, and it is safe to run for a long time without oil leakage and deformation.
5. The air volume is automatically and intelligently controlled, and it will automatically stop when idling for a long time, ensuring energy saving of more than 25%.
Product Parameter:
Technical Data of Direct Drive Electric Motor Screw Air Compressors
|
Model |
Working Pressure |
Capacity |
Motor Power |
Driven Method |
Cooling Method |
Dimension(mm) |
Net Weight |
Air Outlet Pipe Diameter |
||||
|
Psi |
bar |
Cfm |
m3/min |
kw/hp |
L |
W |
H |
KGS |
||||
|
SGD08 |
102 |
7 |
42.4 |
1.2 |
7.5/10 |
DirectDrive |
Air Cooling
/
Water Cooling
|
800 |
670 |
850 |
200 |
1/2’’ |
|
116 |
8 |
38.8 |
1.1 |
|||||||||
|
145 |
10 |
33.5 |
0.95 |
|||||||||
|
174 |
12 |
28.3 |
0.8 |
|||||||||
|
SGD11 |
102 |
7 |
58.3 |
1.65 |
11/15 |
1080 |
750 |
1020 |
280 |
3/4’’ |
||
|
116 |
8 |
53.0 |
1.5 |
|||||||||
|
145 |
10 |
45.9 |
1.3 |
|||||||||
|
174 |
12 |
38.8 |
1.1 |
|||||||||
|
SGD15 |
102 |
7 |
88.3 |
2.5 |
15/20 |
1080 |
750 |
1020 |
300 |
3/4’’ |
||
|
116 |
8 |
81.2 |
2.3 |
|||||||||
|
145 |
10 |
74.2 |
2.1 |
|||||||||
|
174 |
12 |
67.1 |
1.9 |
|||||||||
|
SGD18 |
102 |
7 |
113.0 |
3.2 |
18.5/25 |
1380 |
850 |
1185 |
430 |
1’’ |
||
|
116 |
8 |
105.9 |
3.0 |
|||||||||
|
145 |
10 |
95.3 |
2.7 |
|||||||||
|
174 |
12 |
84.7 |
2.4 |
|||||||||
|
SGD22 |
100 |
7 |
134.2 |
3.8 |
22/30 |
1380 |
850 |
1185 |
450 |
1’’ |
||
|
116 |
8 |
127.1 |
3.6 |
|||||||||
|
145 |
10 |
113.0 |
3.2 |
|||||||||
|
174 |
12 |
95.3 |
2.7 |
|||||||||
|
SGD30 |
102 |
7 |
187.1 |
5.3 |
30/40 |
1380 |
850 |
1185 |
500 |
1’’ |
||
|
116 |
8 |
176.6 |
5.0 |
|||||||||
|
145 |
10 |
158.9 |
4.5 |
|||||||||
|
174 |
12 |
141.2 |
4.0 |
|||||||||
|
SGD37 |
102 |
7 |
240.1 |
6.8 |
37/50 |
1500 |
1000 |
1345 |
650 |
11/2" |
||
|
116 |
8 |
218.9 |
6.2 |
|||||||||
|
145 |
10 |
197.7 |
5.6 |
|||||||||
|
174 |
12 |
176.6 |
5.0 |
|||||||||
|
SGD45 |
102 |
7 |
261.3 |
7.4 |
45/60 |
1500 |
1000 |
1345 |
680 |
11/2" |
||
|
116 |
8 |
247.2 |
7.0 |
|||||||||
|
145 |
10 |
218.9 |
6.2 |
|||||||||
|
174 |
12 |
197.7 |
5.6 |
|||||||||
|
SGD55 |
102 |
7 |
353.1 |
10.0 |
55/75 |
1800 |
1250 |
1670 |
1150 |
2" |
||
|
116 |
8 |
339.0 |
9.6 |
|||||||||
|
145 |
10 |
300.1 |
8.5 |
|||||||||
|
174 |
12 |
268.4 |
7.6 |
|||||||||
|
SGD75 |
102 |
7 |
473.2 |
13.4 |
75/100 |
1800 |
1250 |
1670 |
1200 |
2" |
||
|
116 |
8 |
444.9 |
12.6 |
|||||||||
|
145 |
10 |
395.5 |
11.2 |
|||||||||
|
174 |
12 |
353.1 |
10.0 |
|||||||||
|
SGD90 |
102 |
7 |
572.0 |
16.2 |
90/120 |
1800 |
1250 |
1670 |
1350 |
2" |
||
|
116 |
8 |
529.7 |
15.0 |
|||||||||
|
145 |
10 |
487.3 |
13.8 |
|||||||||
|
174 |
12 |
434.3 |
12.3 |
|||||||||
|
SGD110 |
102 |
7 |
741.5 |
21.0 |
110/150 |
2300 |
1470 |
1840 |
1800 |
2 1/2’’ |
||
|
116 |
8 |
699.1 |
19.8 |
|||||||||
|
145 |
10 |
614.4 |
17.4 |
|||||||||
|
174 |
12 |
522.6 |
14.8 |
|||||||||
|
SGD132 |
102 |
7 |
865.1 |
24.5 |
132/175 |
2300 |
1470 |
1840 |
1850 |
2 1/2’’ |
||
|
116 |
8 |
819.2 |
23.2 |
|||||||||
|
145 |
10 |
723.9 |
20.5 |
|||||||||
|
174 |
12 |
614.4 |
17.4 |
|||||||||
|
SGD160 |
102 |
7 |
1013.4 |
28.7 |
160/200 |
2300 |
1470 |
1840 |
2000 |
2 1/2’’ |
||
|
116 |
8 |
974.6 |
27.6 |
|||||||||
|
145 |
10 |
868.6 |
24.6 |
|||||||||
|
174 |
12 |
759.2 |
21.5 |
|||||||||
|
SGD185 |
102 |
7 |
1129.9 |
32.0 |
185/250 |
3150 |
1980 |
2152 |
3500 |
DN85 |
||
|
116 |
8 |
1073.4 |
30.4 |
|||||||||
|
145 |
10 |
967.5 |
27.4 |
|||||||||
|
174 |
12 |
875.7 |
24.8 |
|||||||||
|
SGD220 |
102 |
7 |
1271.2 |
36.0 |
220/300 |
3150 |
1980 |
2152 |
3800 |
DN85 |
||
|
116 |
8 |
1211.1 |
34.3 |
|||||||||
|
145 |
10 |
1066.4 |
30.2 |
|||||||||
|
174 |
12 |
978.1 |
27.7 |
|||||||||
|
SGD250 |
102 |
7 |
1483.0 |
42.0 |
250/350 |
3150 |
1980 |
2152 |
4000 |
DN85 |
||
|
116 |
8 |
1430.1 |
40.5 |
|||||||||
|
145 |
10 |
1348.8 |
38.2 |
|||||||||
|
174 |
12 |
1218.2 |
34.5 |
|||||||||
|
SGD315 |
102 |
7 |
1800.8 |
51.0 |
315/430 |
4000 |
1980 |
2152 |
6000 |
DN110 |
||
|
116 |
8 |
1772.6 |
50.2 |
|||||||||
|
145 |
10 |
1571.3 |
44.5 |
|||||||||
|
174 |
12 |
1412.4 |
40.0 |
|||||||||
|
SGD355 |
102 |
7 |
2259.8 |
64.0 |
355/480 |
4000 |
1980 |
2152 |
6500 |
DN110 |
||
|
116 |
8 |
2153.9 |
61.0 |
|||||||||
|
145 |
10 |
1995.0 |
56.5 |
|||||||||
|
174 |
12 |
1730.2 |
49.0 |
|||||||||
|
Motor Protection Class:IP23/IP54/IP55 or as per your required Voltage: 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph,440V/60Hz/3ph, or as per your requests. |
||||||||||||
Application industry
FAQ
Q1: What is the rotor speed for the air end?
A1: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
