The newly designed 11kw 15hp screw air compressor is safer, more efficient and more energy-saving. The screw air compressor adopts a large air volume heat dissipation structure, which greatly extends the service life of the machine. Parameters such as appearance and color can be customized
Item No.:
SGD 11Payment:
L/C , T/T , D/P , FOB,CIFProduct origin:
chinaGoods_stock:
1000Shipping port:
guangzhouLead Time:

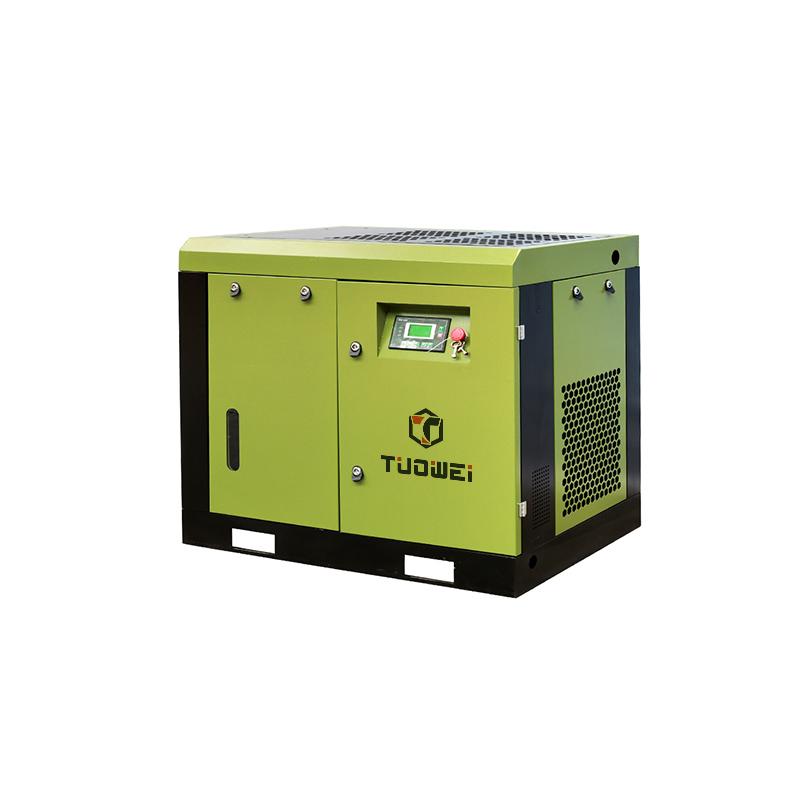

7~15 Day2021 New Design 11kw 15hp Air Screw Compressor
Product Introduction：
| Model | SGD 11 | Discharge Pressure(Mpa) | 0.7 / 0.8 /1.0 /1.2 |
| Air Delivery(m³/min) | 1.65/1.5/1.3/1.1 | Power(kW) | 11 |
| Lubricant(L) | 18 | Drive Method | Variable frequency starting |
| Cooling | Air | Discharge Temperature(℃) | ≤Ambient temperature±15℃ |
| Electricity(V/Hz) | 380V/50Hz(customizable) | Weight(kg) | 520 |
| Dimension(mm) | 1380*850*1185 | Air Outlet Pipe Diameter(inch/mm) | G1'' |
Air inlet valve
World-renowned brands, air input can be automatically adjusted from 0% to 100%, reducing operation cost.
Air end
The technology of air end is original from Europe, and made in China with superior technique, the powerful heart ensures good performance of the whole air compressor.
Air filter
With low flow resistance design and large dust holding capacity to make sure the high purity of inlet air.
Control panel
Easy to operate and continuously working for 24 hours unattended, English and Russian languages for choosing, accept OEM.
Electric control system
Using famous brands, like SIEMENS, Schneider, greatly improve the service life.
Electric motor
Well-known brand of high-performance electric motor, SKF bearing, high-class insulation, IP23 standard, IP54 for option.
Oil separator
With high efficient core of oil/air separating element, ensures the lower oil content in the compressed air (less than 3ppm).
Oil filter
Adopting the superior materials, the oil filter shows better filtering function, to compare with others, and which extends the service life time of air end effectively.
Company Information
FAQ
Q1: What is the rotor speed for the air end?
A2: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
