Air Compressor Equipped 7.5kw Air Cooling Direct Drive Screw Air Compressor with Baosi Air End SKF Brand.
Item No.:
SGD 08Payment:
L/C , T/T , D/P , FOB,CIFProduct origin:
chinaColor:
according to your needsGoods_stock:
1000Product weight:
160kgShipping port:
guangzhouLead Time:
7~15 Day7.5kw 10hp Mini Direct Drive Screw Compressor Price
Product Details
1. Exquisite shape, compact structure and small floor space.
2. Large displacement: The displacement is 10% higher than that of ordinary piston compressors.
3. Energy saving: Compared with the piston air compressor, the energy saving effect is excellent.
4. Safe and reliable, stable operation, low noise, long maintenance cycle and long service life
5. Intelligent control system, easy to operate: 24 hours unattended work all day, no-load automatic start, full load automatic shutdown.
| Model | SGD08 | Pressure(Mpa) | 0.7 / 0.8 / 1.0 / 1.2 |
| Air Delivery | 1.2/1.1/0.95/0.8 (m³/min) | Power(kW) | 7.5 |
| Lubricant(L) | 10~110 | Driving way | Direct drive |
| Cooling | Air Cooling | Discharge Temperature(℃) | Ambient temperature±15℃ |
| Noise Level | 68±2 (dB(A)) | Drive Method | Frequency conversion starting |
| Electricity(V/Hz) | 380V/50Hz(customizable） | Dimension(mm) | 900*670*850 |
| Weight(kg) | 800 | Air Outlet Pipe Diameter(inch/mm) | G1/2 |

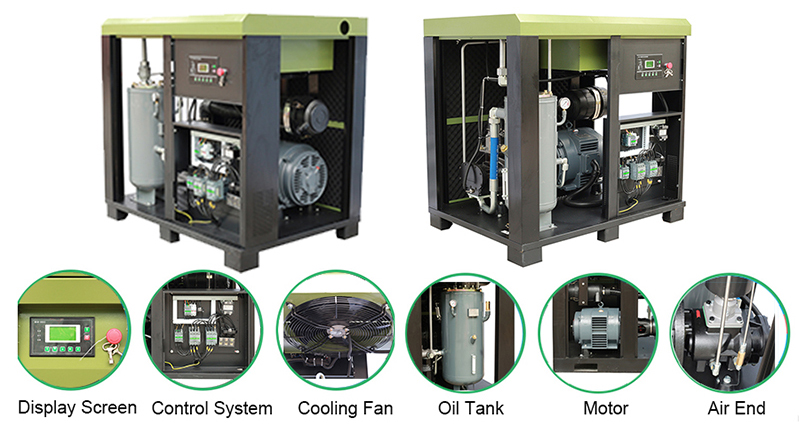

Display Screen
Easy to operate and continuously working for 24 hours unattended, English and Russian languages for choosing, accept OEM.
Control System
Using famous brands, like SIEMENS, Schneider, greatly improve the service life.
Oil filter
Adopting the superior materials, the oil filter shows better filtering function, to compare with others, and which extends the service life time of air end effectively.
Oil separator
With high efficient core of oil/air separating element, ensures the lower oil content in the compressed air (less than 3ppm).

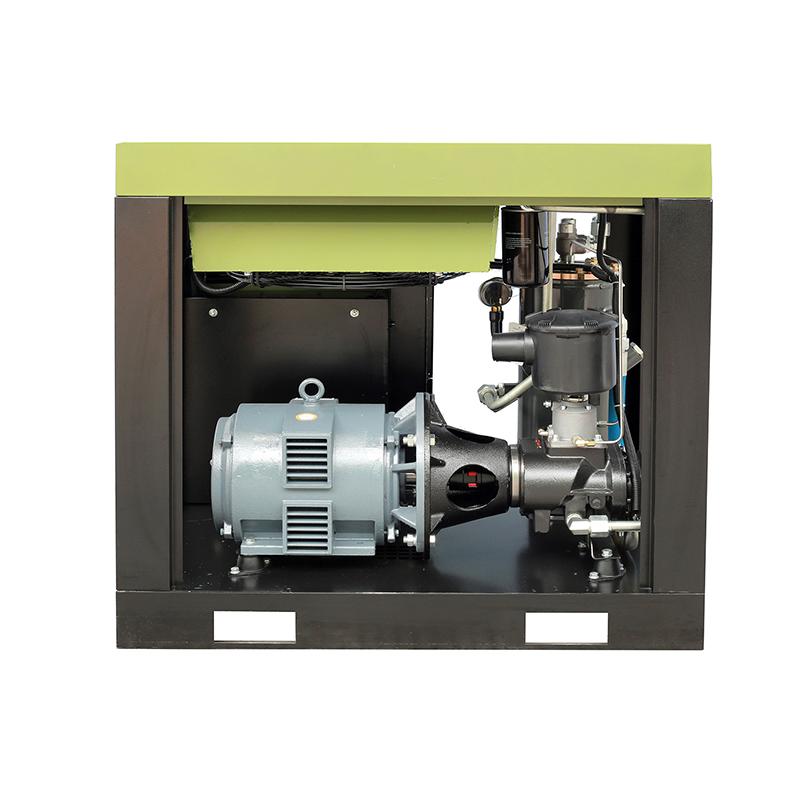

Motor
Well-known brand of high-performance electric motor, SKF bearing, high-class insulation, IP23 standard, IP54 for option.
Air end
The technology of air end is original from Europe, and made in China with superior technique, the powerful heart ensures good performance of the whole air compressor.
Company Information
FAQ
Q1: What is the rotor speed for the air end?
A1: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
